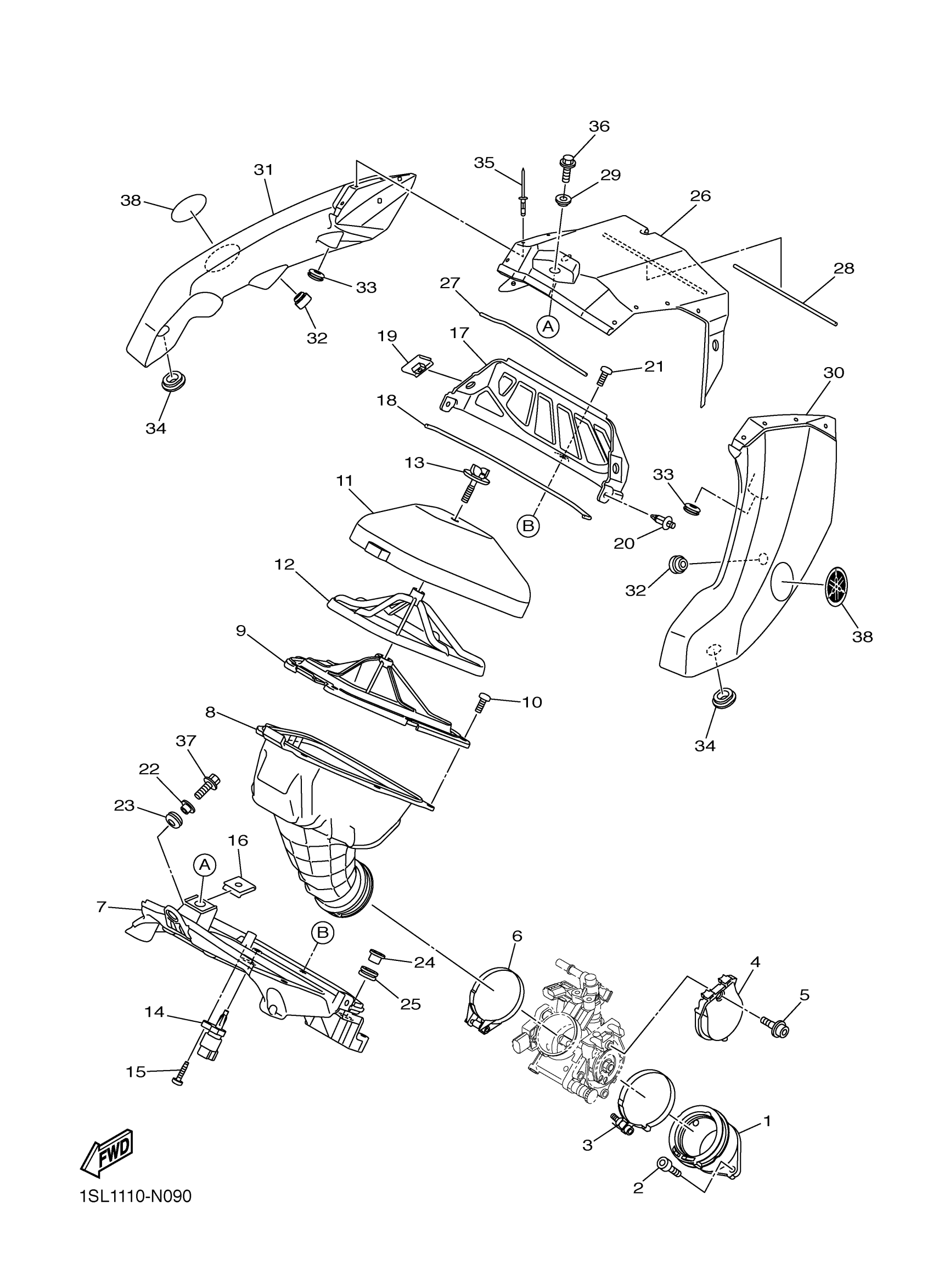

Yamaha YZ450FEW (YZ450F) 1SL10 2014 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 3

33D-13597-10-00

$50.99

2

BOLT,SOCKET HEAD

91314-06020-00

$1.49

3

HOSE CLAMP ASSY

90450-60004-00

$16.99

4

COVER 1

1SL-14293-00-00

$20.99

5

BOLT, HEXAGON SOCKET HEAD

90110-05066-00

$7.49

6

HOSE CLAMP ASSY

90450-58007-00

$17.99

7

CASE, AIR CLEANER 1

1SL-14411-00-00

$69.99

8

JOINT, AIR CLEANER 1

1SL-14453-00-00

$133.99

9

HOLDER, GUIDE

1SL-14459-00-00

$36.99

10

SCREW,PAN HEAD

98502-05014-00

$2.22

11

ELEMENT, AIR CLEANER

1SL-14451-01-00

$42.99

12

GUIDE

1SL-14458-00-00

Unavailable

13

BOLT

1SL-14428-00-00

$14.49

14

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$60.99

15

SCREW, PANHEAD TAPPING

97702-50520-00

$0.43

16

NUT, SPRING

90183-061A0-00

Unavailable

17

CAP, CLEANER CASE 2

1SL-14422-00-00

Unavailable

18

SEAL

1SL-14462-00-00

Unavailable

19

NUT, SPRING

90183-061A0-00

Unavailable

20

RIVET

90269-06008-00

Unavailable

21

SCREW,PAN HEAD

98502-05014-00

$2.22

22

COLLAR(50M)

90387-087L0-00

Unavailable

23

GROMMET (2T4)

90480-12237-00

Unavailable

24

SPACER

1SL-14442-00-00

Unavailable

25

GROMMET

90480-01027-00

Unavailable

26

CAP, CLEANER CASE 1

1SL-14412-00-00

Unavailable

27

SEAL

1SL-14452-00-00

Unavailable

28

SEAL

1SL-14457-00-00

Unavailable

29

COLLAR

90387-07045-00

Unavailable

30

DUCT

1SL-14437-00-00

Unavailable

31

DUCT

1SL-1443A-00-00

Unavailable

32

GROMMET (8M6)

90480-11298-00

Unavailable

33

GROMMET (2T4)

90480-12237-00

Unavailable

34

GROMMET(4DN)

90480-01558-00

Unavailable

35

RIVET, BLIND

90267-41004-00

Unavailable

36

BOLT, FLANGE

90105-06170-00

Unavailable

37

BOLT, FLANGE

90105-06203-00

Unavailable

38

Tuning Fork Mark

1SL-2175C-01-00

Unavailable
