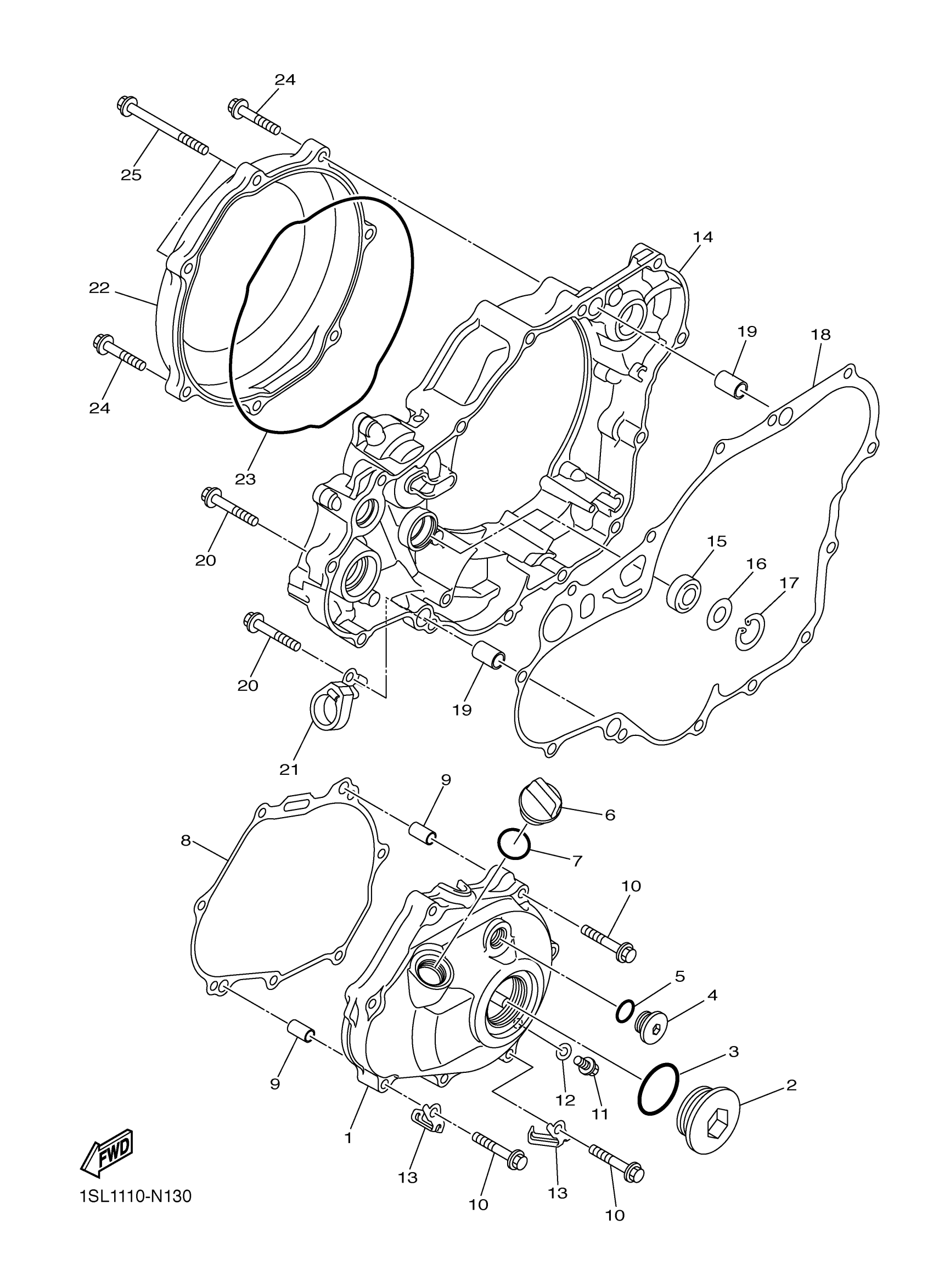

Yamaha YZ450FEW (YZ450F) 1SL10 2014 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1SL-15411-00-00

$154.99

2

PLUG, STRAIGHT SCREW

90340-36002-00

$15.99

3

O-RING

93210-35804-00

$0.48

4

PLUG, STRAIGHT SCREW

90340-14011-00

$22.99

5

O-RING (2H9)

93210-14369-00

$7.49

6

PLUG, OIL

3Y1-15363-10-00

$18.49

7

O-RING (646)

93210-19123-00

Unavailable

8

GASKET, CRANKCASE COVER 1

1SL-15451-00-00

$14.49

9

PIN, DOWEL(3XW)

91808-16023-00

$8.49

10

BOLT, FLANGE

95022-06030-00

$3.72

11

BOLT, FLANGE

95022-06012-00

$3.29

12

GASKET 256113960000

90430-06014-00

Unavailable

13

CLAMP

90465-08062-00

$4.29

14

COVER, CRANKCASE 3

1SL-15431-00-00

Unavailable

15

OIL SEAL(4GY)

93101-14164-00

$11.49

16

WASHER (566)

90201-15701-00

Unavailable

17

CIRCLIP

99009-22500-00

Unavailable

18

GASKET, CRANKCASE COVER 3

1SL-15462-00-00

Unavailable

19

PIN, DOWEL

99530-12016-00

Unavailable

20

BOLT, FLANGE

95022-06030-00

$3.72

21

HOLDER

1SL-15378-00-00

Unavailable

22

COVER, GENERATOR

33D-15415-10-00

Unavailable

23

GASKET

33D-15453-00-00

Unavailable

24

BOLT, FLANGE

95022-06025-00

Unavailable

25

BOLT, FLANGE

95022-06070-00

Unavailable

26

BOTTOM END GASKET KIT

1SL-W0002-00-00

Unavailable
