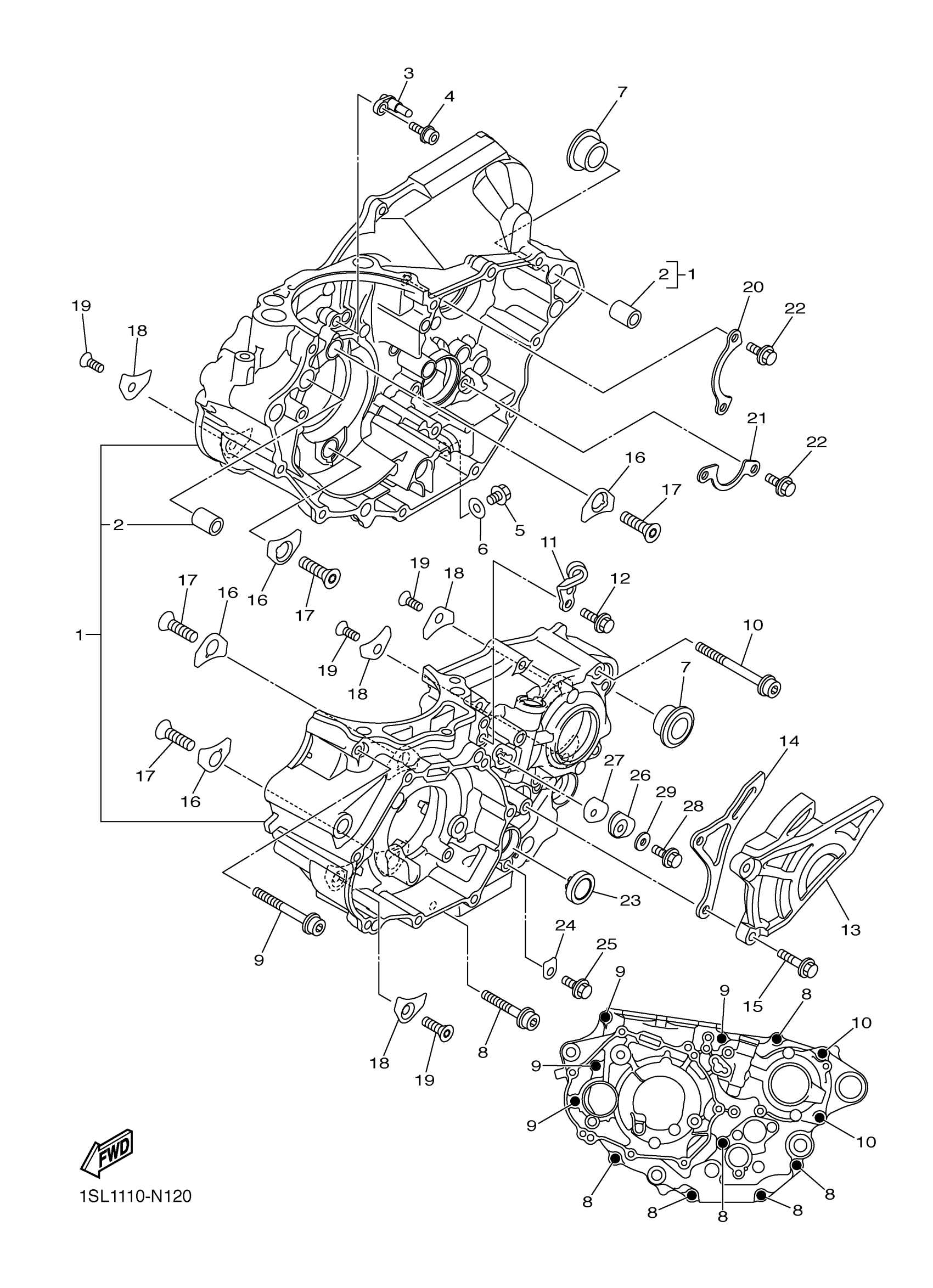

Yamaha YZ450FEW (YZ450F) 1SL10 2014 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

1SL-15100-09-00

Unavailable

2

PIN, DOWEL

99530-14016-00

$3.80

3

NOZZLE 3

1SL-15155-00-00

Unavailable

4

BOLT (33M)

91312-06014-00

$5.60

5

BOLT, FLANGE

95022-10016-00

$8.49

6

GASKET

90430-10188-00

$6.99

7

COLLAR

90387-17015-00

$25.99

8

BOLT, HEXAGON SOCKET HEAD

90110-06391-00

$2.12

9

BOLT, HEXAGON SOCKET HEAD

90110-06363-00

$3.35

10

BOLT, HEXAGON SOCKET HEAD

90110-06392-00

$3.76

11

HOLDER, CLUTCH CABLE

1SL-15441-00-00

$12.99

12

BOLT, FLANGE

90105-06100-00

$7.49

13

COVER, CRANKCASE 2

1SL-15421-00-00

$16.49

14

GUIDE, CHAIN

1SL-17466-00-00

$18.49

15

BOLT, FLANGE

90105-06189-00

$8.49

16

PLATE, BEARING COVER

18P-15383-00-00

Unavailable

17

SCREW, COUNTERSUNK

90151-08003-00

Unavailable

18

PLATE, BEARING COVER

4JT-15381-01-00

Unavailable

19

SCREW, COUNTERSUNK

90151-06052-00

Unavailable

20

PLATE, BEARING COVER

1SL-15388-00-00

Unavailable

21

PLATE, STOPPER 2

1SL-18562-00-00

Unavailable

22

BOLT, FLANGE

95022-06012-00

Unavailable

23

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

24

HOLDER

5XC-15118-00-00

Unavailable

25

BOLT, FLANGE

95022-06010-00

Unavailable

26

PLATE

BR9-13371-00-00

Unavailable

27

GASKET

1SL-13475-00-00

Unavailable

28

BOLT, FLANGE

90105-06203-00

Unavailable

29

GASKET (4V2)

90430-06166-00

Unavailable
