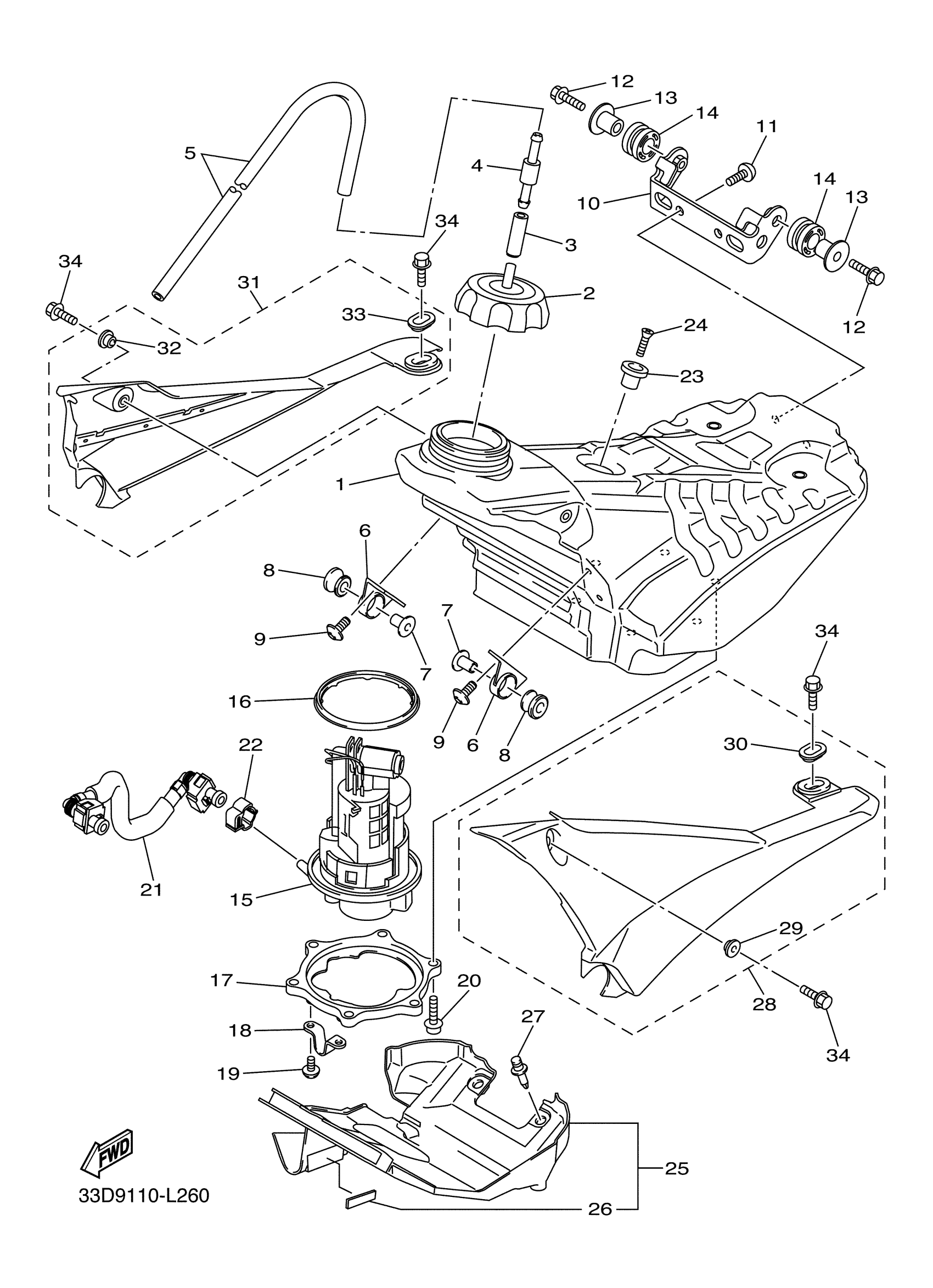

Yamaha YZ450FDW (YZ450F) 33DD0 2013 FUEL TANK Diagram
#
Description
Price
1
FUEL TANK COMP.
33D-24110-50-00
Unavailable
6
HOLDER, DAMPER
33D-24144-00-00
Unavailable
16
O-RING
33D-24486-00-00
Unavailable
17
BRACKET, FUEL PUMP
33D-24491-00-00
Unavailable
18
BRACKET, FUEL TANK 2
33D-24192-00-00
Unavailable
19
SCREW, BINDING
98907-05008-00
Unavailable
20
BOLT, HEXAGON SOCKET HEAD
90110-05058-00
Unavailable
21
PIPE, FUEL 1
33D-13971-01-00
Unavailable
22
CLAMP 1
33D-24135-00-00
Unavailable
23
BRACKET, SEAT
4EW-2412F-00-00
Unavailable
24
SCREW, FLAT HEAD
98702-06025-00
Unavailable
25
COVER
33D-24217-00-00
Unavailable
26
DAMPER
33D-24665-00-00
Unavailable
27
RIVET
90269-07001-00
Unavailable
28
TANK SIDE COVER ASSY 1
33D-24106-50-00
Unavailable
29
COLLAR
90387-06009-00
Unavailable
30
COLLAR
5XC-21749-90-00
Unavailable
31
TANK SIDE COVER ASSY 2
33D-24108-50-00
Unavailable
32
COLLAR
90387-06009-00
Unavailable
33
COLLAR
5XC-21749-90-00
Unavailable
34
BOLT, FLANGE
90105-06064-00
Unavailable
