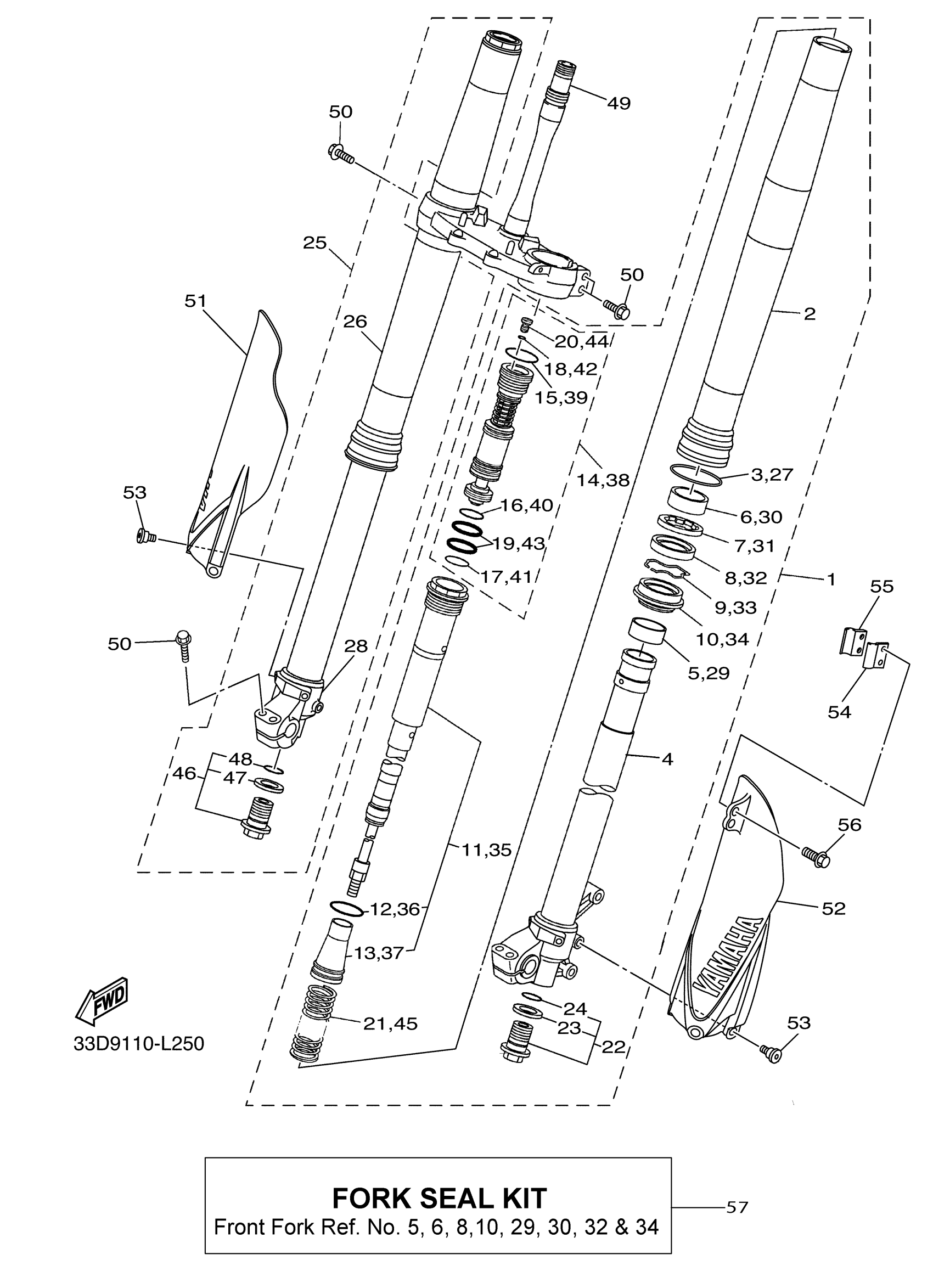

Yamaha YZ450FDW (YZ450F) 33DD0 2013 FRONT FORK Diagram
#
4
INNER TUBE COMP.2
33D-23120-10-00
Unavailable
11
CYLINDER COMP., FRONT FORK
33D-23170-20-00
Unavailable
13
SEAT, SPRING UPPER
1C3-23142-L0-00
Unavailable
14
VALVE COMP.
33D-2316A-20-00
Unavailable
16
O-RING
1C3-23188-N0-00
Unavailable
17
O-RING
1C3-23188-P0-00
Unavailable
18
O-RING
1C3-23188-R1-00
Unavailable
19
O-RING
1W4-23114-L0-00
Unavailable
20
AIR VALVE COMP.
1C3-23190-L1-00
Unavailable
21
SPRING, FRONT FORK
33D-23141-D0-00
Unavailable
22
BOLT, CAP
5XC-23111-01-00
Unavailable
23
GASKET
2HH-23158-L0-00
Unavailable
24
GASKET
276-23114-01-00
Unavailable
25
FRONT FORK ASSY (R.H)
33D-23103-20-00
Unavailable
28
INNER TUBE COMP.1
33D-23110-10-00
Unavailable
35
CYLINDER COMP., FRONT FORK
33D-23170-20-00
Unavailable
37
SEAT, SPRING UPPER
1C3-23142-L0-00
Unavailable
38
VALVE COMP.
33D-2316A-20-00
Unavailable
40
O-RING
1C3-23188-N0-00
Unavailable
41
O-RING
1C3-23188-P0-00
Unavailable
42
O-RING
1C3-23188-R1-00
Unavailable
43
O-RING
1W4-23114-L0-00
Unavailable
44
AIR VALVE COMP.
1C3-23190-L1-00
Unavailable
45
SPRING, FRONT FORK
33D-23141-D0-00
Unavailable
46
BOLT, CAP
5XC-23111-01-00
Unavailable
47
GASKET
2HH-23158-L0-00
Unavailable
48
GASKET
276-23114-01-00
Unavailable
49
UNDER BRACKET COMP.
33D-23340-00-00
Unavailable
50
BOLT, FLANGE
90105-08154-00
Unavailable
51
PROTECTOR 2
17D-2315J-50-00
Unavailable
52
PROTECTOR 1
17D-2315H-50-00
Unavailable
53
BOLT
90109-06232-00
Unavailable
54
CLAMP
17D-23466-00-00
Unavailable
55
CLAMP
17D-23467-00-00
Unavailable
56
BOLT, FLANGE
90105-06170-00
Unavailable
57
FORK SEAL KIT (TWO FORKS)
17D-W003B-00-00
Unavailable
