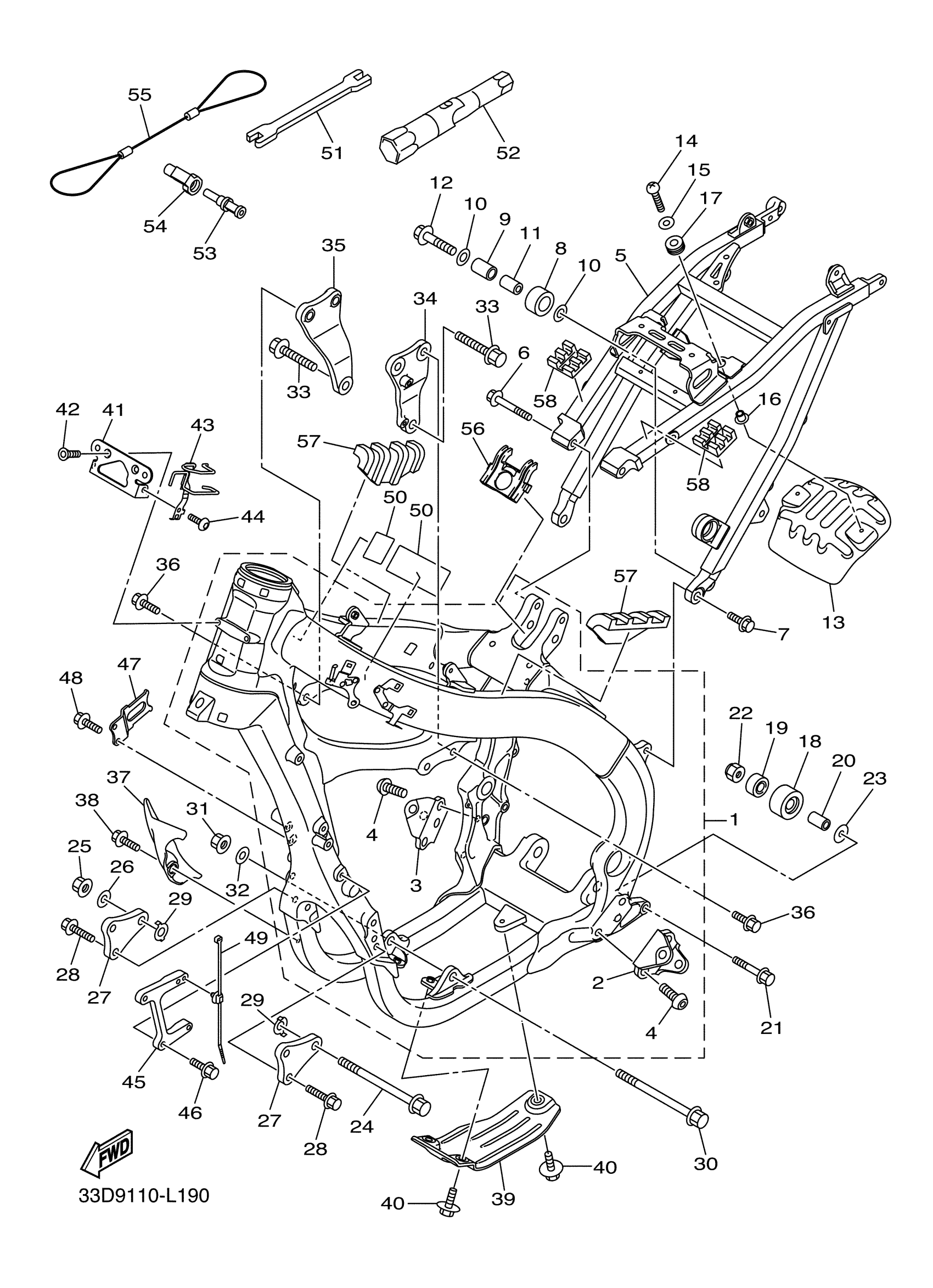

Yamaha YZ450FDW (YZ450F) 33DD0 2013 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

33D-21101-90-00

Unavailable

2

BRACKET, FOOTREST

17D-21447-00-00

$41.99

3

BRACKET, FOOTREST

17D-21448-00-00

$37.99

4

SCREW

90149-10033-00

$5.60

5

REAR FRAME COMP.

33D-21190-00-00

Unavailable

6

BOLT, FLANGE

90105-08231-00

$3.40

7

BOLT, FLANGE

90105-08230-00

$4.29

8

TENSIONER

30X-22178-00-00

$35.99

9

BUSH

4V4-22184-00-00

$4.47

10

WASHER, PLATE

90201-08045-00

$5.60

11

COLLAR

90387-08041-00

$8.49

12

BOLT, FLANGE(4KG)

95024-08040-00

$8.49

13

COVER

33D-2117F-00-00

Unavailable

14

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

15

WASHER, PLATE(75J)

90201-05N15-00

$8.49

16

COLLAR

90387-05003-00

Unavailable

17

GROMMET

90480-12025-00

Unavailable

18

TENSIONER

3JD-22178-20-00

Unavailable

19

BEARING (3X3)

93300-60804-00

Unavailable

20

COLLAR(1NL)

90387-086N4-00

Unavailable

21

BOLT, FLANGE

90105-08232-00

Unavailable

22

NUT, U

95617-08100-00

Unavailable

23

WASHER, PLATE

90201-08043-00

Unavailable

24

BOLT, FLANGE

90105-10193-00

Unavailable

25

NUT(4KG)

90179-10658-00

Unavailable

26

WASHER, PLATE

90201-10045-00

Unavailable

27

BRACKET, FRONT LOWER 1

33D-21417-00-00

Unavailable

28

BOLT, FLANGE

90105-08143-00

Unavailable

29

PLATE, PATCH

5XC-21456-90-00

Unavailable

30

BOLT, FLANGE

90105-10176-00

Unavailable

31

NUT(4KG)

90179-10658-00

Unavailable

32

WASHER, PLATE

90201-10045-00

Unavailable

33

BOLT, FLANGE

90105-10189-00

Unavailable

34

BRACKET, REAR UPPER 1

33D-21425-00-00

Unavailable

35

BRACKET, REAR UPPER 2

33D-21426-00-00

Unavailable

36

BOLT, FLANGE

90105-08226-00

Unavailable

37

PROTECTOR, ENGINE

33D-21471-00-00

Unavailable

38

BOLT, WITH WASHER

90119-06149-00

Unavailable

39

GUARD, ENGINE 2

33D-2147E-01-00

Unavailable

40

BOLT, WITH WASHER

90119-06146-00

Unavailable

41

BRACKET 10

33D-2116M-00-00

Unavailable

42

SCREW, COUNTERSUNK

90151-06034-00

Unavailable

43

HOLDER, CLUTCH CABLE

33D-21163-00-00

Unavailable

44

BOLT, BUTTON HEAD

92012-05010-00

Unavailable

45

STAY, IGNITION COIL

33D-2194U-00-00

Unavailable

46

BOLT, FLANGE

90105-06170-00

Unavailable

47

BRACKET 7

33D-2116J-00-00

Unavailable

48

BOLT, FLANGE

95022-06010-00

Unavailable

49

CLAMP

90464-31002-00

Unavailable

50

SEAL

33D-21268-00-00

Unavailable

51

WRENCH, HEXAGON

5ET-28166-10-00

Unavailable

52

BOX, SPARK PLUG

5TA-2814F-00-00

Unavailable

53

CAP

18P-2467E-00-00

Unavailable

54

CASE, CAP

18P-2464V-01-00

Unavailable

55

WIRE, HOOK

33D-2814A-00-00

Unavailable

56

DAMPER, LOCATING 1

33D-24181-00-00

Unavailable

57

DAMPER, LOCATING 2

33D-24182-00-00

Unavailable

58

DAMPER, LOCATING 3

33D-24183-00-00

Unavailable
