Description

Price

1

GEAR, PRIMARY DRIVE

2S2-16111-60-00

$147.99

2

WASHER (853)

90208-20008-00

$10.49

3

NUT (3R4)

90170-20255-00

$10.49

4

PRIMARY DRIVEN GEAR COMP.

5XD-16150-60-00

$589.99

5

BOSS, CLUTCH

5TA-16371-20-00

$139.99

6

PLATE, PRESSURE 1

2S2-16351-01-00

$91.99

7

PLATE, CLUTCH 1

BR9-16324-10-00

$10.49

8

PLATE, FRICTION

5TA-16321-00-00

$25.99

9

SPRING, COMPRESSION(3GM)

90501-230E4-00

$9.49

10

SCREW, WITH WASHER (583)

90159-06010-00

$8.49

11

PLATE, THRUST 1

5XD-16154-00-00

$15.49

12

WASHER (853)

90208-20008-00

$10.49

13

NUT (3R4)

90170-20255-00

$10.49

14

ROD, PUSH 1

33D-16356-00-00

Unavailable

15

BEARING, THRUST(2FL)

93340-21209-00

$16.99

16

CIRCLIP (4G0)

93440-10085-00

Unavailable

17

BALL (498)

93511-32027-00

Unavailable

18

ROD, PUSH 2

2S2-16357-01-00

Unavailable

19

PUSH LEVER COMP.

33D-16381-10-00

Unavailable

20

BEARING

93317-11287-00

Unavailable

21

OIL SEAL (4G0)

93102-12224-00

Unavailable

22

CIRCLIP(1EV)

99009-20500-00

Unavailable

23

CLUTCH PLATE KIT

33D-W001G-10-00

Unavailable

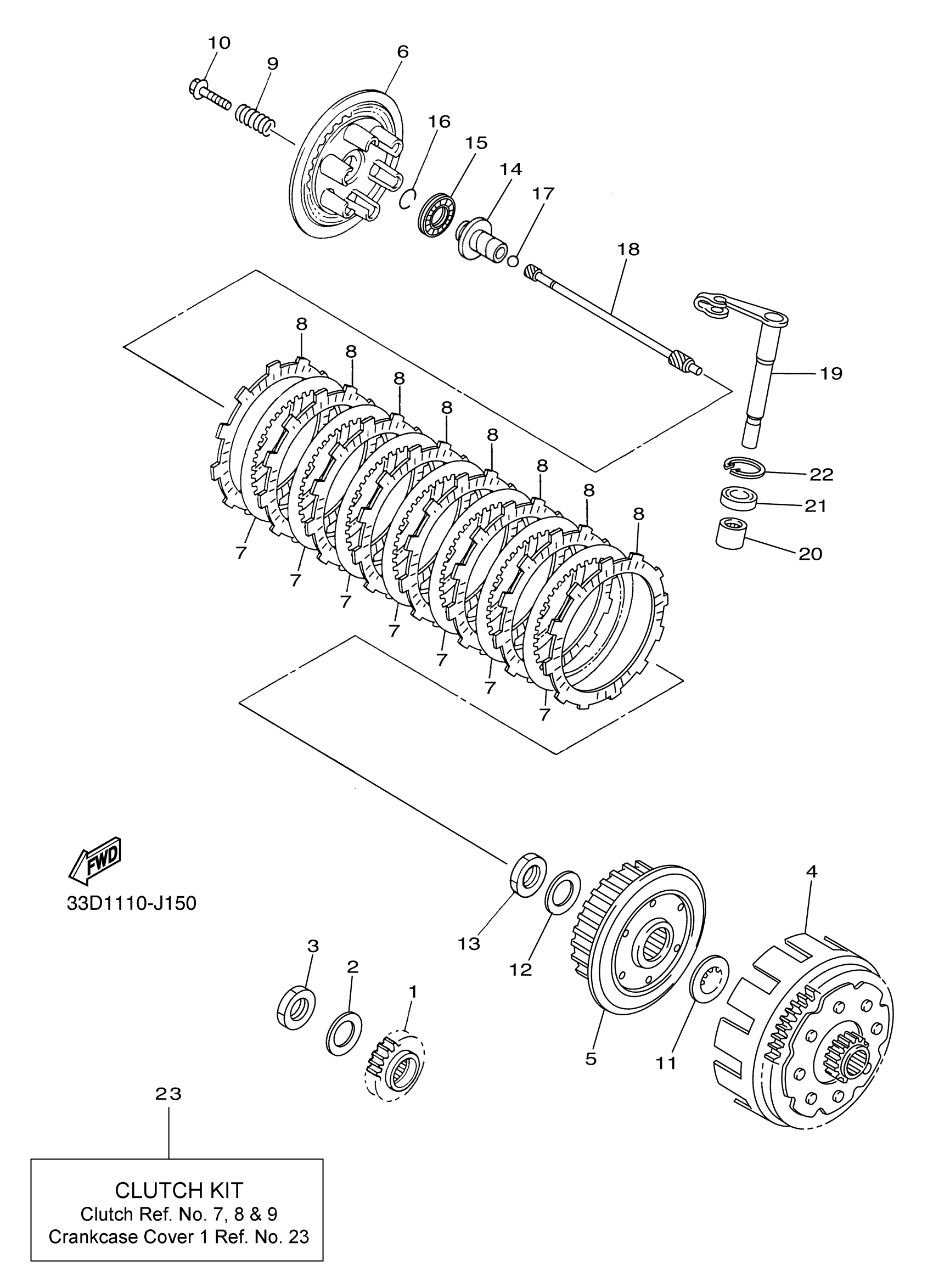

Yamaha YZ450FDW (YZ450F) 33DD0 2013 CLUTCH Diagram

GEAR, PRIMARY DRIVE

WASHER (853)

NUT (3R4)

PRIMARY DRIVEN GEAR COMP.

BOSS, CLUTCH

PLATE, PRESSURE 1

PLATE, CLUTCH 1

PLATE, FRICTION

SPRING, COMPRESSION(3GM)

SCREW, WITH WASHER (583)

PLATE, THRUST 1

WASHER (853)

NUT (3R4)

ROD, PUSH 1

BEARING, THRUST(2FL)

CIRCLIP (4G0)

BALL (498)

ROD, PUSH 2

PUSH LEVER COMP.

BEARING

OIL SEAL (4G0)

CIRCLIP(1EV)

CLUTCH PLATE KIT
