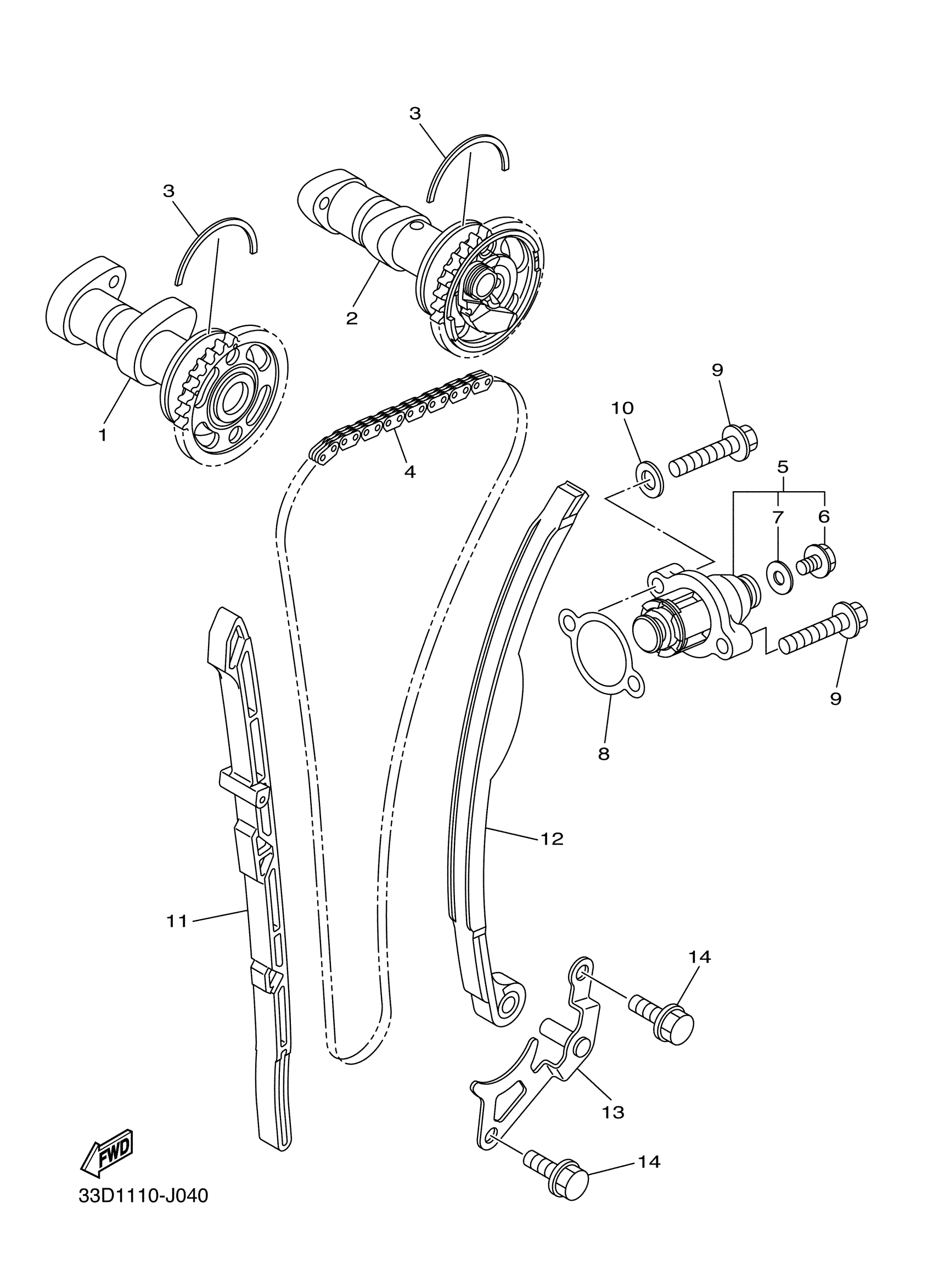

Yamaha YZ450FDW (YZ450F) 33DD0 2013 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

33D-12170-00-00

$280.40

2

CAMSHAFT ASSY 2

33D-12180-00-00

$271.52

3

CIRCLIP

93440-41178-00

$3.27

4

CHAIN

94591-57122-00

$31.15

5

TENSIONER ASSY, CAM CHAIN

5TA-12210-30-00

$107.72

6

BOLT

5EL-12228-00-00

$2.52

7

GASKET

5EL-12214-00-00

$5.99

8

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

9

BOLT, FLANGE

95022-06025-00

$1.37

10

GASKET 256113960000

90430-06014-00

Unavailable

11

DAMPER, CHAIN 1

33D-12251-00-00

$28.87

12

DAMPER, CHAIN 2

33D-12252-01-00

Unavailable

13

PLATE, GUIDE STOPPER 1

33D-12233-00-00

$35.40

14

BOLT, FLANGE

90105-06100-00

$5.20
