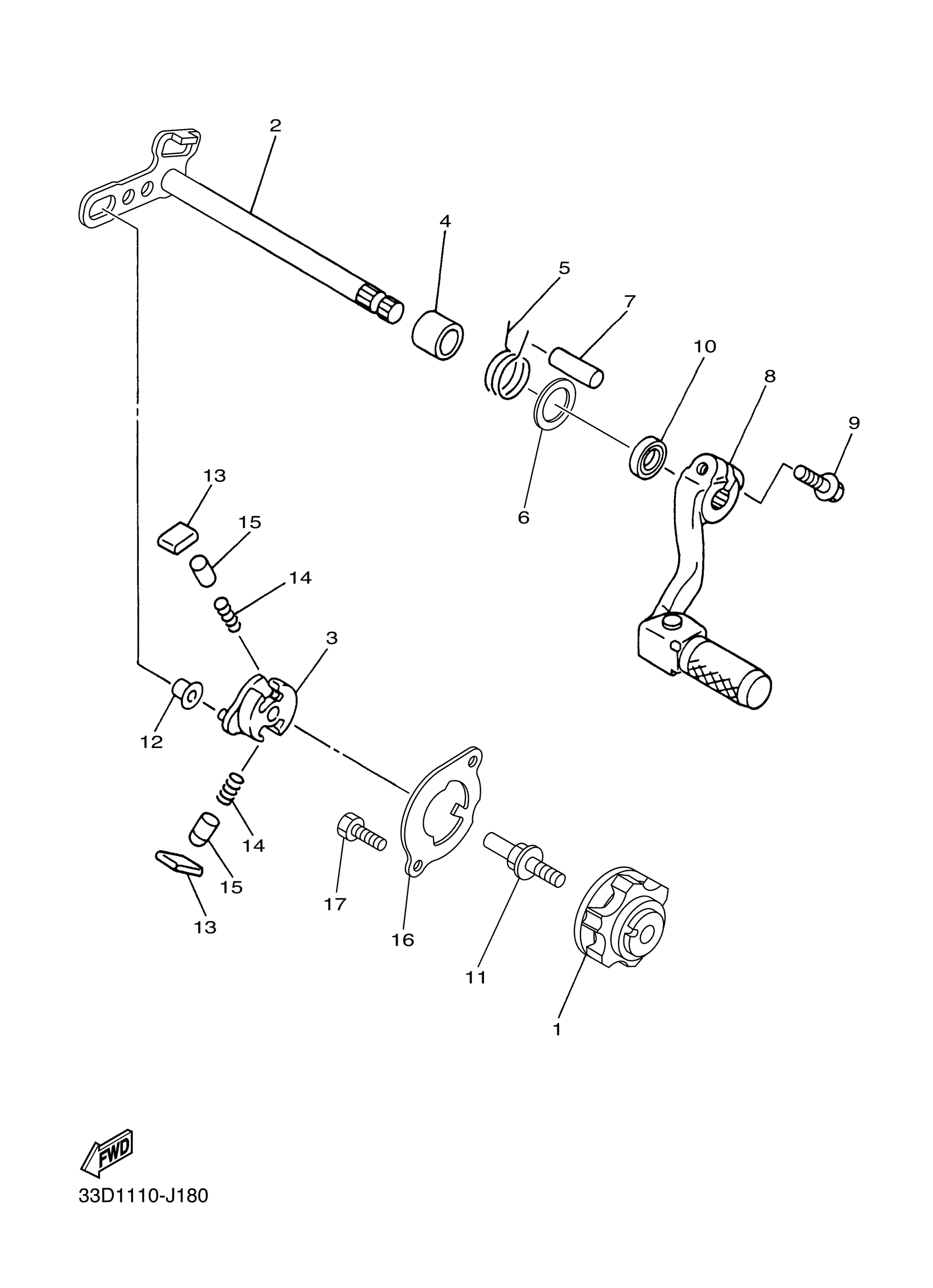

Yamaha YZ450FBW (YZ450FB) 33D90 2012 SHIFT SHAFT Diagram

#

Description
Price

1

SEGMENT

1C3-18185-00-00

$66.99

2

SHIFT SHAFT ASSY

33D-18101-00-00

Unavailable

3

LEVER, SHIFT 2

18P-18122-00-00

$141.99

4

COLLAR

90387-12033-00

$7.49

5

SPRING, TORSION

90508-29021-00

$9.49

6

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

7

PIN, DOWEL

93608-33002-00

$15.99

8

SHIFT PEDAL ASSY

2S2-18110-00-00

Unavailable

9

BOLT, FLANGE

90105-06127-00

$8.49

10

OIL SEAL (4G0)

93102-12224-00

$10.49

11

PIN, SHIFT

3XJ-18173-10-00

$19.99

12

ROLLER, SHIFT LEVER

3XJ-18178-00-00

$13.49

13

PAWL, SHIFTER

3XJ-18182-00-00

$15.49

14

SPRING, COMPRESSION(3XJ)

90501-052G5-00

$8.49

15

PIN, PAWL

3XJ-18184-00-00

$15.49

16

GUIDE, SHIFT

5TJ-18172-00-00

Unavailable

17

BOLT

90101-06042-00

Unavailable
