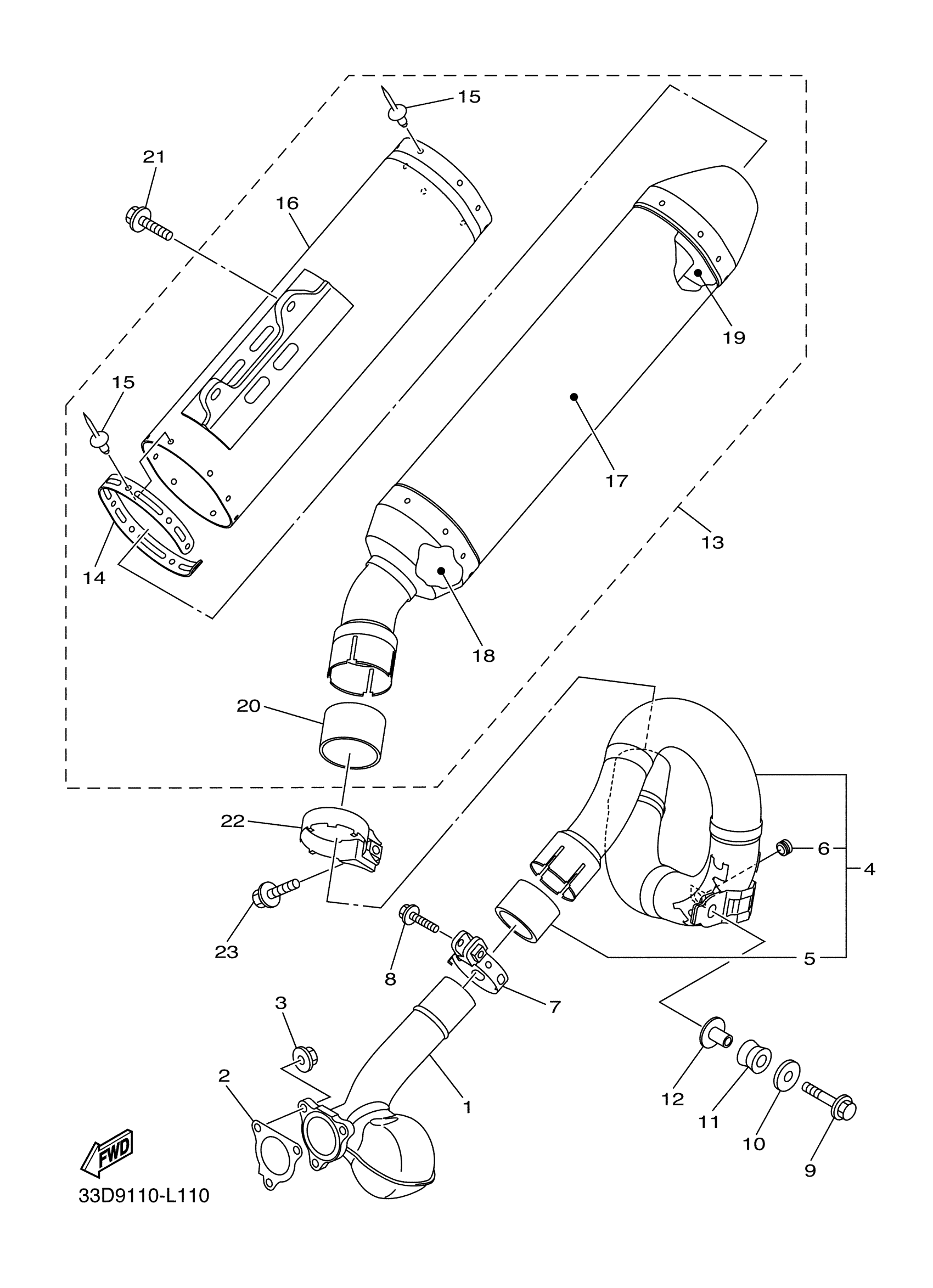

Yamaha YZ450FBW (YZ450FB) 33D90 2012 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

33D-14611-00-00

Unavailable

2

GASKET, EXHAUST PIPE

33D-14613-00-00

$7.99

3

NUT, FLANGE(7NB)

95780-06500-00

$2.60

4

EXHAUST PIPE ASSY 2

33D-14620-01-00

Unavailable

5

GASKET, MUFFLER

5PH-14714-00-00

$43.99

6

DAMPER, MUFFLER

2D1-14737-01-00

Unavailable

7

BAND, SILENCER

33D-14788-00-00

$36.99

8

BOLT, FLANGE(3EF)

95024-08035-00

$8.49

9

BOLT, FLANGE

90105-08137-00

$5.60

10

WASHER, PLATE

90201-08061-00

$8.49

11

DAMPER, MUFFLER

5VY-14747-00-00

$14.49

12

COLLAR

90387-08081-00

$8.49

13

SILENCER ASSY

33D-14750-10-00

$675.99

14

REINF. ,3

33D-1476F-10-00

Unavailable

15

. RIVET, BLIND

90267-48084-00

Unavailable

16

BODY, SILENCER

33D-1466G-10-00

Unavailable

17

FIBER

2S2-1469A-10-00

Unavailable

18

FIBER

2S2-1469E-00-00

Unavailable

19

FIBER

2S2-1469F-00-00

Unavailable

20

GASKET, MUFFLER

8GL-14714-00-00

Unavailable

21

BOLT, WITH WASHER

90119-08133-00

Unavailable

22

BAND, SILENCER

8GL-14789-00-00

Unavailable

23

BOLT, FLANGE(4GY)

95024-08025-00

Unavailable
