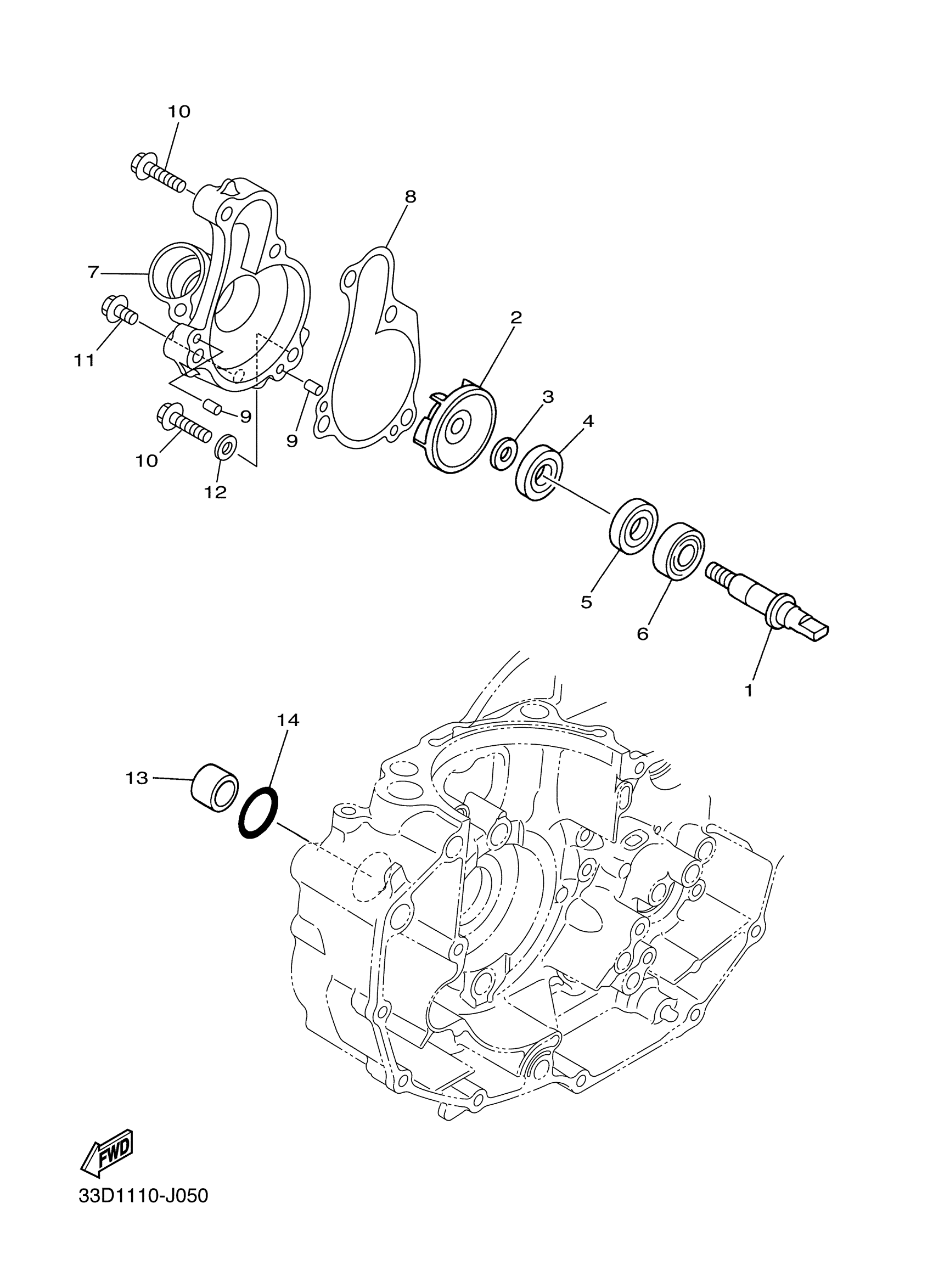

Yamaha YZ450FAL (YZ450F) 33D50 2011 WATER PUMP Diagram

#

Description
Price

1

SHAFT, IMPELLER

5GR-12458-00-00

$71.55

2

IMPELLER, WATER PUMP

5DJ-12451-00-00

$72.61

3

WASHER, PLATE (5F7)

90201-08512-00

$5.75

4

OIL SEAL

93109-11073-00

$9.00

5

OIL SEAL (12X22X5-371)

93102-12106-00

$9.45

6

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$23.71

7

COVER, HOUSING

33D-12422-00-00

$81.50

8

GASKET, HOUSING COVER 1

33D-12427-00-00

$5.96

9

PIN,DOWEL (603)

93604-10011-00

$4.89

10

BOLT, FLANGE

95022-06025-00

$1.37

11

BOLT, FLANGE

95022-06010-00

$5.08

12

GASKET 256113960000

90430-06014-00

Unavailable

13

PIPE, WATER

5BE-12564-00-00

$8.13

14

O-RING(M01)

93210-19758-00

$5.31
