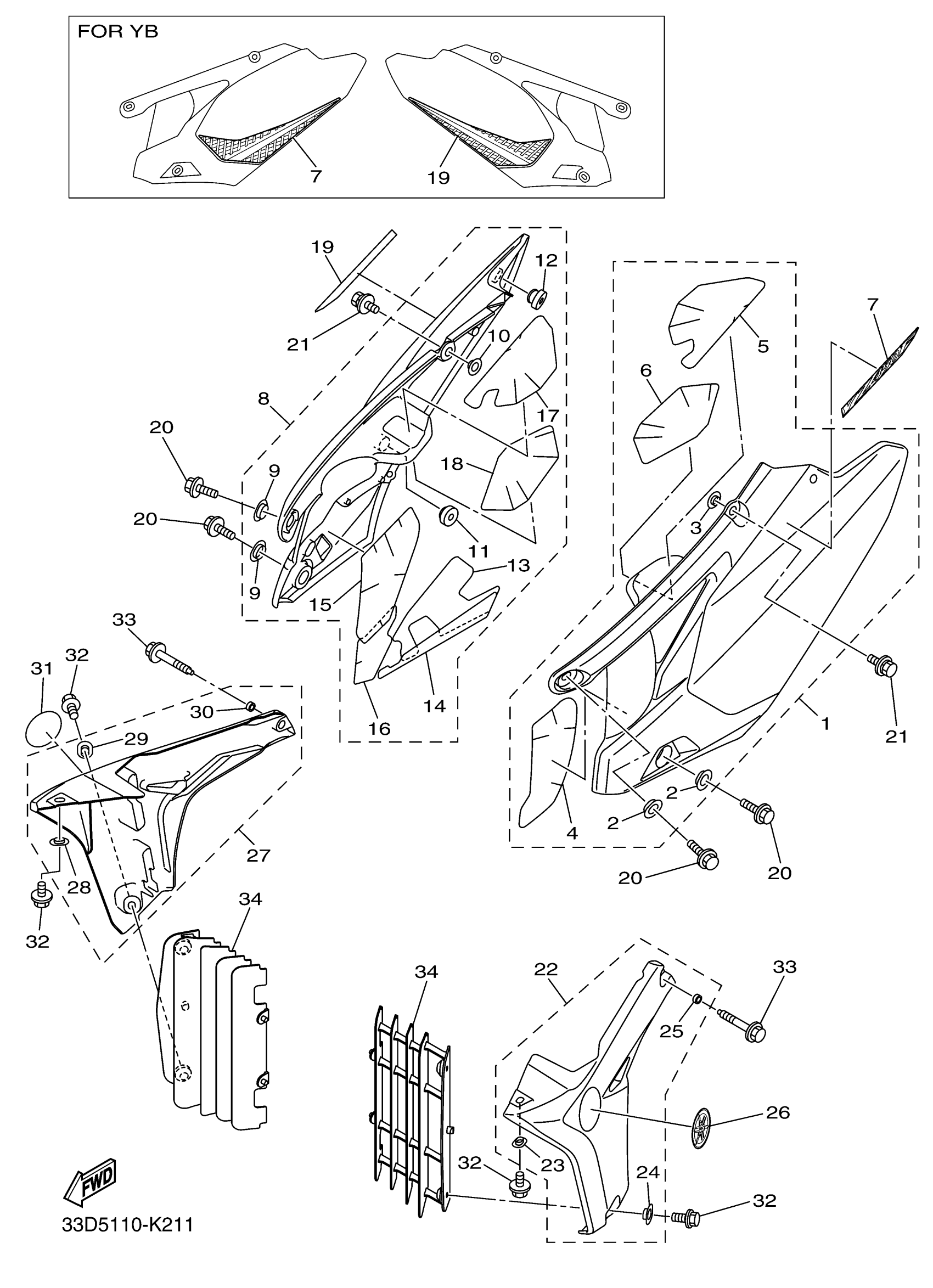

Yamaha YZ450FAL (YZ450F) 33D50 2011 SIDE COVER Diagram
#
Description
Price
1
SIDE COVER ASSY 1
33D-21710-01-00
Unavailable
5
SEAT
33D-2172P-00-00
Unavailable
7
GRAPHIC, 3
33D-2174G-10-00
Unavailable
8
SIDE COVER ASSY 2
33D-21720-01-00
Unavailable
12
GROMMET
33D-21719-00-00
Unavailable
13
INSULATOR, SIDE COVER
33D-2174A-00-00
Unavailable
15
INSULATOR 4
33D-2173S-00-00
Unavailable
16
INSULATOR 5
33D-2174S-00-00
Unavailable
17
SEAT 2
33D-2173P-00-00
Unavailable
18
SEAT 4
33D-2175P-00-00
Unavailable
19
GRAPHIC, 4 (YAMAHA BLACK)
33D-2174H-10-00
Unavailable
20
BOLT, FLANGE
90105-06170-00
Unavailable
21
BOLT, WITH WASHER
90119-08095-00
Unavailable
22
SIDE COVER ASSY 3
33D-21730-51-00
Unavailable
23
COLLAR
5PA-21748-00-00
Unavailable
25
COLLAR
90387-06113-00
Unavailable
26
EMBLEM
5PW-2413B-00-00
Unavailable
27
SIDE COVER ASSY 4
33D-21740-51-00
Unavailable
28
COLLAR
5PA-21748-00-00
Unavailable
30
COLLAR
90387-06113-00
Unavailable
31
EMBLEM
5PW-2413B-00-00
Unavailable
32
BOLT, FLANGE
90105-06064-00
Unavailable
33
BOLT, FLANGE
90105-06179-00
Unavailable
34
PANEL 1
33D-2172A-00-00
Unavailable
