Description

Price

1

RR. MASTER CYLINDER ASSY.

33D-2583V-00-00

$271.99

2

CYLINDER KIT, MASTER

5UN-W0042-50-00

$89.99

3

NUT

5UN-27218-00-00

$4.89

4

JOINT

5UN-27222-00-00

$17.49

5

CAP, RESERVOIR

5UN-25852-50-00

$17.49

6

PLATE, DIAPHRAGM

5UN-2585B-00-00

$7.99

7

DIAPHRAGM, RESERVOIR

5UN-25854-00-00

$14.49

8

BOLT

5UN-27217-00-00

$5.49

9

SEPARATOR ASSY

5CG-25715-00-00

$13.49

10

CIRCLIP

5CG-2585G-00-00

$5.49

11

BOLT,HEX. SOCKET BUTTON

90111-06116-00

$7.49

12

HOSE, BRAKE 2

5XC-25873-L2-00

$69.99

13

BOLT, UNION

90401-10172-00

$5.60

14

GASKET

90430-10005-00

$9.49

15

HOLDER, BRAKE HOSE

1C3-25886-50-00

$14.49

16

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

17

HOLDER, BRAKE HOSE 2

1C3-25876-50-00

Unavailable

18

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

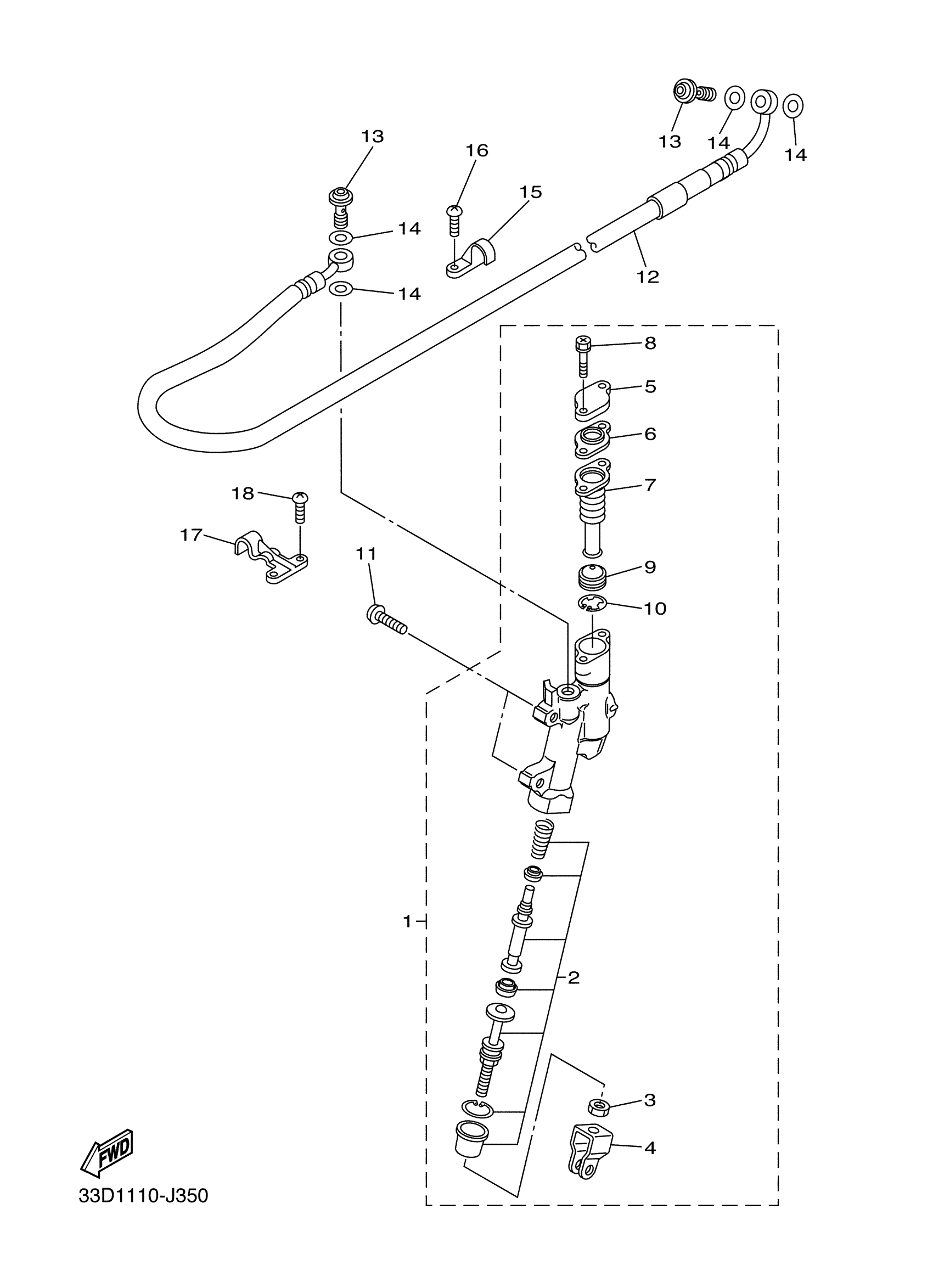

Yamaha YZ450FAL (YZ450F) 33D50 2011 REAR MASTER CYLINDER Diagram

RR. MASTER CYLINDER ASSY.

CYLINDER KIT, MASTER

NUT

JOINT

CAP, RESERVOIR

PLATE, DIAPHRAGM

DIAPHRAGM, RESERVOIR

BOLT

SEPARATOR ASSY

CIRCLIP

BOLT,HEX. SOCKET BUTTON

HOSE, BRAKE 2

BOLT, UNION

GASKET

HOLDER, BRAKE HOSE

SCREW, PAN HEAD(3LA)

HOLDER, BRAKE HOSE 2

SCREW, PAN HEAD(3LA)
