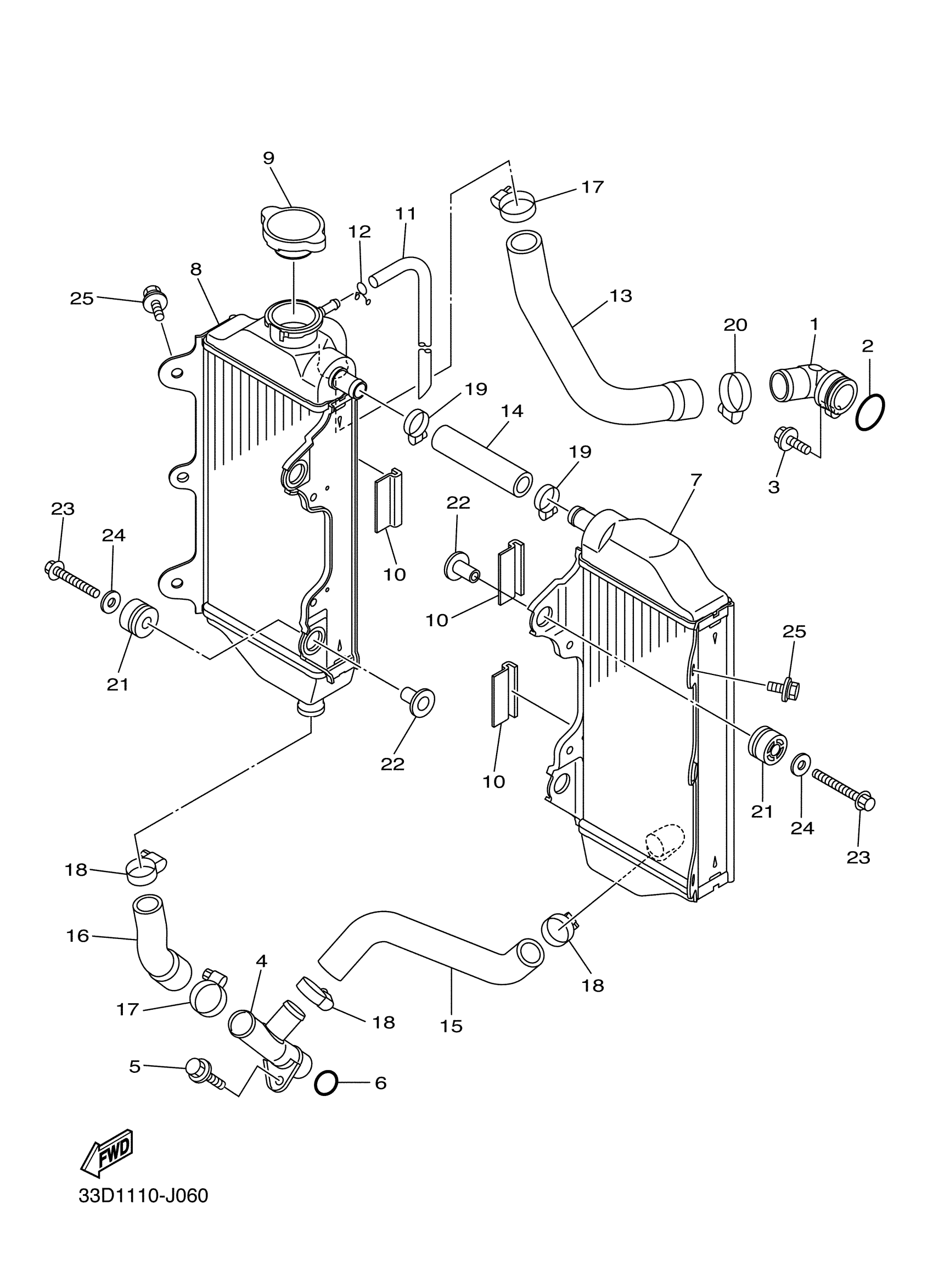

Yamaha YZ450FAL (YZ450F) 33D50 2011 RADIATOR HOSE Diagram

#

Description
Price

1

JOINT

33D-12446-00-00

Unavailable

2

O-RING(59V)

93210-24253-00

$4.65

3

BOLT, FLANGE

95022-06020-00

$3.11

4

PIPE 2

33D-12482-00-00

$44.26

5

BOLT, FLANGE

95022-06012-00

$2.80

6

O-RING (5U8)

93210-16500-00

$4.58

7

RADIATOR ASSY

33D-1240A-00-00

Unavailable

8

RADIATOR ASSY

33D-12461-00-00

Unavailable

9

CAP, RADIATOR

5SL-12462-01-00

Unavailable

10

DAMPER, RADIATOR

33D-12465-00-00

$10.30

11

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$11.73

12

CLIP

90467-090A2-00

$2.47

13

HOSE 1

33D-12576-00-00

Unavailable

14

HOSE 2

33D-12577-00-00

$6.02

15

HOSE 3

33D-12578-00-00

Unavailable

16

HOSE 4

33D-12579-00-00

Unavailable

17

HOSE CLAMP ASSY

90450-28001-00

Unavailable

18

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

19

HOSE CLAMP ASSY

90450-18M09-00

$9.82

20

HOSE CLAMP ASSY

90450-32003-00

Unavailable

21

GROMMET

90480-15012-00

Unavailable

22

COLLAR

90387-06065-00

Unavailable

23

BOLT, FLANGE

90105-06111-00

Unavailable

24

WASHER, PLATE (583 REAR FENDER

90201-06571-00

Unavailable

25

BOLT, WITH WASHER

90119-06239-00

Unavailable
