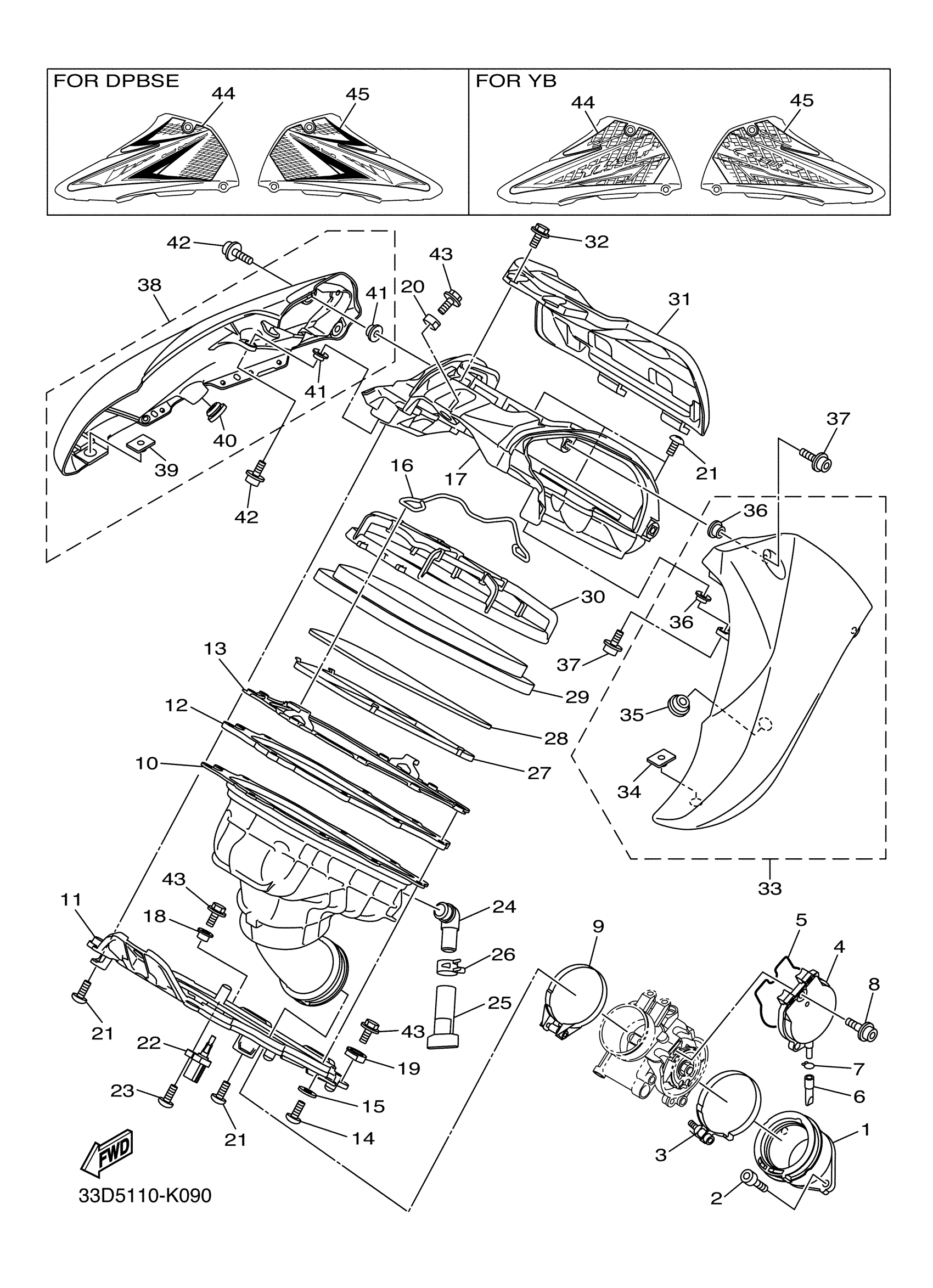

Yamaha YZ450FAL (YZ450F) 33D50 2011 INTAKE Diagram
#
4
COVER 1
33D-14293-00-00
Unavailable
5
WASHER
33D-14227-00-00
Unavailable
6
HOSE
33D-14987-00-00
Unavailable
10
JOINT
33D-14454-00-00
Unavailable
11
PLATE
33D-14477-00-00
Unavailable
13
HOLDER, GUIDE
33D-14459-00-00
Unavailable
16
BINDER 1
33D-1441G-00-00
Unavailable
17
COVER 1
33D-14417-00-00
Unavailable
18
COLLAR
90387-06009-00
Unavailable
19
COLLAR
33D-14495-00-00
Unavailable
20
COLLAR
33D-14449-00-00
Unavailable
21
SCREW, PAN HEAD TAPPING (AK5)
97780-50116-00
Unavailable
22
SENSOR, AIR TEMPERATURE
8FP-85886-00-00
Unavailable
23
SCREW, PAN HEAD TAPPING (AK5)
97780-50116-00
Unavailable
24
PIPE
5TJ-14419-00-00
Unavailable
25
PIPE, DRAIN
33D-1443E-00-00
Unavailable
26
CLIP(42G)
90467-16098-00
Unavailable
27
NET 1
33D-1441B-00-00
Unavailable
28
ELEMENT, AIR CLEANER 2
33D-14461-00-00
Unavailable
29
ELEMENT, AIR CLEANER
33D-14451-00-00
Unavailable
30
GUIDE
33D-14458-00-00
Unavailable
31
COVER SUB ASSY
33D-14480-00-00
Unavailable
32
BOLT, FLANGE
90105-05028-00
Unavailable
33
DUCT
33D-14437-50-00
Unavailable
34
NUT
90179-06055-00
Unavailable
35
DAMPER 1
33D-14425-00-00
Unavailable
36
COLLAR
90387-06009-00
Unavailable
37
BOLT, HEXAGON SOCKET HEAD
90110-06245-00
Unavailable
38
DUCT
33D-1443A-50-00
Unavailable
39
NUT
90179-06055-00
Unavailable
40
DAMPER 1
33D-14425-00-00
Unavailable
41
COLLAR
90387-06009-00
Unavailable
42
BOLT, HEXAGON SOCKET HEAD
90110-06245-00
Unavailable
43
BOLT, FLANGE
90105-06170-00
Unavailable
44
GRAPHIC, 1
33D-2173E-20-00
Unavailable
45
GRAPHIC, 2
33D-2173F-20-00
Unavailable
