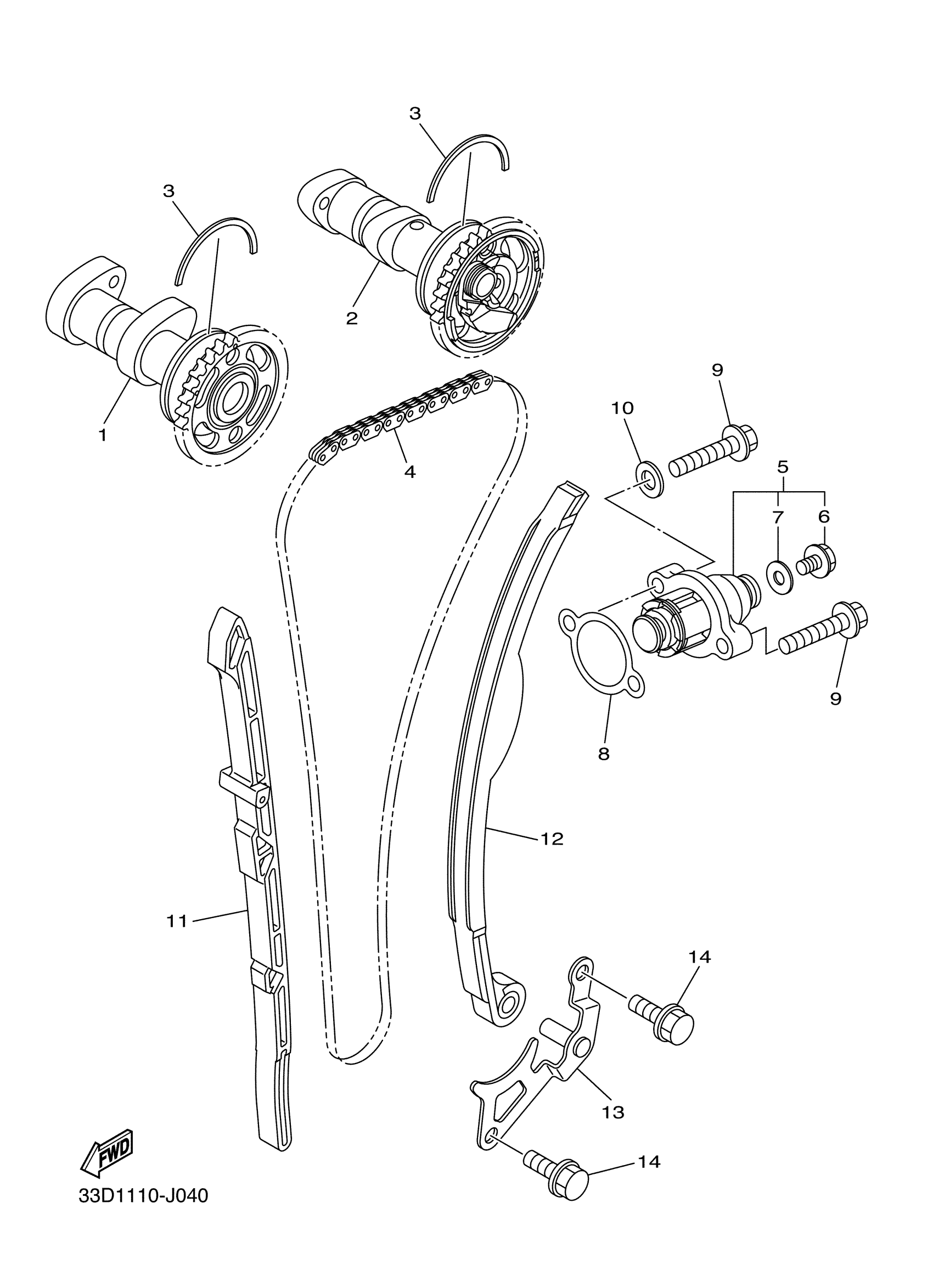

Yamaha YZ450FAL (YZ450F) 33D50 2011 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

33D-12170-00-00

$284.65

2

CAMSHAFT ASSY 2

33D-12180-00-00

$275.64

3

CIRCLIP

93440-41178-00

$3.18

4

CHAIN

94591-57122-00

$30.37

5

TENSIONER ASSY, CAM CHAIN

5TA-12210-30-00

$106.39

6

BOLT

5EL-12228-00-00

$2.52

7

GASKET

5EL-12214-00-00

$5.99

8

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

9

BOLT, FLANGE

95022-06025-00

$1.37

10

GASKET 256113960000

90430-06014-00

Unavailable

11

DAMPER, CHAIN 1

33D-12251-00-00

$28.15

12

DAMPER, CHAIN 2

33D-12252-01-00

Unavailable

13

PLATE, GUIDE STOPPER 1

33D-12233-00-00

$35.94

14

BOLT, FLANGE

90105-06100-00

$5.20
