Description

Price

1

KICK SHAFT ASSY

5GR-15601-00-00

Unavailable

2

WASHER, PLATE (2K7)

90201-20685-00

$7.49

3

CIRCLIP (525)

93410-20038-00

$3.76

4

SPRING, COMPRESSION

90501-16016-00

$5.60

5

WASHER, PLATE(4GL)

90201-167P7-00

$9.49

6

CIRCLIP(13T)

99009-16400-00

$5.60

7

GUIDE, SPRING

5GR-15664-00-00

$28.99

8

SPRING, TORSION(2VM)

90508-30743-00

$18.99

9

WASHER, PLATE (25H)

90201-162H4-00

$9.49

10

STOPPER

5SF-15668-00-00

Unavailable

11

WASHER, LOCK

5BE-15686-01-00

Unavailable

12

BOLT, HEXAGON

97017-06016-00

$8.49

13

OIL SEAL (20X30X7-371)

93102-20108-00

$11.49

14

GEAR, KICK IDLE

5BE-15651-00-00

Unavailable

15

WASHER PLATE 328171160000

90201-20276-00

$8.49

16

CIRCLIP(1AR)

99009-20400-00

Unavailable

17

KICK CRANK ASSY

5BE-15620-02-00

Unavailable

18

BOSS,KICK CRANK

3SP-15621-02-00

Unavailable

19

SPRING, COMPRESSION (23X)

90501-13720-00

Unavailable

20

BALL

93501-04011-00

Unavailable

21

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

Unavailable

22

O-RING

93210-19216-00

Unavailable

23

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

24

WASHER, PLATE (8L8)

90201-087A9-00

Unavailable

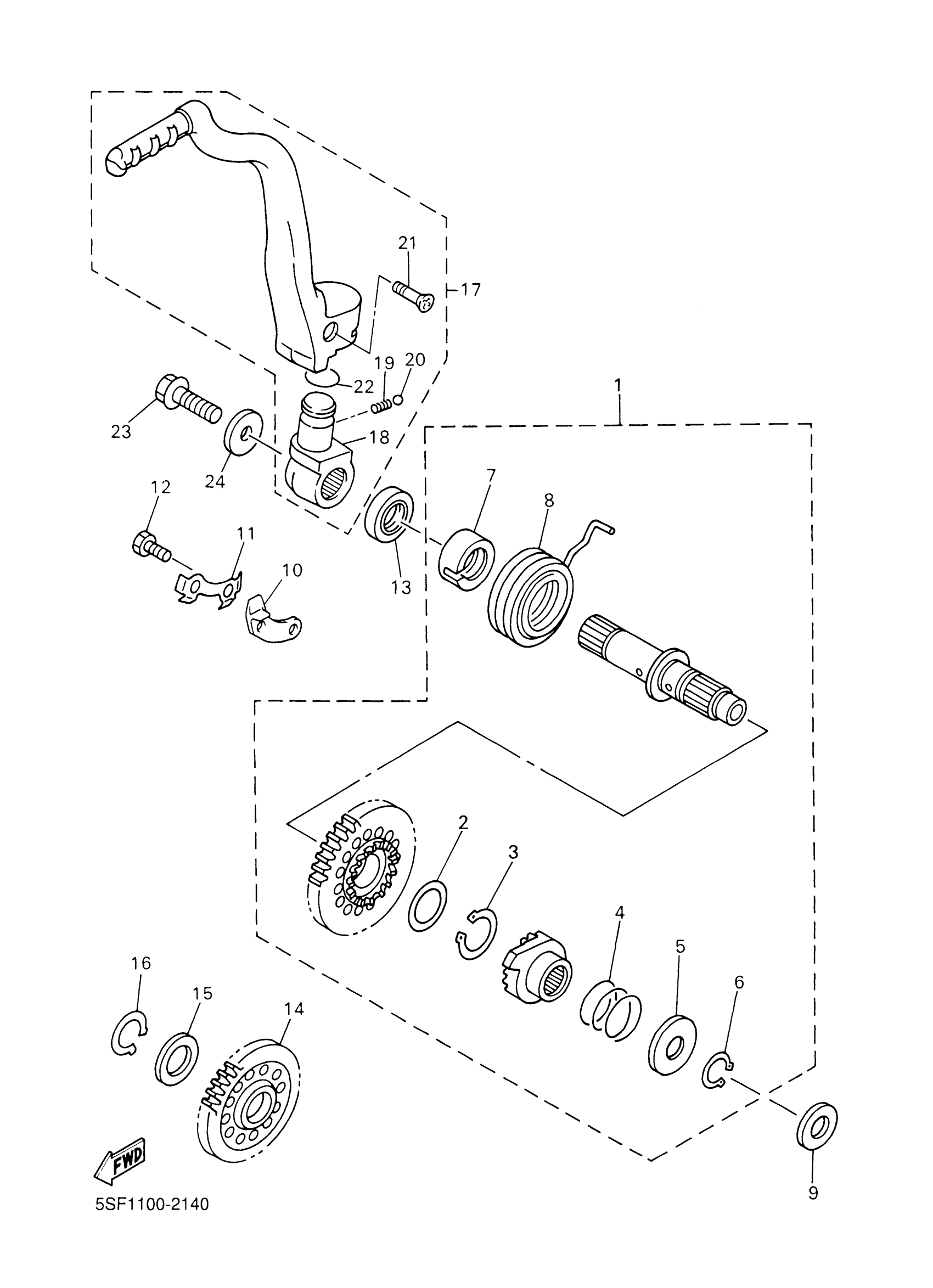

Yamaha YZ426FP (YZ426F) 5SF1 2002 STARTER Diagram

KICK SHAFT ASSY

WASHER, PLATE (2K7)

CIRCLIP (525)

SPRING, COMPRESSION

WASHER, PLATE(4GL)

CIRCLIP(13T)

GUIDE, SPRING

SPRING, TORSION(2VM)

WASHER, PLATE (25H)

STOPPER

WASHER, LOCK

BOLT, HEXAGON

OIL SEAL (20X30X7-371)

GEAR, KICK IDLE

WASHER PLATE 328171160000

CIRCLIP(1AR)

KICK CRANK ASSY

BOSS,KICK CRANK

SPRING, COMPRESSION (23X)

BALL

SCREW, COUNTERSUNK (5Y1)

O-RING

BOLT, FLANGE(8AB)

WASHER, PLATE (8L8)
