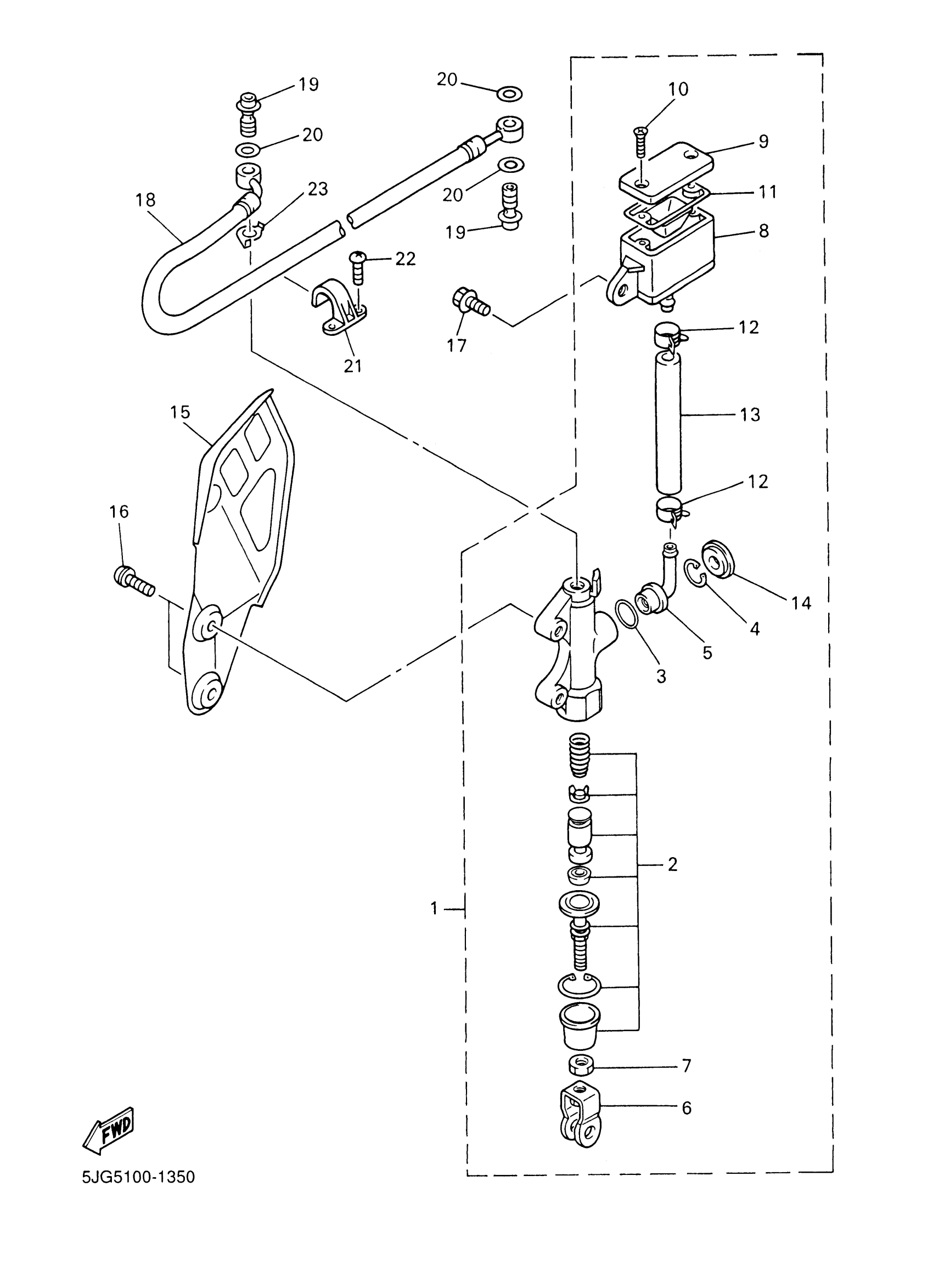

Yamaha YZ426FP (YZ426F) 5SF1 2002 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

5JG-2583V-00-00

Unavailable

2

CYLINDER KIT, MASTER

4SS-W0042-50-00

$92.99

3

O-RING (22U)

93210-15566-00

$7.49

4

CIRCLIP

2VN-25866-00-00

$6.99

5

JOINT

4ML-2582A-50-00

$14.49

6

JOINT

3SP-27222-00-00

$23.99

7

. NUT

95380-08700-00

Unavailable

8

TANK, RESERVOIR

5BE-25894-00-00

$42.99

9

CAP, RESERVOIR

5BE-25852-00-00

Unavailable

10

SCREW, FLAT HEAD

98706-04040-00

$1.70

11

DIAPHRAGM, RESERVOIR

56A-25854-00-00

$38.99

12

CLIP(3FV)

90467-12085-00

$10.49

13

. HOSE, RESERVOIR

5BE-25895-00-00

Unavailable

14

COVER, DUST

3FV-2589A-00-00

$20.99

15

COVER 2

5BE-2117M-01-00

Unavailable

16

BOLT, BUTTON

92014-06016-00

Unavailable

17

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

18

HOSE, BRAKE 2

5MV-25873-01-00

Unavailable

19

BOLT, UNION

90401-10172-00

Unavailable

20

WASHER, PLATE(481)

90201-10118-00

Unavailable

21

HOLDER, BRAKE HOSE 2

2VM-25876-00-00

Unavailable

22

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

23

WASHER, LOCK

5BE-25844-01-00

Unavailable
