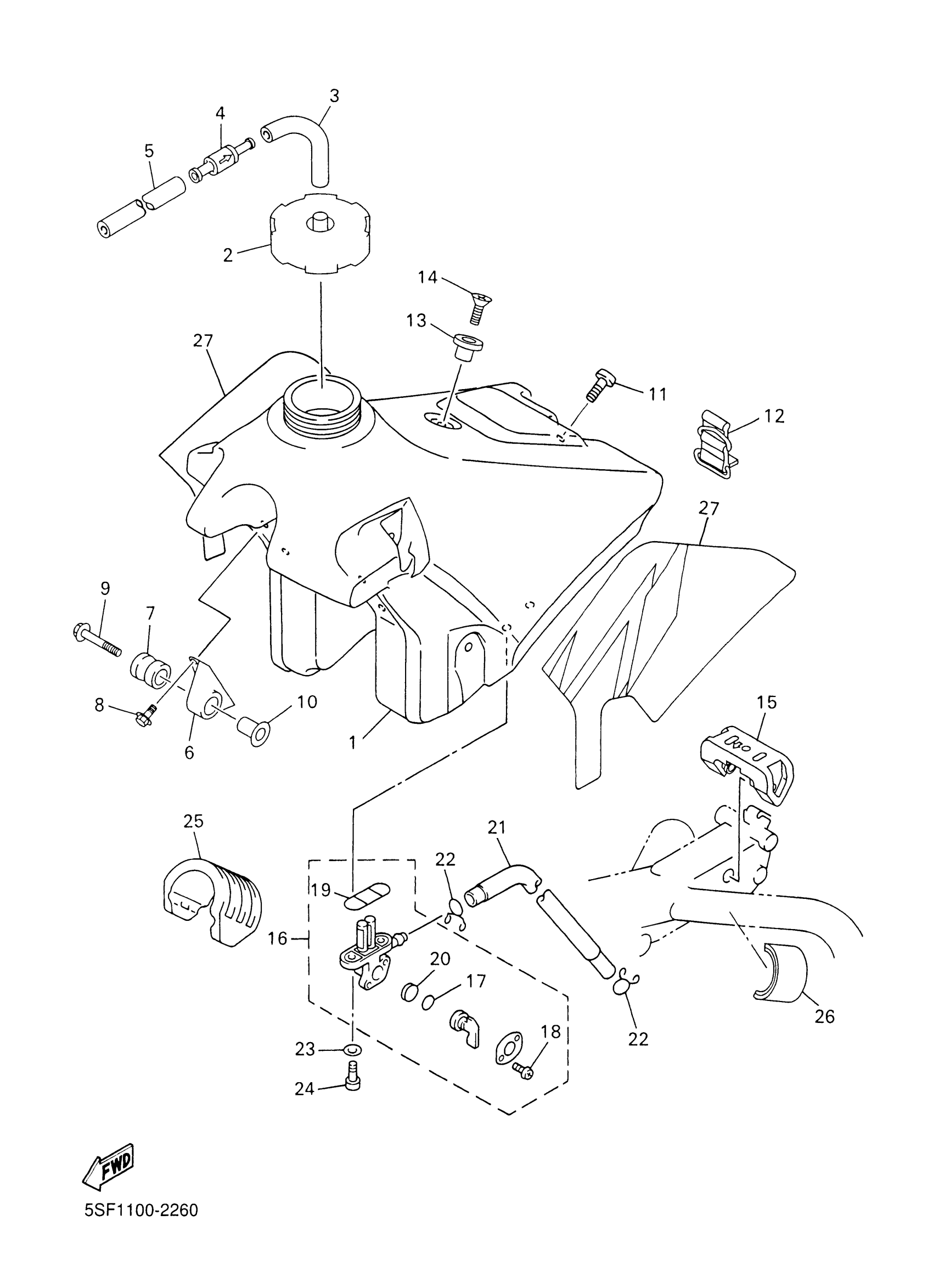

Yamaha YZ426FP (YZ426F) 5SF1 2002 FUEL TANK Diagram

FUEL TANK COMP.

5JG-24110-51-00

$577.99

CAP ASSY

5MV-24610-00-00

$58.99

PIPE 5

5RB-24315-00-00

$7.99

PIPE JOINT ASSY

3XJ-24380-00-00

$36.99

HOSE (L420)

90445-092K1-00

$12.49

HOLDER, DAMPER

5XE-24144-00-00

$23.99

GROMMET(4AA)

90480-18549-00

$10.49

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

BOLT, WITH WASHER(3XP)

90119-06214-00

$8.49

WASHER, SPECIAL

3JD-24186-00-00

$13.49

SCREW, BINDING

98907-06020-00

$8.49

BAND, TANK FITTING 1

5SF-24173-00-00

$34.99

BRACKET, SEAT

4EW-2412F-00-00

$14.49

SCREW, FLAT

98707-06025-00

$8.49

DAMPER, LOCATING 1

4SS-24181-00-00

Unavailable

FUEL COCK ASSY 1

4DP-24500-10-00

Unavailable

SEAL, COCK

3AJ-24534-01-00

Unavailable

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

O-RING

4X8-24512-00-00

Unavailable

VALVE PACKING

3AC-24523-00-00

Unavailable

HOSE (L195)

90445-11002-00

Unavailable

CLIP

90467-100A1-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

SCREW 256241430000

90149-06011-00

Unavailable

DAMPER, LOCATING 2

5BE-24182-00-00

Unavailable

DAMPER 1

1UY-21638-00-00

Unavailable

GRAPHIC SET

5SF-24240-01-00

Unavailable
