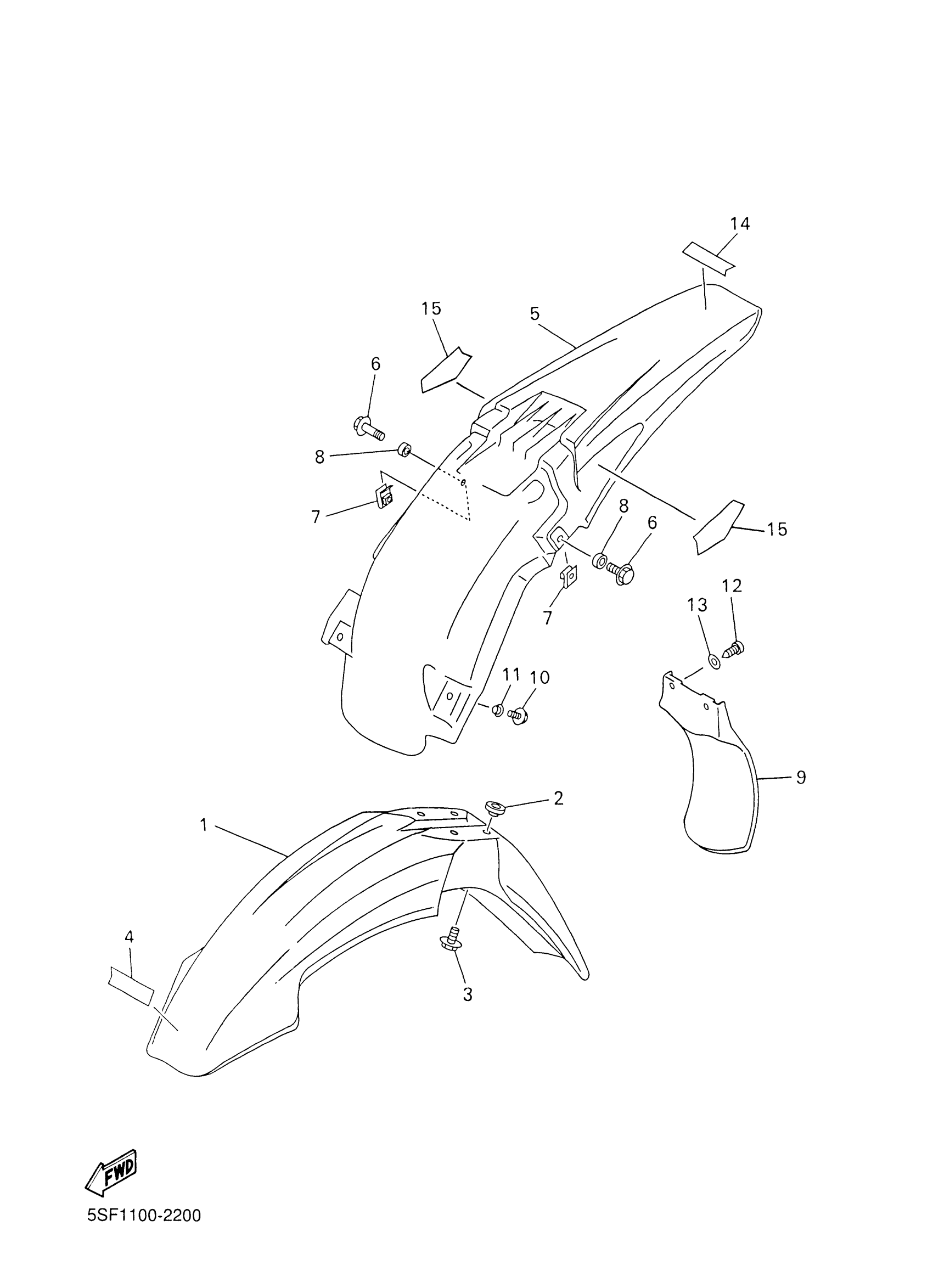

Yamaha YZ426FP (YZ426F) 5SF1 2002 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5HD-21511-00-00

$34.08

2

COLLAR

3JD-21748-00-00

$4.01

3

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

4

EMBLEM YAMAHA

4ES-2153E-02-00

Unavailable

5

FENDER, REAR

5BE-21611-10-00

$59.85

6

BOLT, FLANGE(4MY)

95027-06012-00

$3.05

7

NUT, SPRING (26H)

90183-06023-00

$6.94

8

COLLAR(4EW)

90387-0701A-00

$6.22

9

GUARD, FLAP

5BE-21642-00-00

$42.21

10

BOLT, FLANGE

95817-06016-00

$1.40

11

COLLAR

90387-06009-00

$7.37

12

SCREW, TRUSS TAP.

97707-60016-00

$0.98

13

WASHER, PLATE

90201-06557-00

$2.57

14

EMBLEM YAMAHA

4ES-2153E-02-00

Unavailable

15

EMBLEM 1

5SF-2163G-00-00

Unavailable
