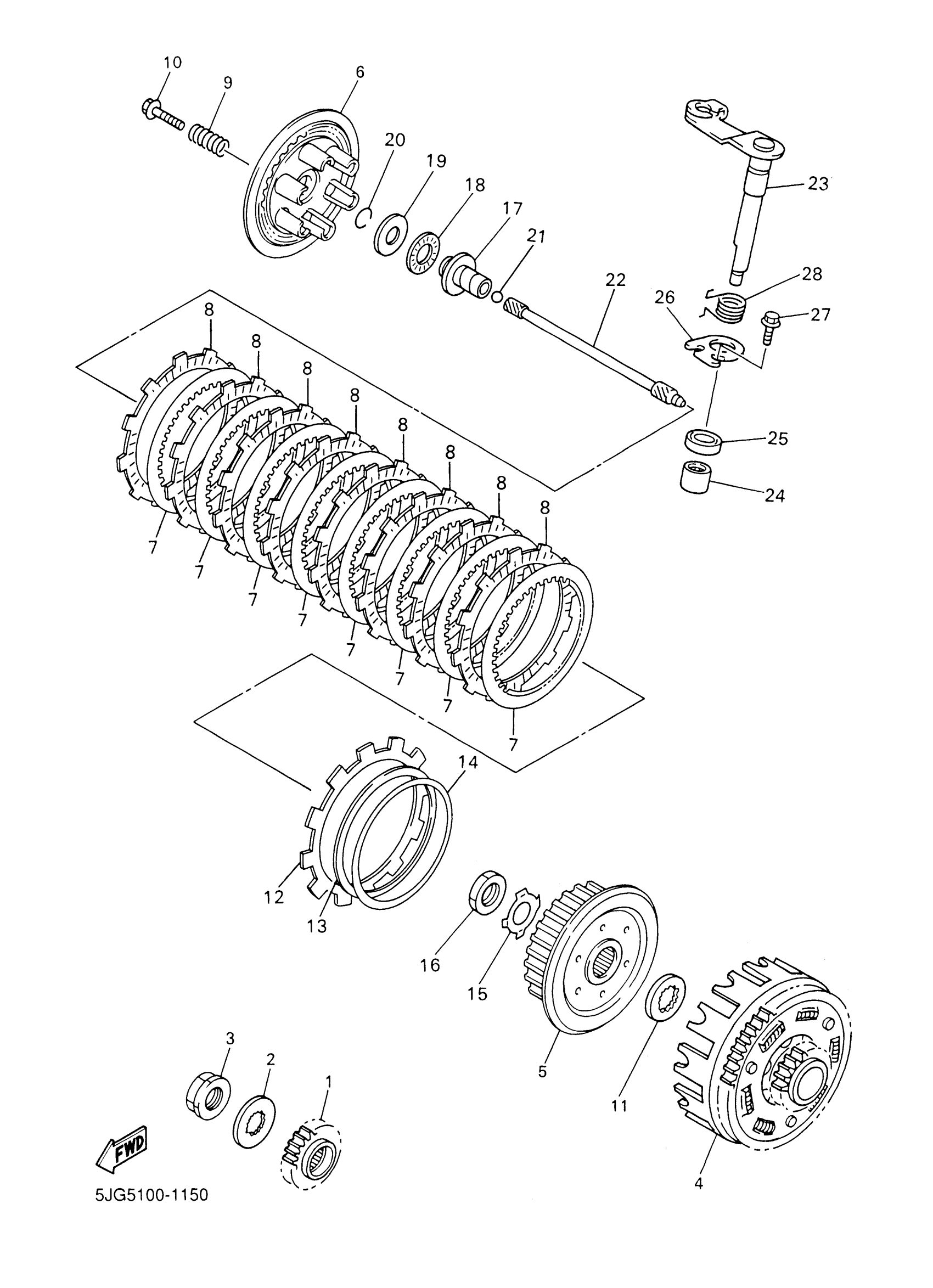

Yamaha YZ426FP (YZ426F) 5SF1 2002 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

5JG-16111-00-00

Unavailable

2

WASHER, LOCK

90215-21001-00

$9.49

3

NUT

90179-20001-00

$17.99

4

PRIMARY DRIVEN GEAR COMP.

5JG-16150-10-00

Unavailable

5

BOSS, CLUTCH

5JG-16371-10-00

Unavailable

6

PLATE, PRESSURE 1

5JG-16351-00-00

$90.99

7

PLATE, CLUTCH 2

5JG-16325-10-00

$7.99

8

PLATE, FRICTION

3XK-16321-00-00

$28.99

9

SPRING, COMPRESSION

90501-237L0-00

$7.49

10

SCREW, WITH WASHER(33M)

90159-06092-00

$9.49

11

PLATE, THRUST 1

2JN-16154-00-00

$20.99

12

PLATE, FRICTION

5JG-16321-00-00

$33.99

13

SPRING, CLUTCH BOSS

5JG-16383-00-00

$43.99

14

PLATE, SEAT

5JG-16384-00-00

$42.99

15

WASHER, LOCK (34L)

90215-20231-00

$4.41

16

NUT (34L)

90170-20327-00

Unavailable

17

ROD, PUSH 1

5JG-16356-00-00

Unavailable

18

BEARING, THRUST (713)

93340-21505-00

Unavailable

19

WASHER, PLATE(1RE)

90201-125L6-00

Unavailable

20

CIRCLIP (4G0)

93440-10085-00

Unavailable

21

BALL (498)

93511-32027-00

Unavailable

22

ROD, PUSH 2

5JG-16357-10-00

Unavailable

23

PUSH LEVER COMP.

5JG-16381-00-00

Unavailable

24

BEARING

93317-11287-00

Unavailable

25

OIL SEAL (4G0)

93102-12224-00

Unavailable

26

PLATE, SEAT

4JT-16384-00-00

Unavailable

27

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

28

SPRING, TORSION

90508-142B5-00

Unavailable
