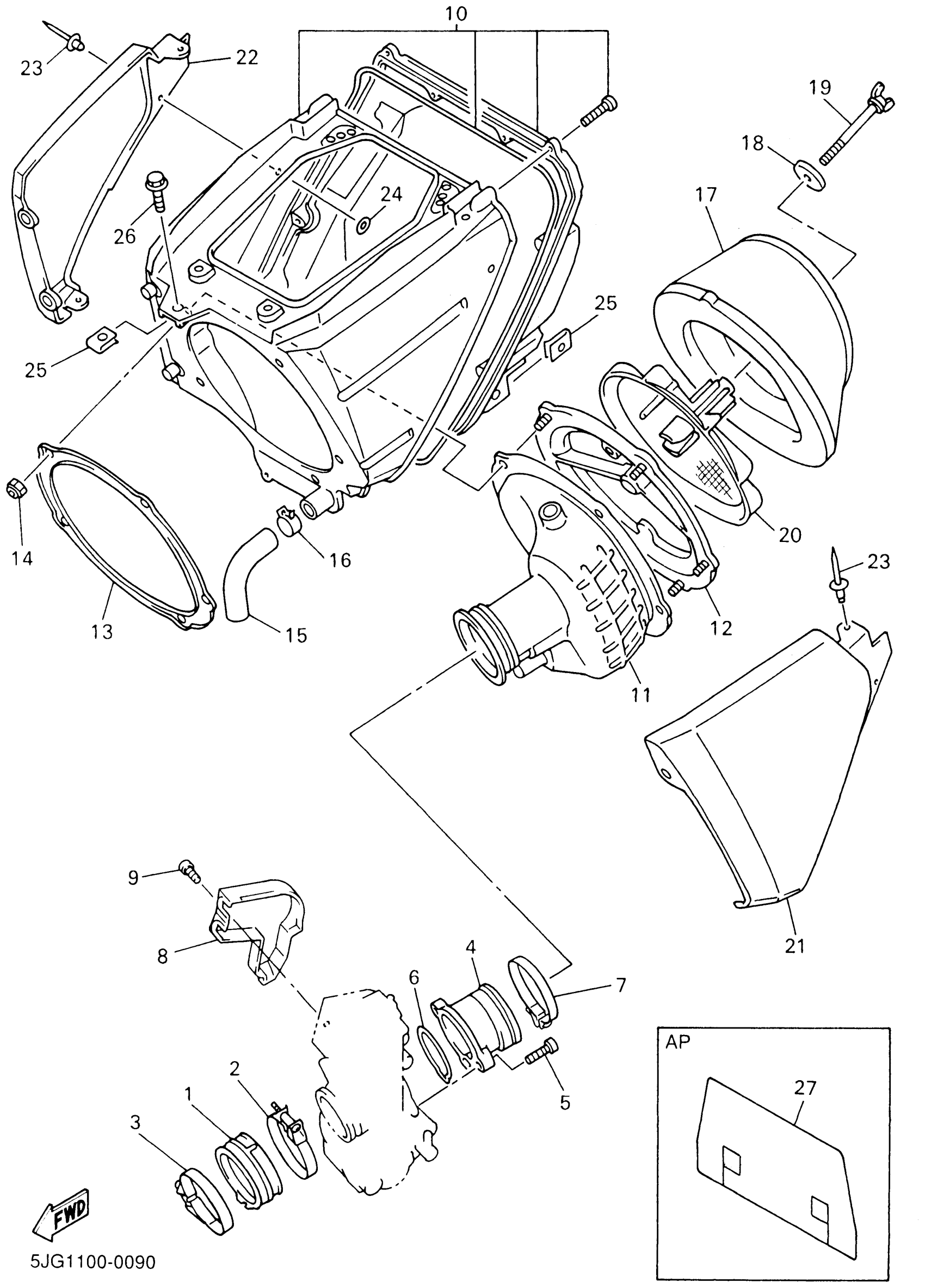

Yamaha YZ426FN (YZ426) 5JG5 2001 INTAKE Diagram
#
Description
Price
4
JOINT, AIR FILTER 1
5JG-1440F-01-00
Unavailable
8
COVER 1
5JG-14293-01-00
Unavailable
9
BOLT
5JG-14428-00-00
Unavailable
10
AIR CLEANER CASE ASSY
5JG-14401-00-00
Unavailable
11
JOINT, AIR CLEANER 1
5JG-14453-00-00
Unavailable
12
HOLDER,GUIDE
3JD-14459-01-00
Unavailable
13
PLATE
5MV-14477-00-00
Unavailable
15
PIPE, DRAIN
5BE-1443E-00-00
Unavailable
16
CLIP(3TB)
90467-17128-00
Unavailable
17
ELEMENT, AIR CLEANER
4XM-14451-01-00
Unavailable
18
WASHER (4H7)
90209-06096-00
Unavailable
19
BOLT, WING
90122-06005-00
Unavailable
20
GUIDE
5BE-14458-10-00
Unavailable
21
COVER, CLEANER CASE 1
5BE-1441A-10-00
Unavailable
22
COVER, CLEANER CASE 2
5BE-1441E-10-00
Unavailable
23
RIVET (813)
90267-32070-00
Unavailable
24
WASHER, PLATE 8077743700
90201-03313-00
Unavailable
25
NUT, SPRING (26H)
90183-06023-00
Unavailable
26
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
27
COVER 1
5JG-14417-00-00
Unavailable
