Description

Price

1

FENDER, FRONT

5HD-21511-00-00

$42.99

2

COLLAR

3JD-21748-00-00

$5.49

3

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

4

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

5

FENDER, REAR

5BE-21611-10-00

$59.99

6

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

7

NUT, SPRING (26H)

90183-06023-00

$9.49

8

COLLAR(4EW)

90387-0701A-00

$9.49

9

GUARD, FLAP

5BE-21642-00-00

$45.99

10

BOLT, FLANGE

95817-06016-00

$2.75

11

COLLAR

90387-06009-00

$10.49

12

SCREW, TRUSS TAP.

97707-60016-00

$1.70

13

WASHER, PLATE

90201-06557-00

$3.30

14

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

15

EMBLEM 1

5JG-2163G-59-00

Unavailable

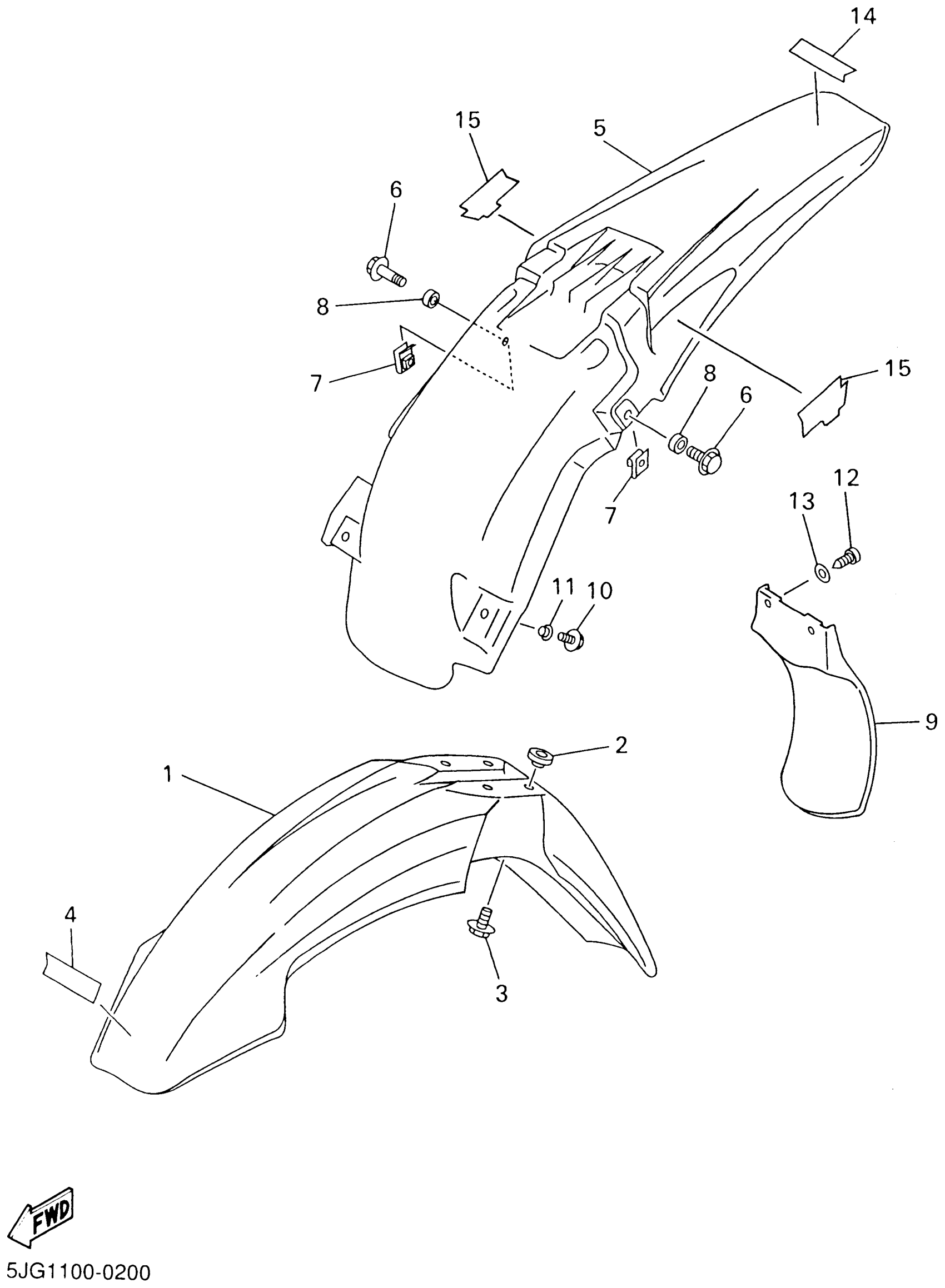

Yamaha YZ426FN (YZ426) 5JG5 2001 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, WITH WASHER (30X)

EMBLEM YAMAHA

FENDER, REAR

BOLT, FLANGE(4MY)

NUT, SPRING (26H)

COLLAR(4EW)

GUARD, FLAP

BOLT, FLANGE

COLLAR

SCREW, TRUSS TAP.

WASHER, PLATE

EMBLEM YAMAHA

EMBLEM 1
