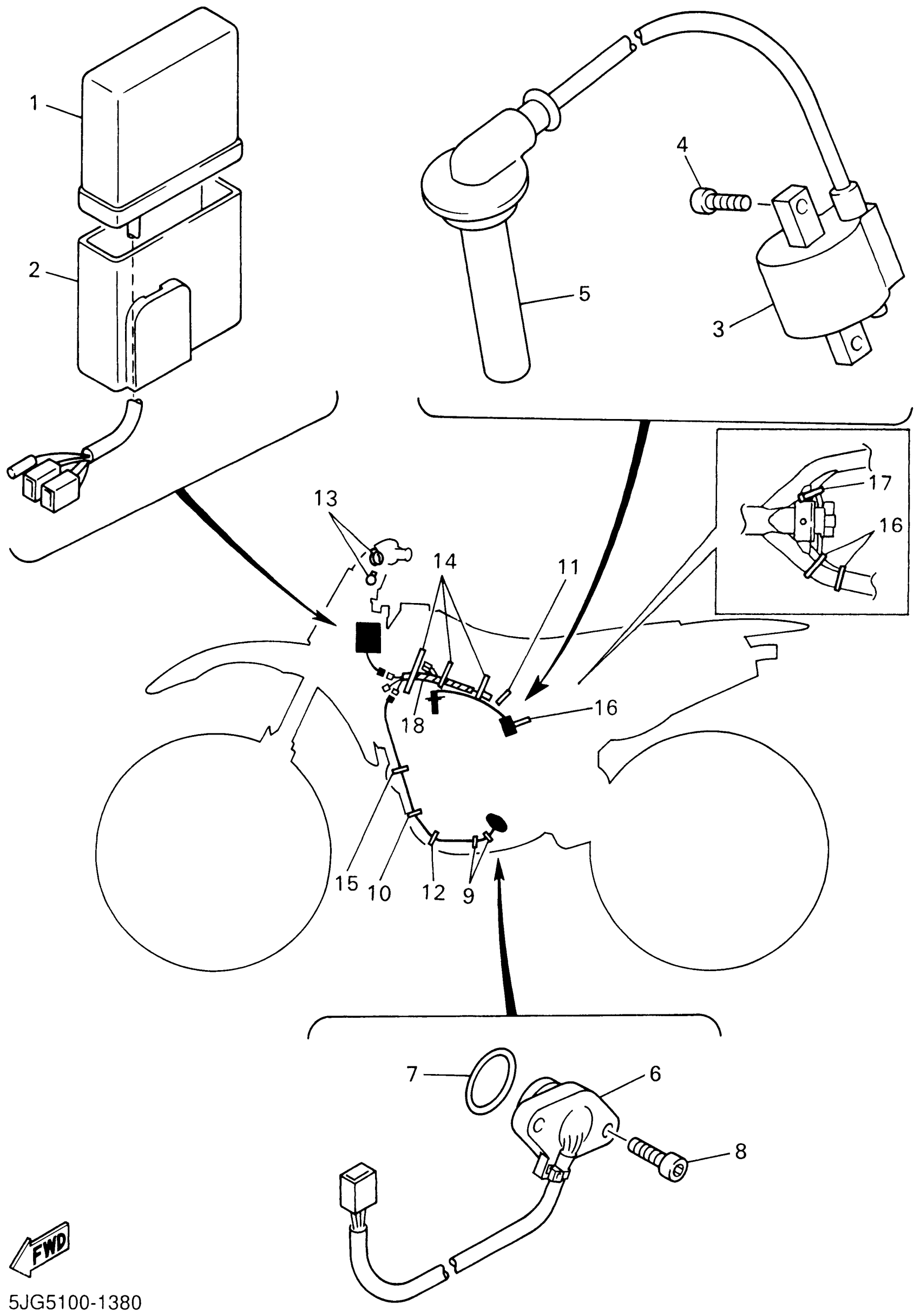

Yamaha YZ426FN (YZ426) 5JG5 2001 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

5JG-85540-50-00

Unavailable

2

BAND

5BE-85546-00-00

Unavailable

3

IGNITION COIL ASSY

4MX-82310-02-00

Unavailable

4

BOLT,SOCKET

91317-06016-00

$1.25

5

PLUG CAP ASSY

5BE-82370-00-00

Unavailable

6

NEUTRAL SWITCH ASSY

5BE-82540-03-00

$70.99

7

O-RING

93210-21001-00

$5.60

8

SCREW, BINDING

90154-05046-00

$2.29

9

CLAMP

90464-16061-00

$8.49

10

CLAMP(4FM)

90464-15195-00

$4.41

11

CLAMP(4FM)

90464-15195-00

$4.41

12

CLAMP, HOSE(3KJ)

90460-15126-00

$7.49

13

CLAMP

90464-13077-00

$8.49

14

CLAMP(MF1)

90464-15152-00

$5.60

15

CLAMP(4FM)

90464-15195-00

$4.41

16

CLAMP(4FM)

90464-15195-00

$4.41

17

BAND

1UA-82591-00-00

Unavailable

18

WIRE, SUB LEAD

5JG-82509-50-00

Unavailable
