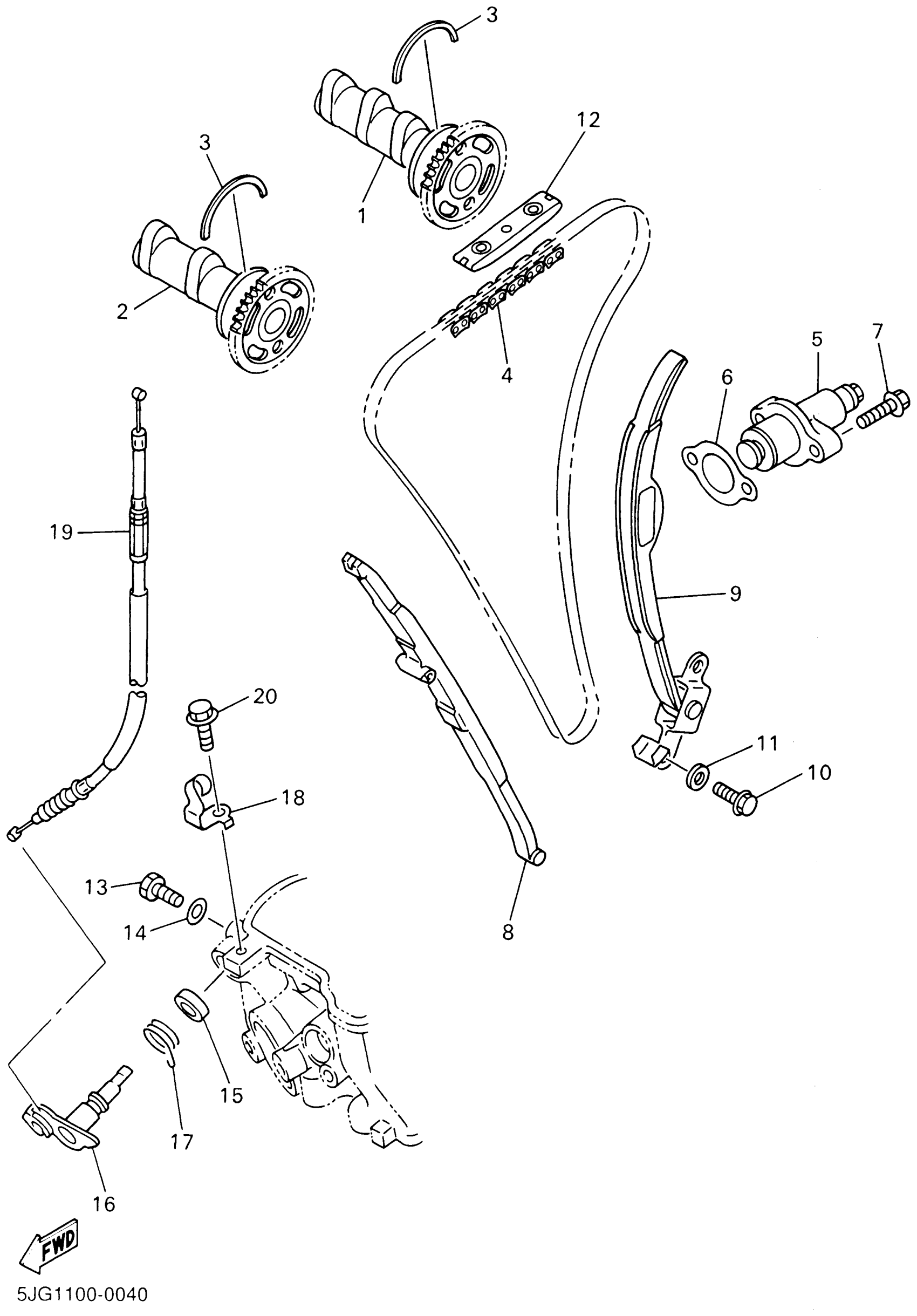

Yamaha YZ426FN (YZ426) 5JG5 2001 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5BE-12170-10-00

Unavailable

2

CAMSHAFT ASSY 2

5BE-12180-01-00

Unavailable

3

CIRCLIP

93440-41178-00

$3.98

4

CHAIN

94591-50120-00

$68.99

5

TENSIONER ASSY, CAM CHAIN

5BE-12210-00-00

$131.99

6

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

7

BOLT, SMALL FLANGE

95027-06025-00

$4.16

8

DAMPER, CHAIN 1

5BE-12251-10-00

$96.99

9

DAMPER, CHAIN 2

5BE-12252-00-00

Unavailable

10

BOLT, HEXAGON

97017-06016-00

$8.49

11

WASHER(6TA)

92907-06600-00

$2.72

12

GUIDE, STOPPER 2

5BE-12241-01-00

$29.99

13

BOLT (583 TACHOMETER)

90109-06418-00

$9.49

14

GASKET 256113960000

90430-06014-00

Unavailable

15

OIL SEAL (4G0)

93102-12224-00

$10.49

16

DECOMPRESSION ASSY

5BE-12280-10-00

Unavailable

17

SPRING, TORSION

90508-162B2-00

Unavailable

18

BRACKET, DECOMPRESSION

5BE-12283-00-00

Unavailable

19

CABLE, DECOMPRESSION

5BE-12292-10-00

Unavailable

20

BOLT, FLANGE

95817-06014-00

Unavailable
