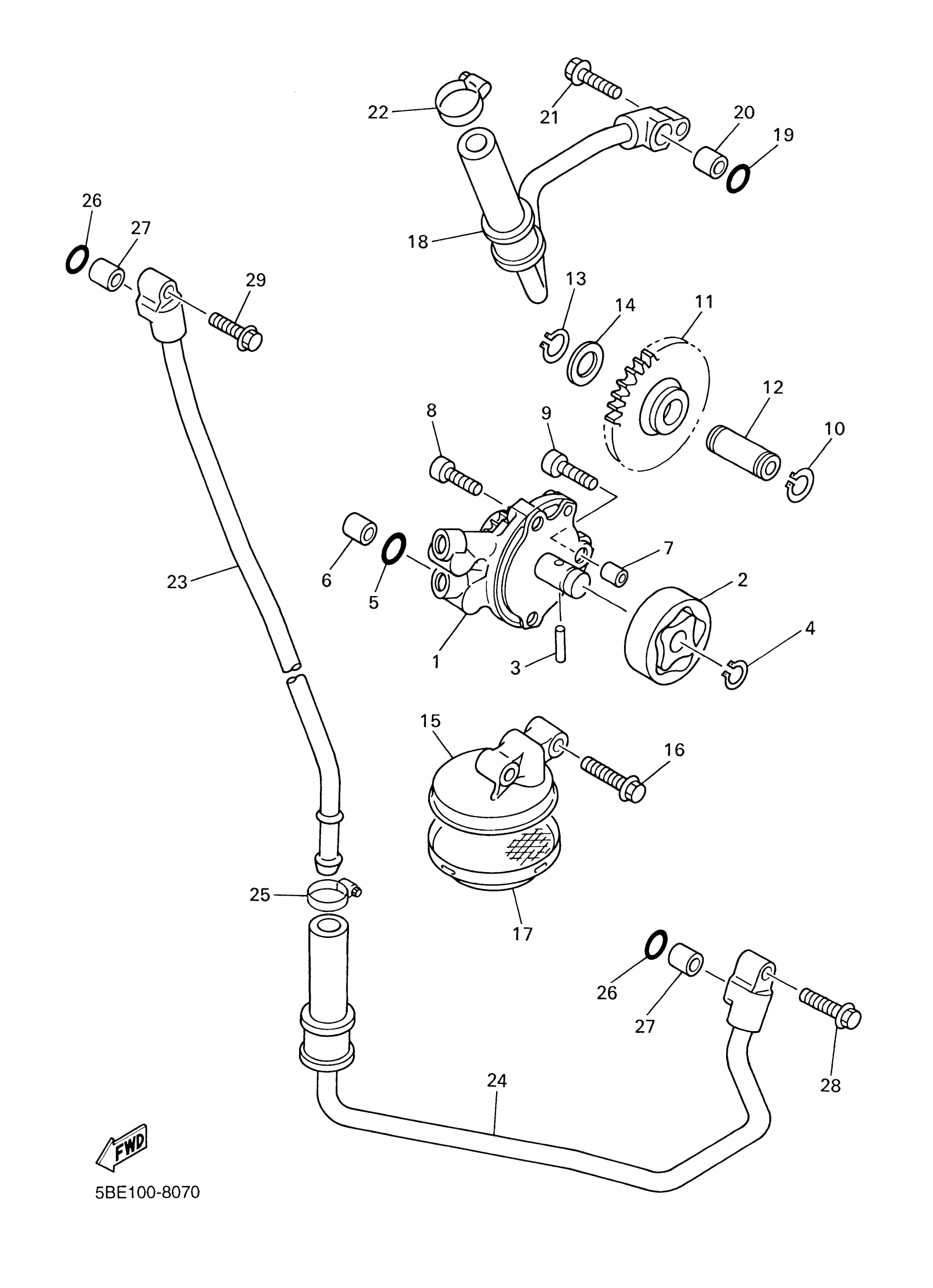

Yamaha YZ426FM (YZ426F) 5JG1 2000 OIL PUMP Diagram

OIL PUMP ASSY

5BE-13300-10-00

Unavailable

ROTOR ASSY 1

1HX-13310-00-00

Unavailable

PIN,DOWEL

93603-17070-00

$4.14

CIRCLIP (4G0)

93440-10085-00

$8.49

O-RING (371)

93210-10197-00

$7.49

PIN, DOWEL(3VD)

99530-10114-00

$2.55

PIN, DOWEL

99530-08012-00

Unavailable

BOLT,SOCKET

91317-06025-00

$5.60

BOLT, SOCKET

91314-06030-00

$8.49

CIRCLIP(2R6)

99001-08600-00

$8.49

GEAR, OIL PUMP IDLE

5BE-13341-00-00

$45.99

SHAFT, IDLE GEAR

5BE-13342-00-00

$22.99

CIRCLIP(10Y)

99009-12400-00

$3.59

WASHER PLATE 164185720000

90201-12166-00

$9.49

HOUSING, STRAINER

5BE-13412-00-00

Unavailable

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

STRAINER, OIL

5BE-13411-00-00

Unavailable

HOSE, OIL 1

5BE-13464-00-00

Unavailable

O-RING (371)

93210-10197-00

$7.49

PIN, DOWEL(3VD)

99530-10114-00

$2.55

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

PIPE, OIL 1

5BE-13416-00-00

Unavailable

HOSE, OIL 2

5BE-13465-00-00

Unavailable

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

O-RING (371)

93210-10197-00

$7.49

PIN, DOWEL(3VD)

99530-10114-00

$2.55

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable
