Description

Price

1

FENDER, FRONT

5HD-21511-00-00

$42.99

2

COLLAR

3JD-21748-00-00

$5.49

3

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

4

EMBLEM, YAMAHA

99241-00080-00

$13.99

5

FENDER, REAR

5BE-21611-10-00

$59.99

6

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

7

NUT, SPRING (26H)

90183-06023-00

$9.49

8

COLLAR(4EW)

90387-0701A-00

$9.49

9

GUARD, FLAP

5BE-21642-00-00

$45.99

10

BOLT, FLANGE

95817-06016-00

$2.75

11

COLLAR

90387-06009-00

$10.49

12

SCREW, TRUSS TAP.

97707-60016-00

$1.70

13

WASHER, PLATE

90201-06557-00

$3.30

14

EMBLEM, YAMAHA

99241-00080-00

$13.99

15

EMBLEM 1

5JG-2163G-00-00

Unavailable

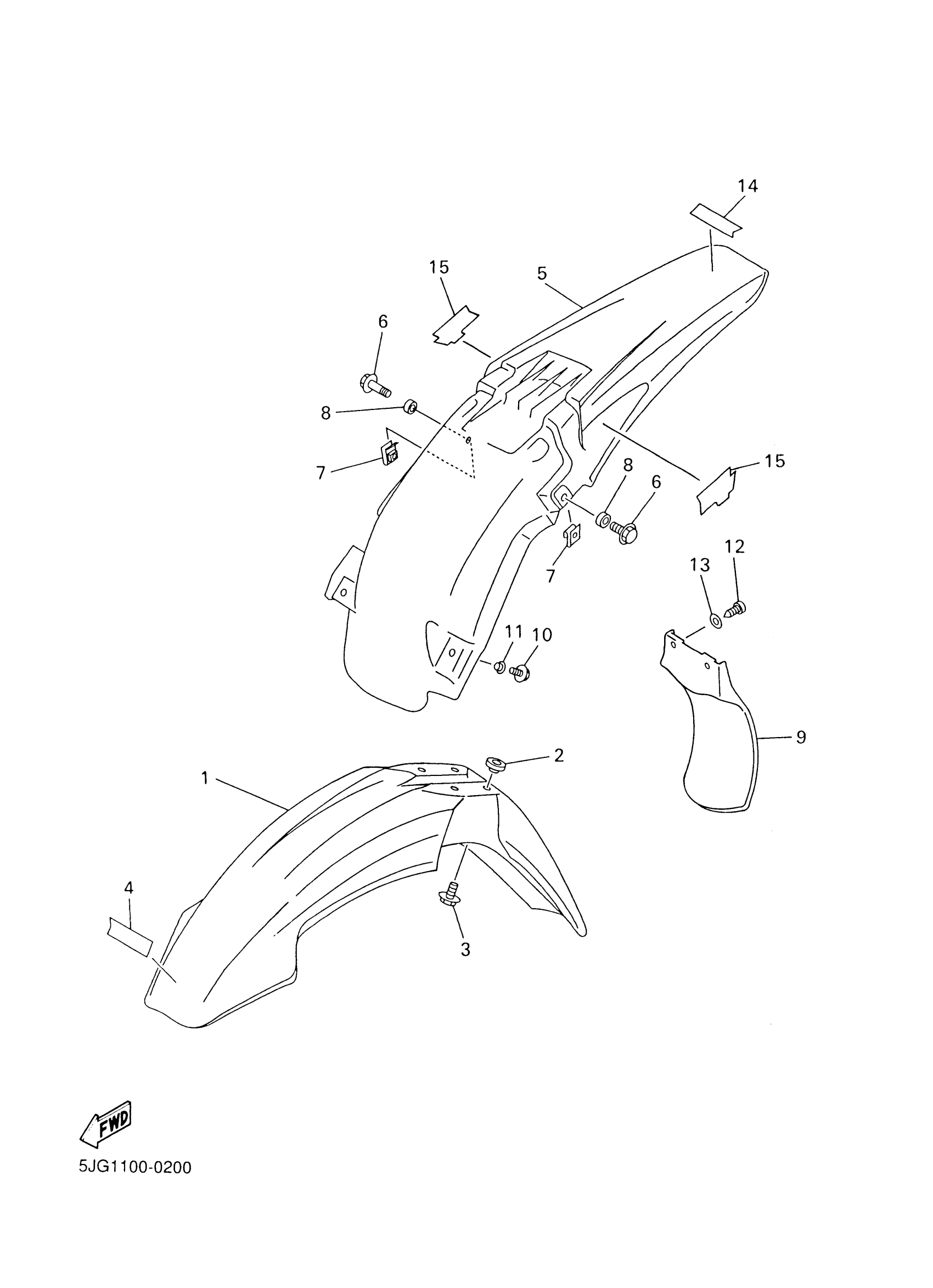

Yamaha YZ426FM (YZ426F) 5JG1 2000 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, WITH WASHER (30X)

EMBLEM, YAMAHA

FENDER, REAR

BOLT, FLANGE(4MY)

NUT, SPRING (26H)

COLLAR(4EW)

GUARD, FLAP

BOLT, FLANGE

COLLAR

SCREW, TRUSS TAP.

WASHER, PLATE

EMBLEM, YAMAHA

EMBLEM 1
