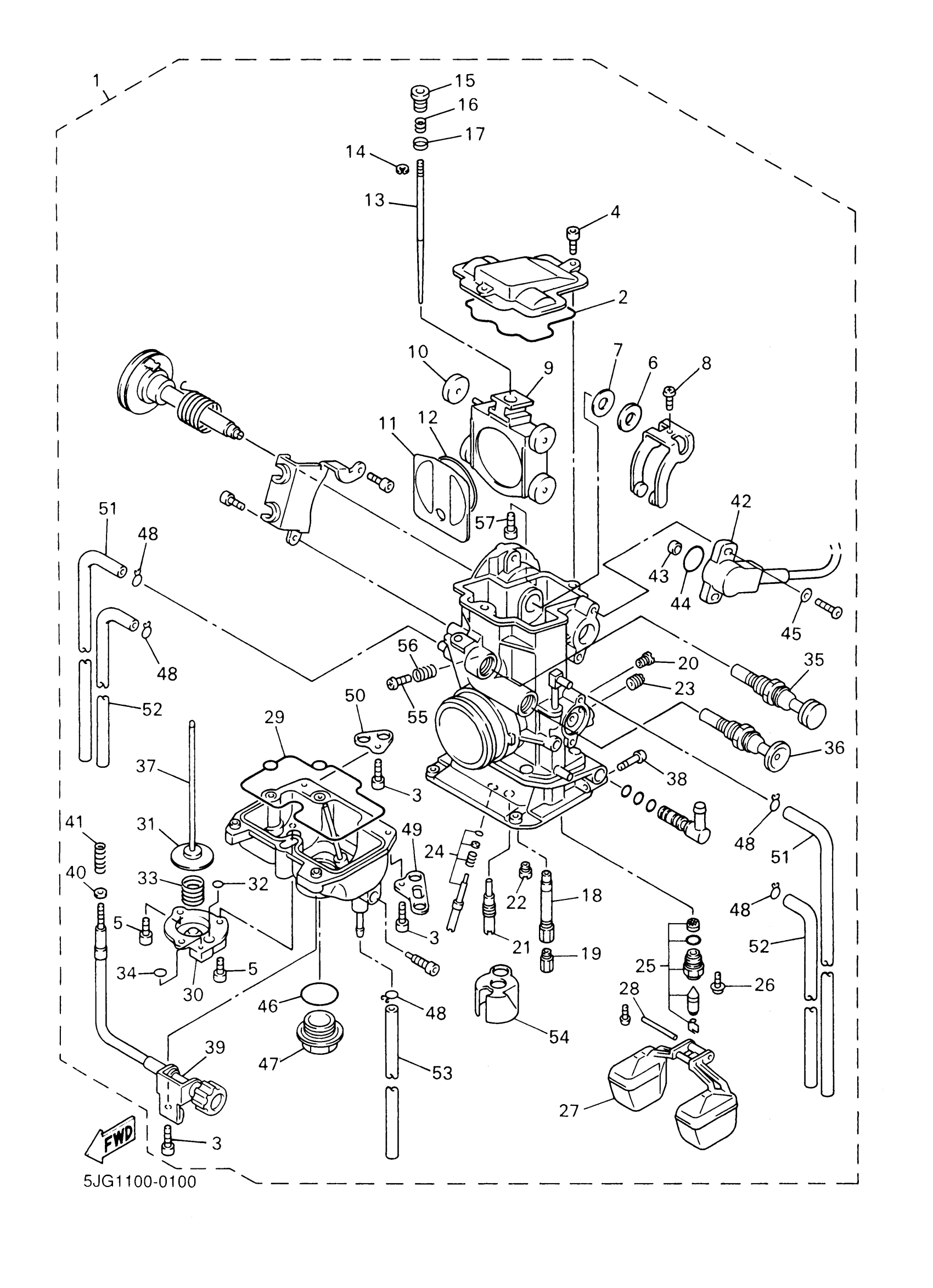

Yamaha YZ426FM (YZ426F) 5JG1 2000 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

5JG-14101-00-00

Unavailable

2

GASKET

5JG-14959-00-00

$27.99

3

BOLT, SOCKET

91317-04012-00

$8.49

4

BOLT, SOCKET

91317-04012-00

$8.49

5

BOLT,SOCKET

91317-04008-00

$8.49

6

WASHER, PLATE

90202-08045-00

$7.49

7

WASHER

5JG-14951-00-00

$4.84

8

SCREW, ADJUST

5JG-14522-09-00

$5.49

9

VALVE, VACUUM CONTROL

5JG-14388-00-00

$565.99

10

ROLLER

3TJ-14267-40-00

$17.49

11

. VALVE, NEEDLE

5JG-14546-00-00

Unavailable

12

SEAL

4FN-14997-00-00

$25.99

13

. NEEDLE (DVQ)

5JG-14916-D1-00

Unavailable

13

. NEEDLE (DVN)

5JG-14916-DN-00

Unavailable

13

. NEEDLE (DVP)

5JG-14916-DP-00

Unavailable

13

. NEEDLE (DVR)

5JG-14916-DR-00

Unavailable

13

. NEEDLE (DVS)

5JG-14916-DS-00

Unavailable

13

. NEEDLE (DVT)

5JG-14916-DT-00

Unavailable

13

. NEEDLE (DVU)

5JG-14916-DU-00

Unavailable

13

NEEDLE (#OBEKQ)

5JG-14916-E1-00

Unavailable

13

. NEEDLE (#OBEKN)

5JG-14916-EN-00

Unavailable

13

. NEEDLE (#OBEKP)

5JG-14916-EP-00

Unavailable

13

. NEEDLE (#OBEKR)

5JG-14916-ER-00

Unavailable

13

. NEEDLE (#OBEKS)

5JG-14916-ES-00

Unavailable

13

. NEEDLE (#OBEKT)

5JG-14916-ET-00

Unavailable

13

. NEEDLE (#OBEKU)

5JG-14916-EU-00

Unavailable

13

. NEEDLE (FVQ)

5JG-14916-F1-00

Unavailable

13

. NEEDLE (FVN)

5JG-14916-FN-00

Unavailable

13

. NEEDLE (FVP)

5JG-14916-FP-00

Unavailable

13

. NEEDLE (FVR)

5JG-14916-FR-00

Unavailable

13

. NEEDLE (FVS)

5JG-14916-FS-00

Unavailable

13

. NEEDLE (FVT)

5JG-14916-FT-00

Unavailable

13

. NEEDLE (FVU)

5JG-14916-FU-00

Unavailable

14

CLIP

3TJ-14159-40-00

Unavailable

15

SCREW, ADJUST

5JG-14521-00-00

Unavailable

16

SPRING

5JG-14275-00-00

Unavailable

17

COLLAR

5JG-14264-00-00

Unavailable

18

JET, NEEDLE

5JG-14947-01-00

Unavailable

19

JET, MAIN (#155)

4MX-14943-38-00

Unavailable

19

JET, MAIN (#160)

4MX-14943-39-00

Unavailable

19

JET, MAIN (#165)

4MX-14943-40-00

Unavailable

19

JET, MAIN (#170)

4MX-14943-41-00

Unavailable

19

JET, MAIN (#175)

4MX-14943-42-00

Unavailable

19

. JET, MAIN (#152)

4MX-14943-88-00

Unavailable

19

JET, MAIN (#158)

4MX-14943-89-00

Unavailable

19

JET, MAIN (#162)

4MX-14943-90-00

Unavailable

19

JET, MAIN (#168)

4MX-14943-91-00

Unavailable

19

JET, MAIN (#172)

4MX-14943-92-00

Unavailable

19

JET, MAIN (#178)

4MX-14943-93-00

Unavailable

20

JET (#200)

3TJ-14943-47-00

Unavailable

21

JET, SLOW (#35)

4MX-14948-01-00

Unavailable

21

JET, SLOW (#38)

4MX-14948-02-00

Unavailable

21

JET (#40)

4MX-14948-03-00

Unavailable

21

JET, PILOT (#42)

4MX-14948-04-00

Unavailable

21

JET, PILOT (#45)

4MX-14948-05-00

Unavailable

21

JET, PILOT (#48)

4MX-14948-06-00

Unavailable

21

JET, PILOT (#50)

4MX-14948-07-00

Unavailable

22

JET

3TJ-1494F-12-00

Unavailable

22

JET

3TJ-1494F-13-00

Unavailable

22

JET

3TJ-1494F-14-00

Unavailable

22

JET

3TJ-1494F-15-00

Unavailable

22

JET

3TJ-1494F-16-00

Unavailable

22

JET

3TJ-1494F-17-00

Unavailable

22

JET (#78)

3TJ-1494F-18-00

Unavailable

22

JET (#80)

3TJ-1494F-19-00

Unavailable

22

JET (#82)

3TJ-1494F-20-00

Unavailable

23

. JET (#100)

7A9-14943-27-00

Unavailable

24

PILOT SCREW SET

3TJ-14105-40-00

Unavailable

25

NEEDLE VALVE SET

5BE-14107-00-00

Unavailable

26

. SCREW

5BE-14216-00-00

Unavailable

27

FLOAT

4SR-14985-00-00

Unavailable

28

. PIN, FLOAT ARM

663-14548-00-00

Unavailable

29

GASKET, FLOAT CHAMBER

5JG-14984-00-00

Unavailable

30

COVER 1

3TJ-14293-40-00

Unavailable

31

DIAPHRAGM ASSY

5JG-14940-05-00

Unavailable

31

DIAPHRAGM ASSY

5JG-14940-17-00

Unavailable

31

DIAPHRAGM ASSY

5JG-14940-18-00

Unavailable

31

DIAPHRAGM ASSY

5JG-14940-19-00

Unavailable

32

GASKET

3TJ-14536-40-00

Unavailable

33

SPRING, DIAPHRAGM

3TJ-14933-40-00

Unavailable

34

. O-RING

6H4-14561-00-00

Unavailable

35

PLUNGER, STARTER

5JG-14171-00-00

Unavailable

36

PLUNGER, STARTER

5JG-14371-00-00

Unavailable

37

ROD, STARTER

5JG-14379-00-00

Unavailable

38

. SCREW, PAN HEAD

3TJ-14325-40-00

Unavailable

39

SCREW, THROTTLE

5JG-14922-00-00

Unavailable

40

WASHER, PLATE(3TJ)

90201-08410-00

Unavailable

41

. SPRING, THROTTLE STOP

4FN-14934-00-00

Unavailable

42

. THROTTLE SENSOR ASSY

5JG-85885-00-00

Unavailable

43

COLLAR

4TV-14534-00-00

Unavailable

44

O-RING

4TV-14562-00-00

Unavailable

45

WASHER(JF2)

92907-04600-00

Unavailable

46

O-RING

4MX-14561-00-00

Unavailable

47

PLUG, SCREW

4MX-14115-00-00

Unavailable

48

CLIP

3TJ-14137-40-00

Unavailable

49

. PLATE

5JG-14146-00-00

Unavailable

50

PLATE

5BE-14146-00-00

Unavailable

51

. PIPE

5JG-14197-00-00

Unavailable

52

PIPE

5JG-14197-10-00

Unavailable

53

. HOSE

5JG-14987-00-00

Unavailable

54

PLATE

5JG-14346-00-00

Unavailable

55

SCREW

5JG-14565-00-00

Unavailable

56

SPRING, ADJUST SCREW

5JG-14531-00-00

Unavailable

57

SCREW

5JG-14591-09-00

Unavailable
