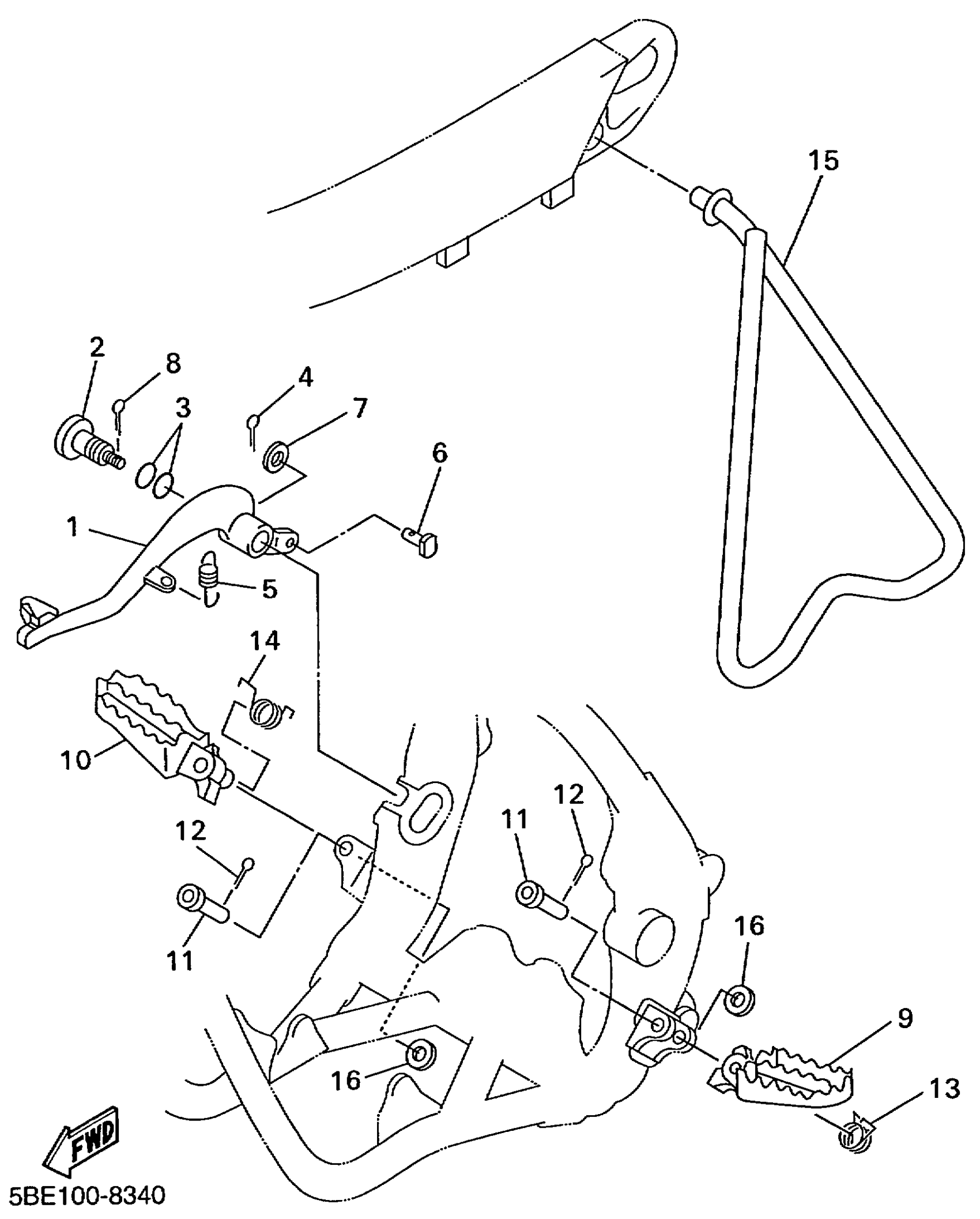

Yamaha YZ400FL (YZ400FL) 5GR1 1999 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

4XM-27200-21-00

$95.99

2

BOLT

4SS-27217-00-00

$42.99

3

O-RING (P95)

93210-11073-00

$7.49

4

PIN, COTTER (648)

91490-20015-00

$2.20

5

SPRING, TENSION(4SR)

90506-16500-00

$8.49

6

PIN, CLEVIS(2VM)

90240-08120-00

$13.49

7

.. WASHER, PLATE

92990-08600-00

Unavailable

8

CLIP(3YF)

90468-16191-00

$8.49

9

FOOTREST 1

5ET-27411-00-00

Unavailable

10

FOOTREST 2

5ET-27421-00-00

$108.99

11

PIN, CLEVIS

90240-10004-00

$13.99

12

PIN, COTTER

91490-25020-00

$3.19

13

SPRING, TORSION

90508-282B8-00

$14.99

14

SPRING, TORSION

90508-282B9-00

$14.99

15

STAND, SIDE

5ET-27311-00-00

Unavailable

16

WASHER, PLAIN(735)

90201-10119-00

Unavailable
