Partiron

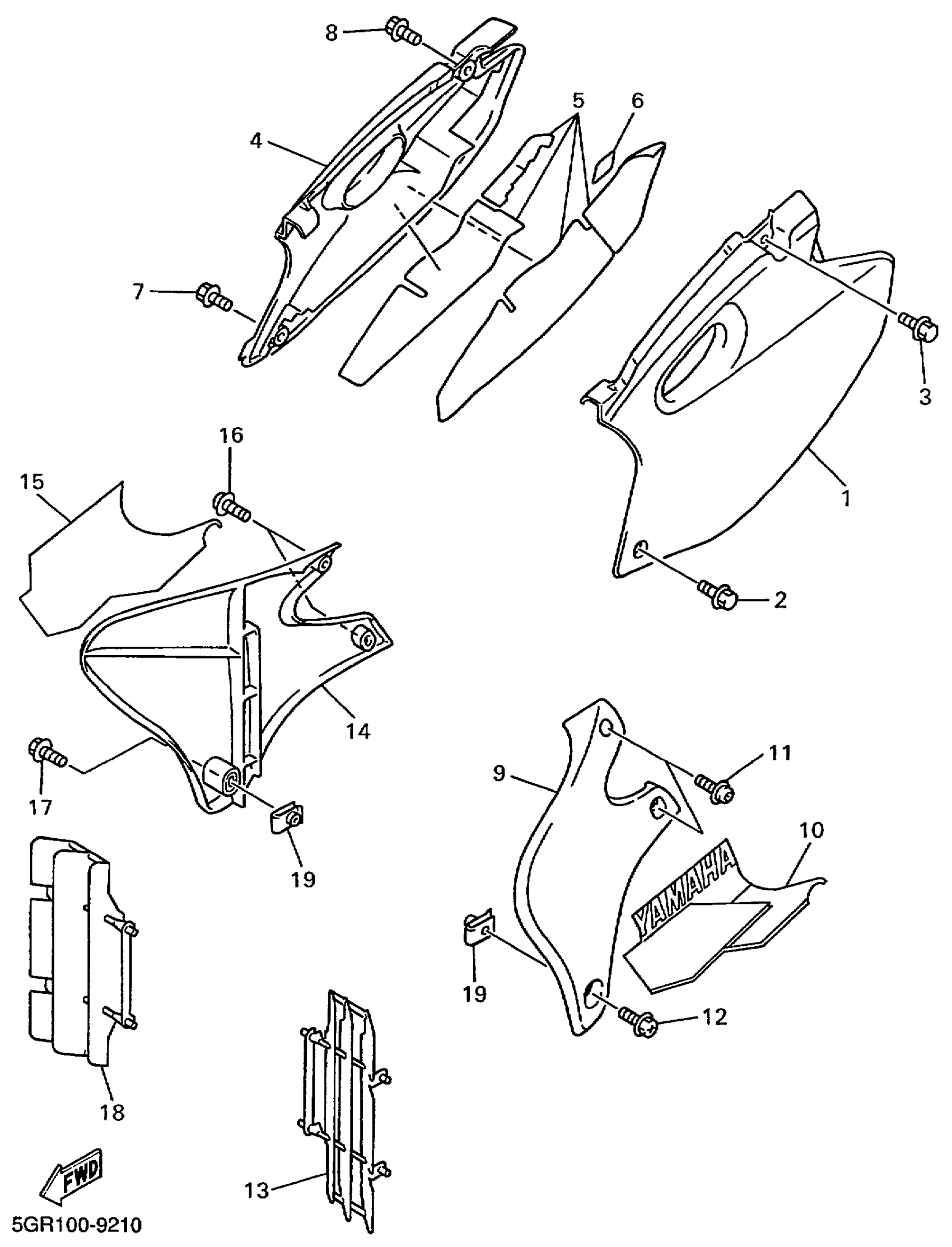

Yamaha YZ400FL (YZ400FL) 5GR1 1999 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

5BE-21711-00-00

Unavailable

2

BOLT, FLANGE

95817-06016-00

$2.75

3

BOLT, WITH WASHER

90119-08238-00

$4.29

4

COVER, SIDE 2

5BE-21721-00-00

Unavailable

5

INSULATOR, SIDE COVER

5SF-2174A-00-00

Unavailable

6

SEAL 1

3FY-21575-01-00

$10.99

7

BOLT, FLANGE

95817-06016-00

$2.75

8

BOLT, WITH WASHER

90119-08238-00

$4.29

9

COVER, SIDE 3

5BE-21731-10-00

Unavailable

10

GRAPHIC 1

5GR-2173E-00-00

Unavailable

11

SCREW, WITH WASHER(3YJ)

90159-06182-00

$9.49

12

SCREW, WITH WASHER (34K)

90159-06078-00

$9.49

13

PANEL 1

4EW-2172A-10-00

$30.99

14

COVER, SIDE 4

5BE-21741-10-00

Unavailable

15

GRAPHIC 2

5GR-2173F-00-00

Unavailable

16

SCREW, WITH WASHER(3YJ)

90159-06182-00

$9.49

17

SCREW, WITH WASHER (34K)

90159-06078-00

$9.49

18

PANEL 1

4EW-2172A-10-00

$30.99

19

NUT, SPRING(4ES)

90183-06069-00

Unavailable
