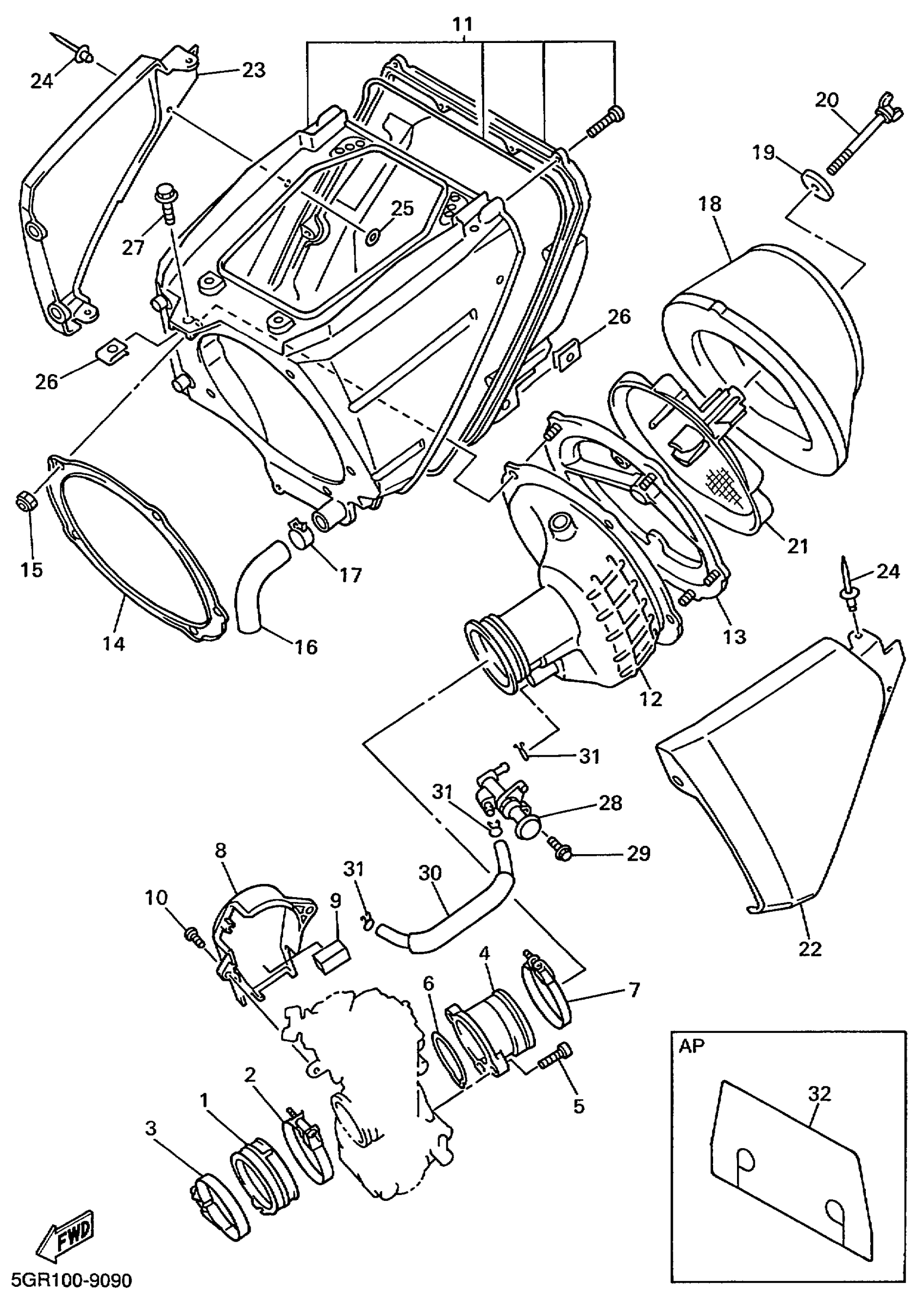

Yamaha YZ400FL (YZ400FL) 5GR1 1999 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 3

5BE-13597-01-00

$58.99

2

HOSE CLAMP ASSY

90450-57010-00

$20.99

3

HOSE CLAMP ASSY

90450-62006-00

$12.49

4

JOINT, AIR FILTER 1

5BE-1440F-00-00

Unavailable

5

BOLT,SOCKET

91317-05014-00

$8.49

6

O-RING

4FN-14561-00-00

$13.49

7

HOSE CLAMP ASSY

90450-62006-00

$12.49

8

COVER 1

5BE-14293-00-00

Unavailable

9

DAMPER

5BF-14409-00-00

$0.99

10

BOLT

90111-06017-00

$5.49

11

AIR CLEANER CASE ASSY

5JG-14401-00-00

Unavailable

12

JOINT, AIR CLEANER 1

5BE-14453-00-00

Unavailable

13

HOLDER,GUIDE

3JD-14459-01-00

Unavailable

14

PLATE

5MV-14477-00-00

Unavailable

15

NUT, U

95617-05100-00

$9.49

16

PIPE, DRAIN

5BE-1443E-00-00

Unavailable

17

CLIP(3TB)

90467-17128-00

Unavailable

18

ELEMENT, AIR CLEANER

4XM-14451-01-00

Unavailable

19

WASHER (4H7)

90209-06096-00

Unavailable

20

BOLT, WING

90122-06005-00

Unavailable

21

GUIDE

5BE-14458-10-00

Unavailable

22

COVER, CLEANER CASE 1

5BE-1441A-00-00

Unavailable

23

COVER, CLEANER CASE 2

5BE-1441E-00-00

Unavailable

24

RIVET (813)

90267-32070-00

Unavailable

25

WASHER, PLATE 8077743700

90201-03313-00

Unavailable

26

NUT, SPRING (26H)

90183-06023-00

Unavailable

27

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

28

VALVE ASSY

5GR-14340-00-00

Unavailable

29

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

30

PIPE

5BE-14349-00-00

Unavailable

31

CLIP

90467-090A2-00

Unavailable

32

COVER 1

5BE-14417-00-00

Unavailable
