1999 Yamaha YZ400FL (YZ400FL) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1999 Yamaha YZ400FL (YZ400FL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

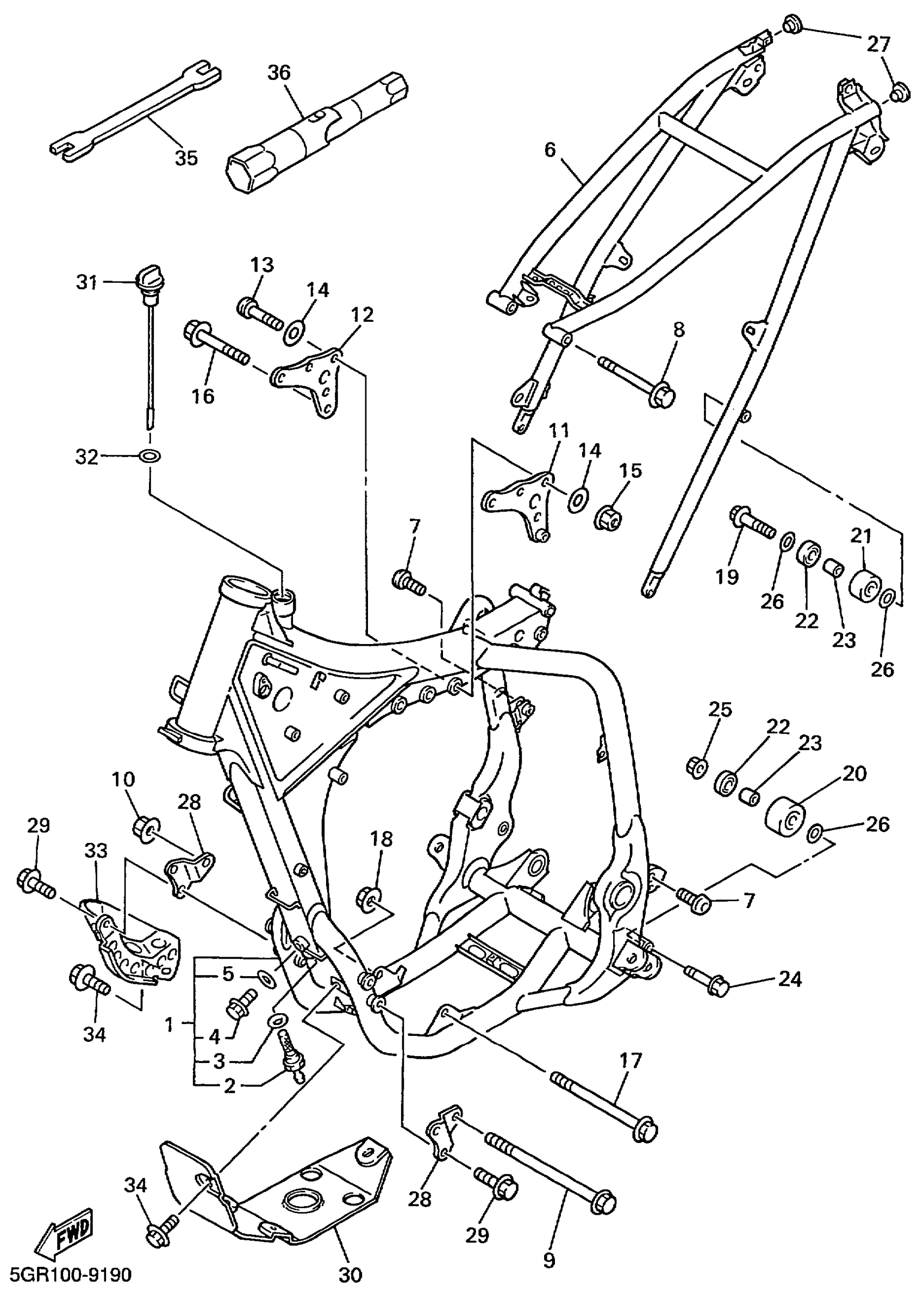

1999 Yamaha YZ400FL (YZ400FL) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME COMP.

5GR-21101-00-P0

1
Out of stock

2

. NET, FILTER

5BE-21756-00-00

1
Out of stock

3

GASKET (1J7)

90430-18130-00

1
Out of stock

4

BOLT, FLANGE

95817-08012-00

1
Out of stock

5

GASKET

90430-08119-00

1
Out of stock

6

REAR FRAME COMP.

5BE-21190-00-P0

1
Out of stock

7

BOLT, HEXAGON SOCKET HEAD(53Y)

90110-08096-00

1
Out of stock

8

BOLT (1W1)

90105-08099-00

1
Out of stock

9

BOLT, FLANGE

95817-10160-00

1
Out of stock

10

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

11

BRACKET, REAR UPPER 1

5GR-21425-01-00

1
Out of stock

12

BRACKET, REAR UPPER 1

5BE-21425-01-00

1
Out of stock

13

BOLT, BUTTON HEAD

92017-08055-00

1
Out of stock

14

WASHER, PLATE(3XP)

90201-086P8-00

1
Out of stock

15

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

16

BOLT, FLANGE(8AB)

95817-10050-00

—
Out of stock

17

BOLT, WASHER BASED(3RB)

90105-10733-00

—
Out of stock

18

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

19

BOLT, FLANGE(4MY)

95027-08040-00

—
Out of stock

20

TENSIONER

3JD-22178-20-00

—
Out of stock

21

TENSIONER

4EW-22178-01-00

—
Out of stock

22

BEARING (3X3)

93300-60804-00

—
Out of stock

23

COLLAR(1NL)

90387-086N4-00

—
Out of stock

24

BOLT, FLANGE

95027-08065-00

—
Out of stock

25

NUT, FLANGE(JN5)

95707-08500-00

—
Out of stock

26

WASHER, PLATE(3XP)

90201-086P8-00

1
Out of stock

27

GROMMET (1Y8)

90480-17218-00

—
Out of stock

28

BRACKET, FRONT LOWER 1

5BE-21417-00-00

1
Out of stock

29

BOLT, FLANGE(JN5)

95817-08016-00

—
Out of stock

30

PROTECTOR, ENGINE

5BE-21471-00-00

1
Out of stock

31

PLUG, OIL LEVEL

5BE-15362-00-00

1
Out of stock

32

O-RING (646)

93210-19123-00

—
Out of stock

33

GUARD, ENGINE 1

5TA-2147A-00-00

1
Out of stock

34

BOLT, SMALL FLANGE

95027-08012-00

—
Out of stock

35

WRENCH, HEXAGON

5ET-28166-10-00

—
Out of stock

36

BOX, SPARK PLUG

5BE-2814F-00-00

—
Out of stock
