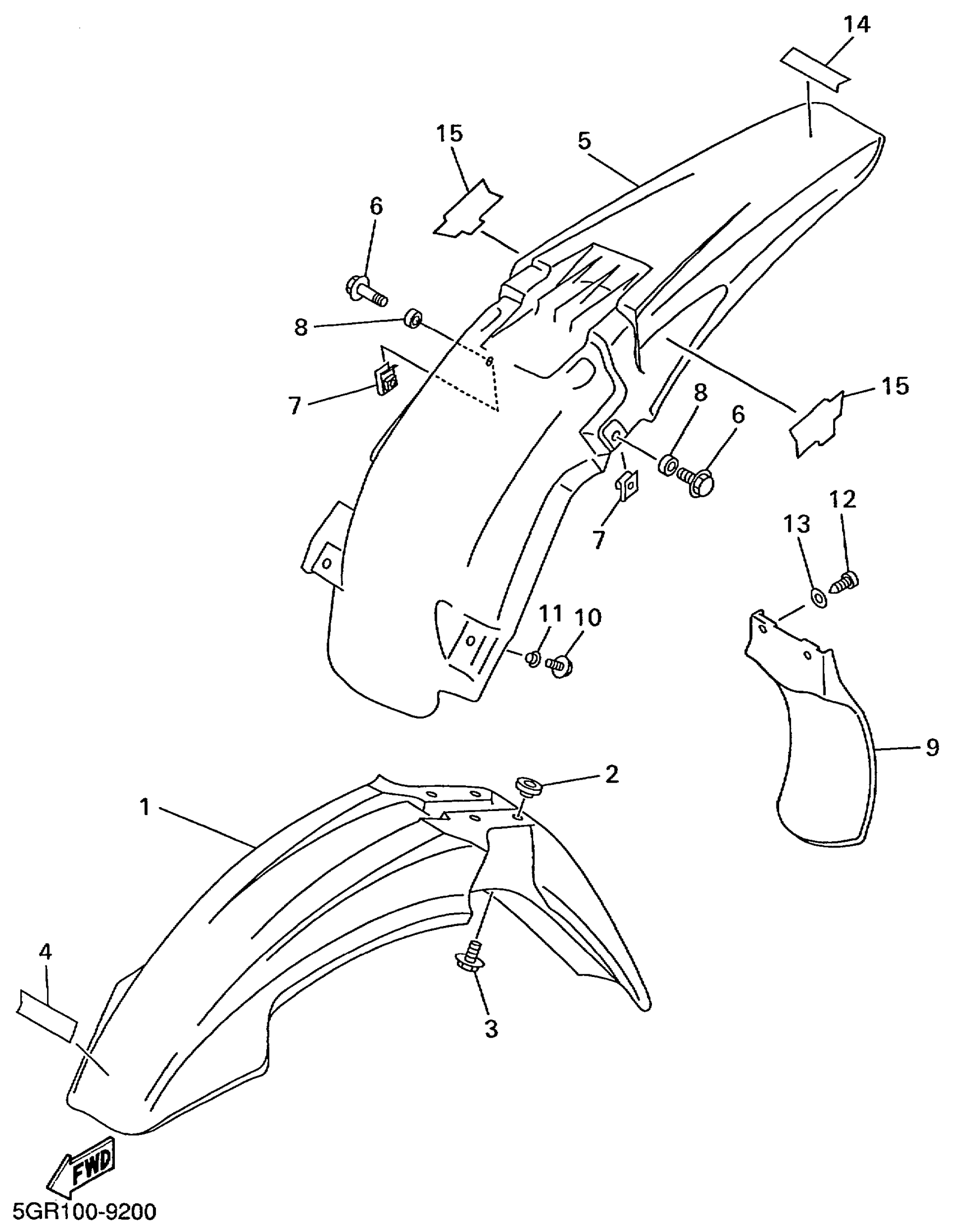

Yamaha YZ400FL (YZ400FL) 5GR1 1999 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

4DA-21511-20-00

Unavailable

2

COLLAR

3JD-21748-00-00

$5.49

3

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

4

EMBLEM, YAMAHA

99241-00080-00

$13.99

5

FENDER, REAR

5BE-21611-10-00

$59.99

6

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

7

NUT, SPRING (26H)

90183-06023-00

$9.49

8

COLLAR(4EW)

90387-0701A-00

$9.49

9

GUARD, FLAP

5BE-21642-00-00

$45.99

10

BOLT, FLANGE(4DU)

95027-06014-00

$8.49

11

COLLAR

90387-06009-00

$10.49

12

SCREW, TRUSS TAP.

97707-60016-00

$1.70

13

WASHER, PLATE

90201-06557-00

$3.30

14

EMBLEM, YAMAHA

99241-00080-00

$13.99

15

EMBLEM 1

5GR-2163G-00-00

Unavailable
