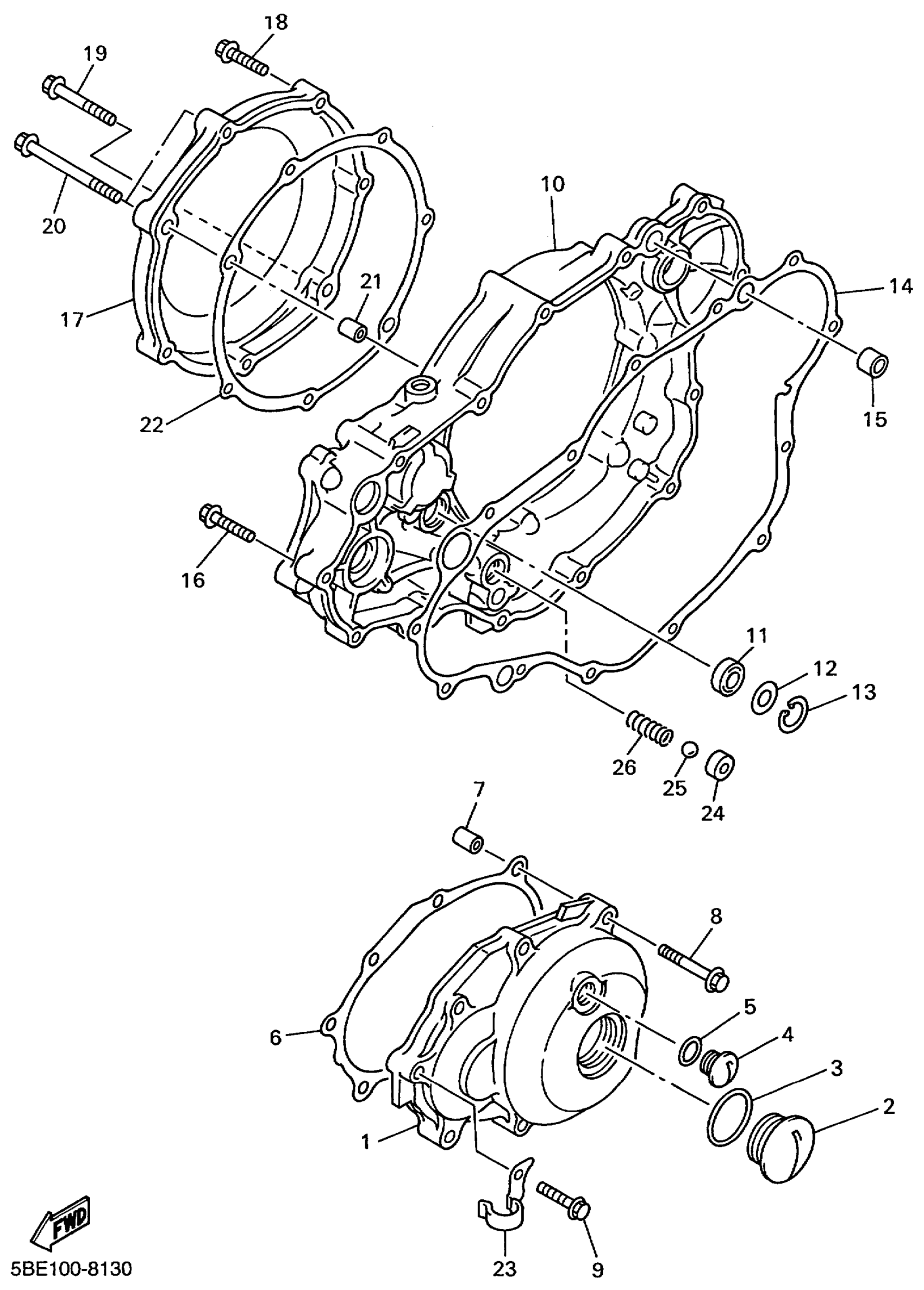

Yamaha YZ400FL (YZ400FL) 5GR1 1999 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5BE-15411-00-00

Unavailable

2

PLUG, STRAIGHT SCREW(3AW)

90340-32123-00

$18.43

3

O-RING (341)

93210-32172-00

$5.39

4

PLUG, STRAIGHT SCREW(3RW)

90340-14128-00

$11.11

5

O-RING (2H9)

93210-14369-00

$5.42

6

GASKET, CRANKCASE COVER 1

5BE-15451-00-00

$14.07

7

PIN, DOWEL(3XW)

91808-16023-00

$5.26

8

BOLT, SMALL FLANGE

95027-06040-00

$2.31

9

BOLT, SMALL FLANGE

95027-06030-00

$3.40

10

COVER, CRANKCASE 3

5BE-15431-00-00

Unavailable

11

OIL SEAL(4GY)

93101-14164-00

$9.05

12

WASHER (566)

90201-15701-00

$5.75

13

CIRCLIP

99009-22500-00

$5.76

14

GASKET, CRANKCASE COVER 3

5BE-15462-00-00

$28.15

15

PIN, DOWEL(J38)

91812-16001-00

$4.82

16

BOLT, SMALL FLANGE

95027-06030-00

$3.40

17

COVER, GENERATOR

5BE-15415-00-00

Unavailable

18

BOLT, SMALL FLANGE

95027-06030-00

$3.40

19

BOLT, SMALL FLANGE

95027-06040-00

$2.31

20

BOLT, WASHER BASED

90105-065A1-00

Unavailable

21

PIN, DOWEL(3XW)

91808-16023-00

$5.26

22

GASKET 1

5BE-15453-00-00

Unavailable

23

CLAMP

90462-10241-00

Unavailable

24

SEAT, CHECK BALL

583-13113-00-00

Unavailable

25

BALL

93503-08007-00

Unavailable

26

SPRING, COMPRESSION(1VJ)

90501-043E0-00

Unavailable
