1998 Yamaha YZ400 (YZ400FK) Starter Diagram

← All diagrams

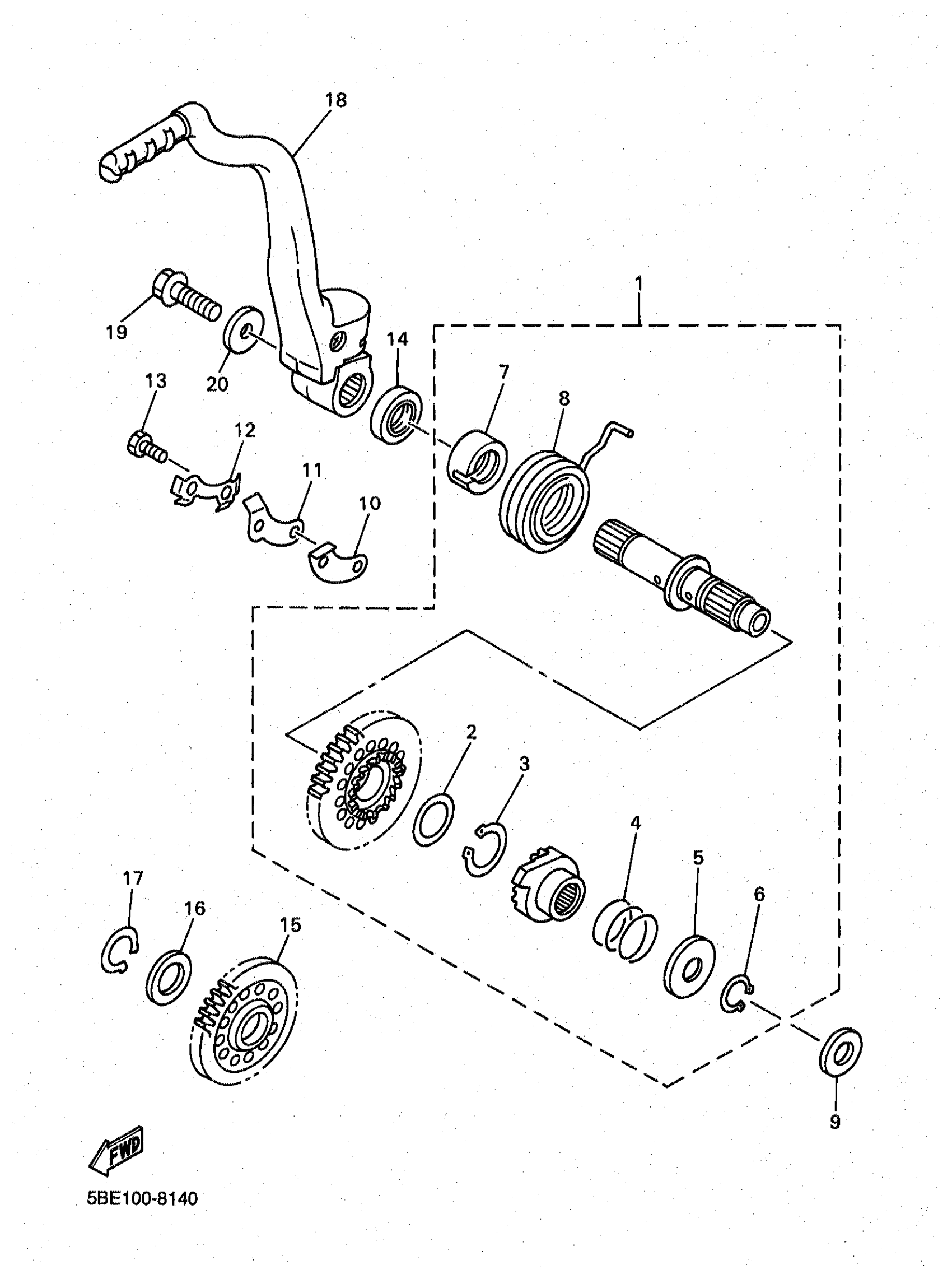

Find the part on the Starter diagram for your 1998 Yamaha YZ400 (YZ400FK), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha YZ400 (YZ400FK) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK SHAFT ASSY

5GR-15601-00-00

1
Out of stock

2

WASHER, PLATE (2K7)

90201-20685-00

1

$5.69

In stock

3

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

4

SPRING COMPRESSION168156750000

90501-16107-00

—
Out of stock

5

WASHER, PLATE(4GL)

90201-167P7-00

1

$8.12

In stock

6

CIRCLIP(13T)

99009-16400-00

1

$5.35

In stock

7

. GUIDE, SPRING

5BE-15664-00-00

1
Out of stock

8

SPRING, TORSION(2VM)

90508-30743-00

1

$16.62

In stock

9

WASHER, PLATE (25H)

90201-162H4-00

1

$7.92

In stock

10

STOPPER

5BE-15668-00-00

1
Out of stock

11

GUIDE, RATCHET WHEEL

5BE-15674-00-00

1
Out of stock

12

WASHER, LOCK

5BE-15686-01-00

1
Out of stock

13

BOLT, HEXAGON

97017-06016-00

1

$6.18

In stock

14

OIL SEAL (20X30X7-371)

93102-20108-00

1

$9.17

In stock

15

GEAR, KICK IDLE

5BE-15651-00-00

1
Out of stock

16

WASHER PLATE 328171160000

90201-20276-00

—
Out of stock

17

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

18

KICK CRANK ASSY

5BE-15620-02-00

—
Out of stock

19

BOLT, FLANGE(8AB)

95817-08020-00

—

$7.00

In stock

20

WASHER, PLATE (8L8)

90201-087A9-00

—

$3.74

In stock
