1998 Yamaha YZ400 (YZ400FK) Electrical 1 Diagram

← All diagrams

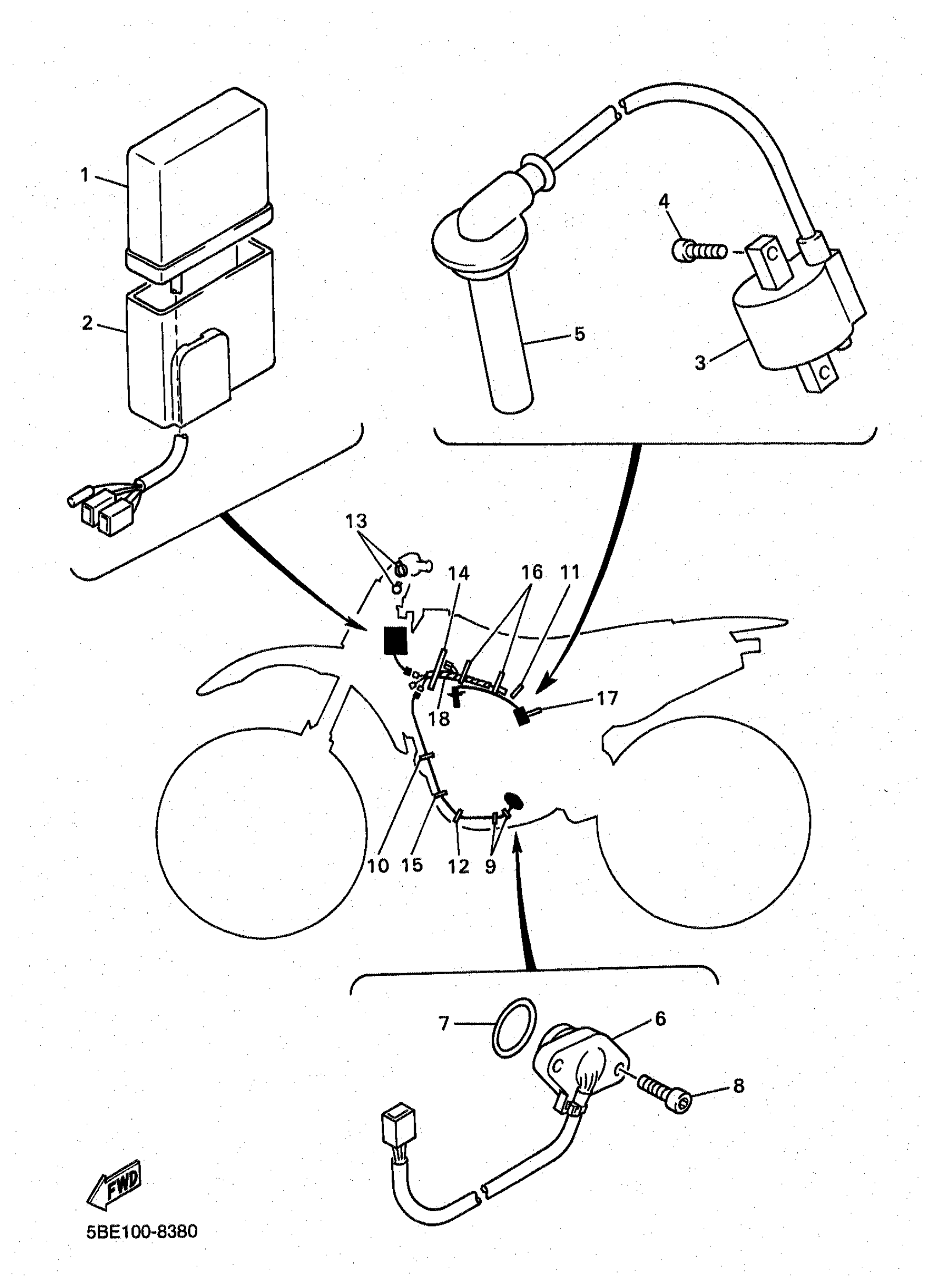

Find the part on the Electrical 1 diagram for your 1998 Yamaha YZ400 (YZ400FK), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha YZ400 (YZ400FK) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

C.D.I. UNIT ASSY

5GR-85540-00-00

1
Out of stock

2

BAND

5BE-85546-00-00

1
Out of stock

3

IGNITION COIL ASSY

4MX-82310-02-00

—
Out of stock

4

BOLT,SOCKET

91317-06016-00

1

$1.16

In stock

5

PLUG CAP ASSY

5BE-82370-00-00

—
Out of stock

6

NEUTRAL SWITCH ASSY

5BE-82540-03-00

1
Out of stock

7

O-RING

93210-21001-00

1

$4.77

In stock

8

SCREW, BINDING

90154-05046-00

1
Out of stock

9

CLAMP

90464-16061-00

1

$6.78

In stock

10

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

11

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

12

CLAMP, HOSE(3KJ)

90460-15126-00

1

$5.63

In stock

13

CLAMP

90464-13077-00

1

$6.68

In stock

14

CLAMP(MF1)

90464-15152-00

1

$4.37

In stock

15

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

16

CLAMP(MF1)

90464-15152-00

1

$4.37

In stock

17

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

18

WIRE, SUB LEAD

5BE-82509-00-00

1
Out of stock
