1998 Yamaha YZ400 (YZ400FK) Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 1998 Yamaha YZ400 (YZ400FK), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

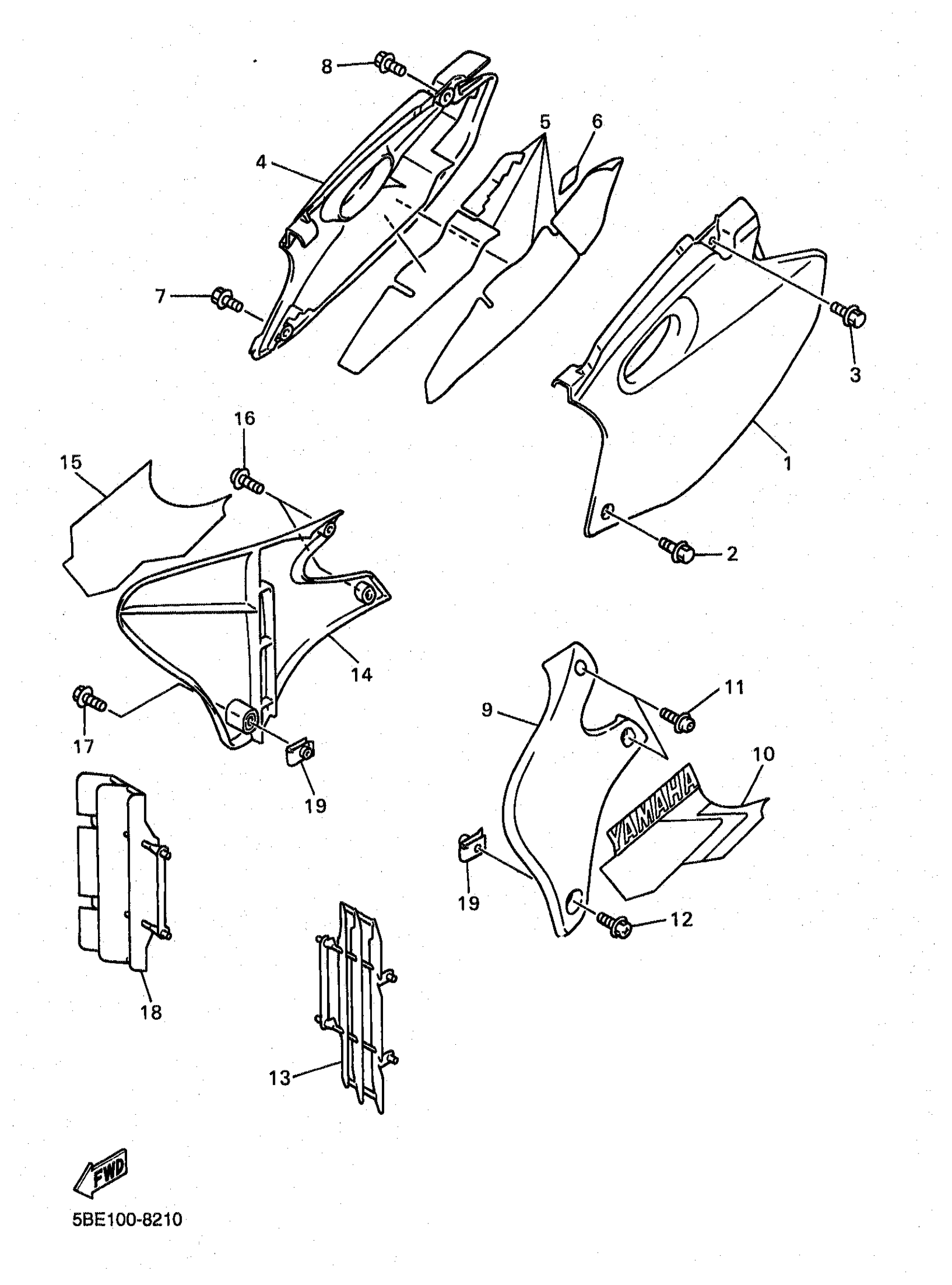

1998 Yamaha YZ400 (YZ400FK) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

5BE-21711-00-00

—
Out of stock

2

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

3

BOLT, WITH WASHER

90119-08238-00

1

$3.09

In stock

4

COVER, SIDE 2

5BE-21721-00-00

—
Out of stock

5

INSULATOR, SIDE COVER

5SF-2174A-00-00

1
Out of stock

6

SEAL 1

3FY-21575-01-00

1
Out of stock

7

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

8

BOLT, WITH WASHER

90119-08238-00

1

$3.09

In stock

9

COVER, SIDE 3

5BE-21731-10-00

1
Out of stock

10

GRAPHIC 1

5BE-2173E-01-00

1
Out of stock

11

SCREW, WITH WASHER(3YJ)

90159-06182-00

1

$6.42

In stock

12

SCREW, WITH WASHER (34K)

90159-06078-00

1
Out of stock

13

PANEL 1

4EW-2172A-10-00

1
Out of stock

14

COVER, SIDE 4

5BE-21741-10-00

1
Out of stock

15

GRAPHIC 2

5BE-2173F-01-00

1
Out of stock

16

SCREW, WITH WASHER(3YJ)

90159-06182-00

1

$6.42

In stock

17

SCREW, WITH WASHER (34K)

90159-06078-00

1
Out of stock

18

PANEL 1

4EW-2172A-10-00

1
Out of stock

19

NUT, SPRING(4ES)

90183-06069-00

1

$5.93

In stock
