1998 Yamaha YZ400 (YZ400FK) Frame Diagram

← All diagrams

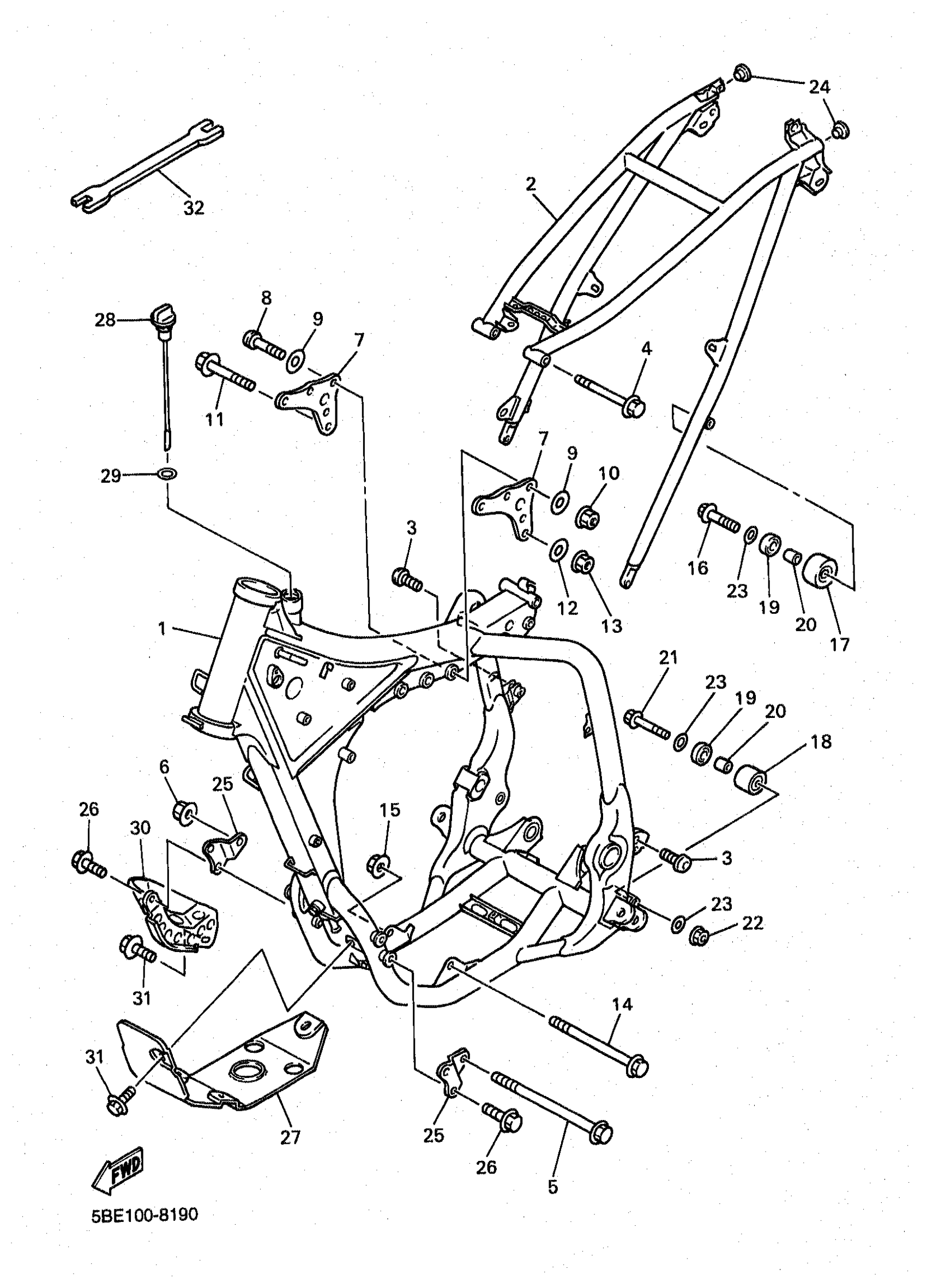

Find the part on the Frame diagram for your 1998 Yamaha YZ400 (YZ400FK), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha YZ400 (YZ400FK) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME COMP.

5BE-21101-00-P0

1
Out of stock

2

REAR FRAME COMP.

5BE-21190-00-P0

1
Out of stock

3

BOLT, HEXAGON SOCKET HEAD(53Y)

90110-08096-00

1
Out of stock

4

BOLT (1W1)

90105-08099-00

1

$5.34

In stock

5

BOLT, FLANGE

95817-10160-00

1
Out of stock

6

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

7

BRACKET, REAR UPPER 1

5BE-21425-01-00

1
Out of stock

8

BOLT, BUTTON HEAD

92017-08055-00

1
Out of stock

9

WASHER, PLATE(3XP)

90201-086P8-00

1

$4.35

In stock

10

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

11

BOLT, FLANGE

95027-10055-00

1
Out of stock

12

WASHER, PLAIN(3BM)

92907-10200-00

1
Out of stock

13

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

14

BOLT, WASHER BASED(3RB)

90105-10733-00

1
Out of stock

15

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

16

BOLT, FLANGE(4MY)

95027-08040-00

—
Out of stock

17

TENSIONER

3JD-22178-20-00

—

$37.74

In stock

18

TENSIONER

4EW-22178-01-00

—
Out of stock

19

BEARING (3X3)

93300-60804-00

—

$11.18

In stock

20

COLLAR(1NL)

90387-086N4-00

—

$8.31

In stock

21

BOLT, FLANGE

95027-08065-00

—
Out of stock

22

NUT, FLANGE(JN5)

95707-08500-00

—

$1.49

In stock

23

WASHER, PLATE(3XP)

90201-086P8-00

1

$4.35

In stock

24

PLUG(55K)

90338-16148-00

—

$9.89

In stock

25

BRACKET, FRONT LOWER 1

5BE-21417-00-00

1
Out of stock

26

BOLT, FLANGE(JN5)

95817-08016-00

—

$4.12

In stock

27

PROTECTOR, ENGINE

5BE-21471-00-00

1
Out of stock

28

PLUG, OIL LEVEL

5BE-15362-00-00

1
Out of stock

29

O-RING (646)

93210-19123-00

—

$6.91

In stock

30

GUARD, ENGINE 1

5TA-2147A-00-00

1
Out of stock

31

BOLT, SMALL FLANGE

95027-08012-00

—

$6.89

In stock

32

WRENCH, HEXAGON

56A-28166-00-00

1
Out of stock
