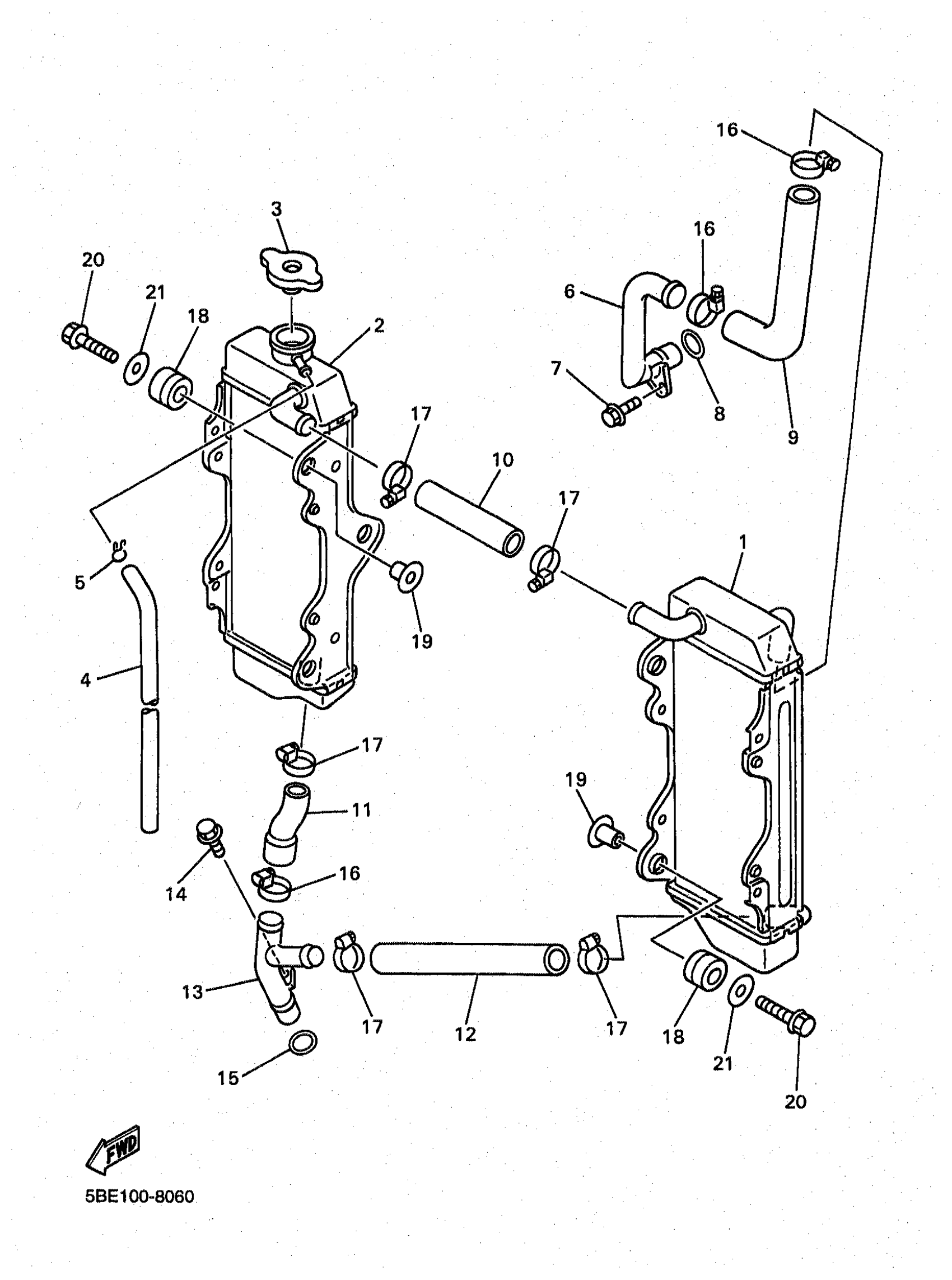

Yamaha YZ400FK (YZ400) 1998 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSEMBLY

5BE-1240A-00-00

Unavailable

2

RADIATOR ASSEMBLY

5BE-12461-00-00

Unavailable

3

CAP, RADIATOR

4FL-12462-00-00

$62.99

4

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

5

CLIP

90467-090A2-00

$4.41

6

PIPE 1

5BE-12481-10-00

Unavailable

7

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

8

O-RING (1L9)

93210-18322-00

$5.60

9

HOSE 1

5BE-12576-00-00

Unavailable

10

HOSE 2

5BE-12577-01-00

Unavailable

11

HOSE 3

5BE-12578-00-00

Unavailable

12

HOSE 4

5BE-12579-02-00

Unavailable

13

PIPE 2

5BE-12482-00-00

Unavailable

14

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

15

O-RING (1L9)

93210-18322-00

$5.60

16

HOSE CLAMP ASSY

90450-28001-00

Unavailable

17

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

18

GROMMET(3RB)

90480-15528-00

Unavailable

19

COLLAR

90387-0614M-00

Unavailable

20

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

21

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable
