FRONT FORK

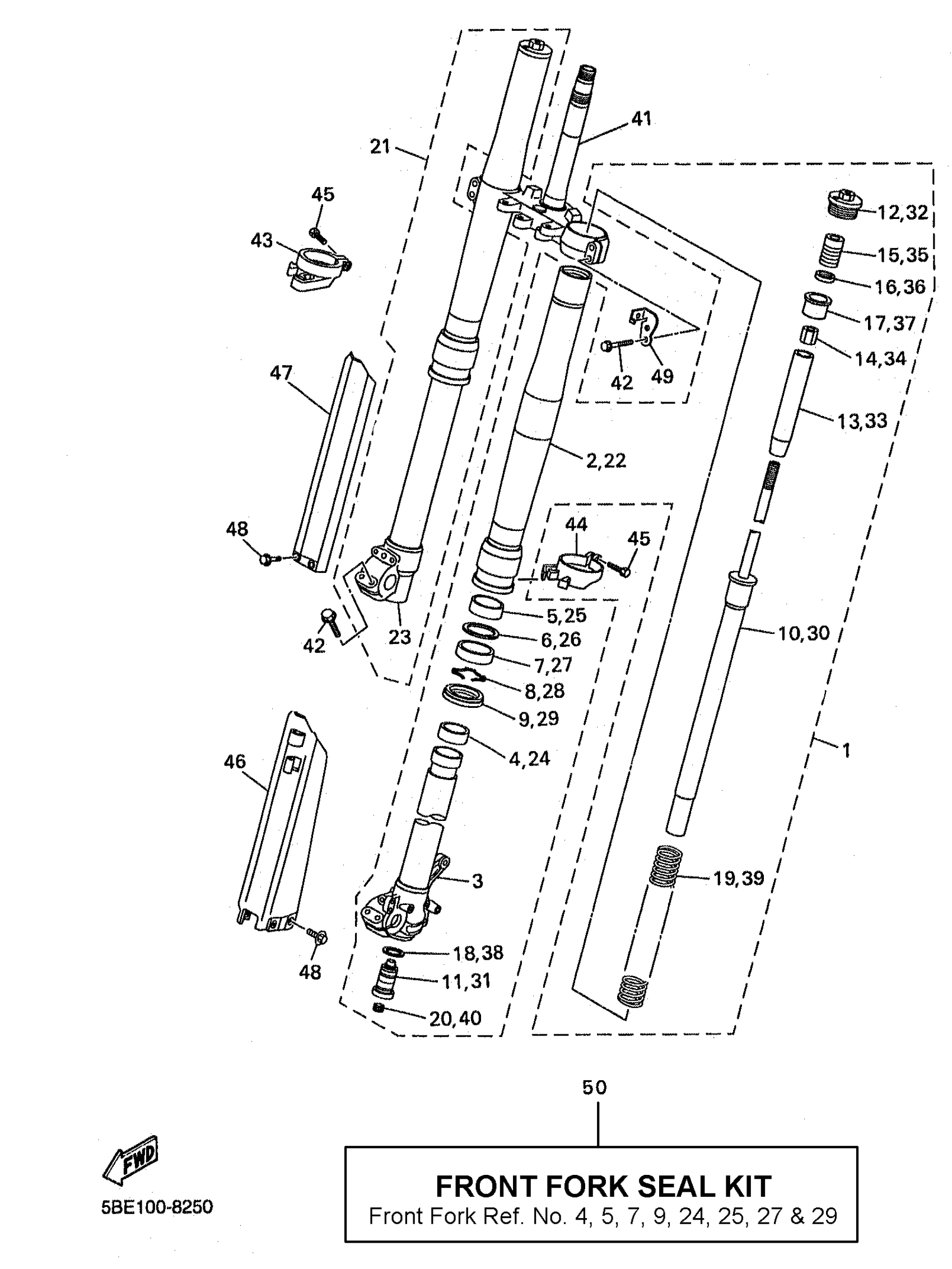

Yamaha YZ400FK (YZ400) 1998 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY (L.H)
5BE-23102-L0-00
Unavailable
2
. TUBE, OUTER (RIGHT)
5DH-23136-L0-00
Unavailable
3
. INNER TUBE COMP 2
5DH-23120-L0-00
Unavailable
5
METAL, SLIDE 1
4SS-23125-L0-00
Unavailable
10
. CYLINDER COMP, FRONT FORK
5BE-23170-L0-00
Unavailable
11
. VALVE COMP
5BE-2316A-L0-00
Unavailable
12
. BOLT, CAP
5DH-23111-L0-00
Unavailable
13
SEAT, SPRING UPPER
5DH-23142-L0-00
Unavailable
14
. NUT, SPECIAL
5DH-23393-L0-00
Unavailable
15
RUBBER
5DH-23195-L0-00
Unavailable
16
WASHER, SPRING UPPER
5DH-23149-L0-00
Unavailable
17
. SPACER
5DH-23118-L0-00
Unavailable
18
GASKET
4SS-23158-L0-00
Unavailable
19
SPRING (K=4.41N/MM)
5BE-23141-L0-00
Unavailable
20
PLUG
3JD-2312G-L0-00
Unavailable
21
FRONT FORK ASSEMBLY (R.H)
5BE-23103-L0-00
Unavailable
22
. TUBE, OUTER (RIGHT)
5DH-23136-L0-00
Unavailable
23
INNER TUBE COMP.1
5BF-23110-L0-00
Unavailable
25
METAL, SLIDE 1
4SS-23125-L0-00
Unavailable
30
. CYLINDER COMP, FRONT FORK
5BE-23170-L0-00
Unavailable
31
. VALVE COMP
5BE-2316A-L0-00
Unavailable
32
. BOLT, CAP
5DH-23111-L0-00
Unavailable
33
SEAT, SPRING UPPER
5DH-23142-L0-00
Unavailable
34
. NUT, SPECIAL
5DH-23393-L0-00
Unavailable
35
RUBBER
5DH-23195-L0-00
Unavailable
36
WASHER, SPRING UPPER
5DH-23149-L0-00
Unavailable
37
. SPACER
5DH-23118-L0-00
Unavailable
38
GASKET
4SS-23158-L0-00
Unavailable
39
SPRING (K=4.41N/MM)
5BE-23141-L0-00
Unavailable
40
PLUG
3JD-2312G-L0-00
Unavailable
41
UNDER BRACKET COMP.
5DJ-23340-L0-00
Unavailable
42
BOLT, FLANGE(4KG)
95024-08040-00
Unavailable
43
PROTECTER GUIDE COMP., 2
4SS-2314G-L0-00
Unavailable
44
PROTECTER GUIDE COMP., 1
5DH-2314F-L0-00
Unavailable
45
BOLT 1
4SS-23346-L0-00
Unavailable
46
PROTECTER COMP., 2
5DH-2314J-00-00
Unavailable
47
PROTECTER COMP., 1
5DH-2314H-00-00
Unavailable
48
BOLT 2
3SP-23356-L0-00
Unavailable
49
GUIDE, CABLE
4EW-2331E-L1-00
Unavailable
50
FORK SEAL KIT (TWO FORKS)
5ET-W003B-00-00
Unavailable
