Description

Price

1

FENDER, FRONT

4DA-21511-20-00

Unavailable

2

COLLAR

3JD-21748-00-00

$5.49

3

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

4

EMBLEM, YAMAHA

99241-00080-00

$13.99

5

FENDER, REAR

5BE-21611-10-00

$59.99

6

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

7

NUT, SPRING (26H)

90183-06023-00

$9.49

8

COLLAR(4EW)

90387-0701A-00

$9.49

9

GUARD, FLAP

5BE-21642-00-00

$45.99

10

BOLT, FLANGE(4DU)

95027-06014-00

$8.49

11

COLLAR

90387-06009-00

$10.49

12

SCREW, TRUSS TAP.

97707-60016-00

$1.70

13

WASHER, PLATE

90201-06557-00

$3.30

14

EMBLEM, YAMAHA

99241-00080-00

$13.99

15

EMBLEM 1

5BE-2163G-00-00

Unavailable

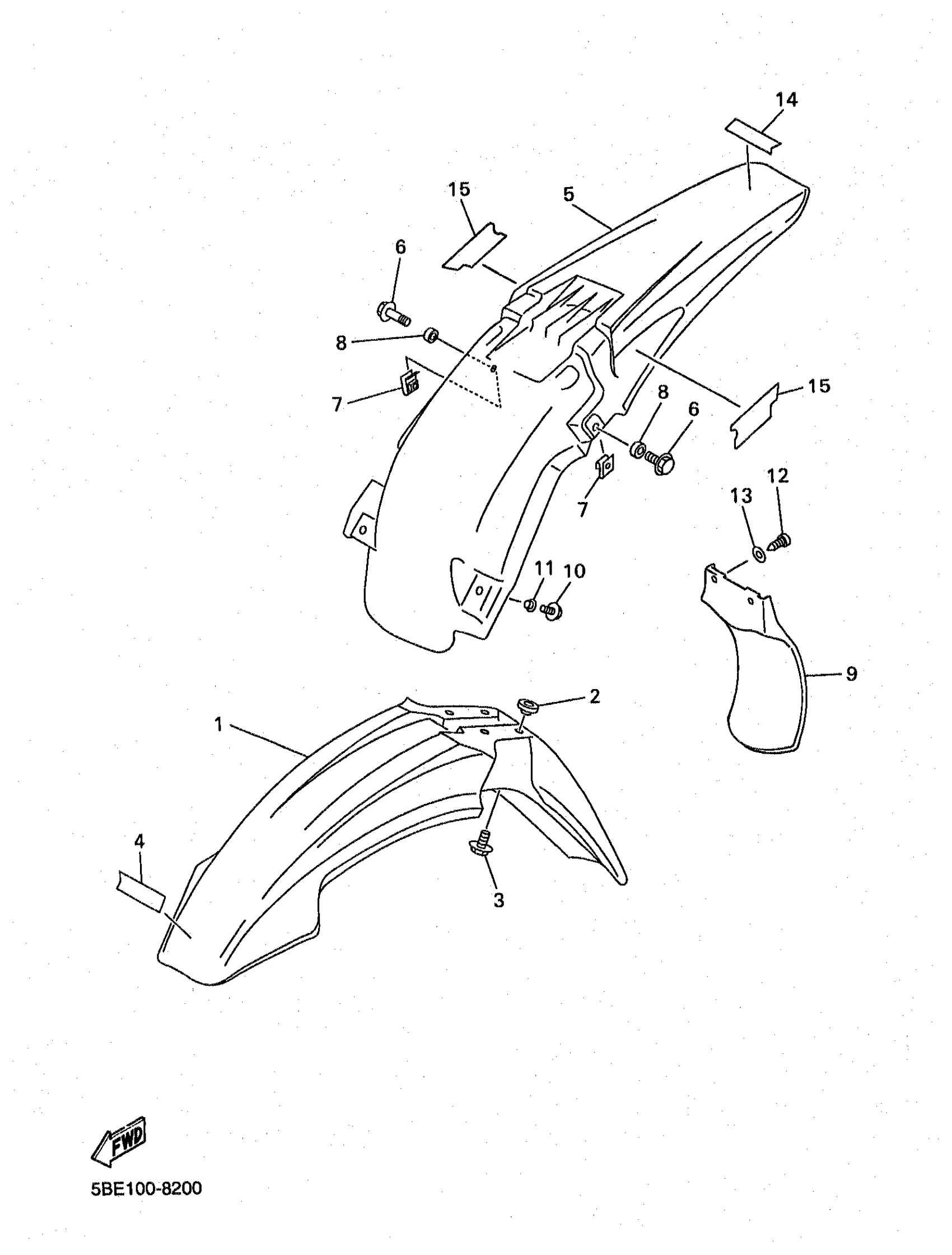

Yamaha YZ400FK (YZ400) 1998 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, WITH WASHER (30X)

EMBLEM, YAMAHA

FENDER, REAR

BOLT, FLANGE(4MY)

NUT, SPRING (26H)

COLLAR(4EW)

GUARD, FLAP

BOLT, FLANGE(4DU)

COLLAR

SCREW, TRUSS TAP.

WASHER, PLATE

EMBLEM, YAMAHA

EMBLEM 1
