Description

Price

1

GEAR, PRIMARY DRIVE

5JG-16111-00-00

Unavailable

2

WASHER, LOCK(3LD)

90215-21290-00

$8.49

3

NUT (2K7)

90179-20255-00

$11.49

4

PRIMARY DRIVEN GEAR COMP.

5BE-16150-00-00

Unavailable

5

BOSS, CLUTCH

2JN-16371-00-00

Unavailable

6

PLATE, PRESSURE 1

3YF-16351-00-00

$68.99

7

PLATE, CLUTCH 2

360-16325-10-00

$35.99

8

PLATE, FRICTION

5BE-16321-00-00

$23.99

9

SPRING, COMPRESSION

90501-244L9-00

$7.49

10

SCREW, WITH WASHER(33M)

90159-06092-00

$9.49

11

PLATE, THRUST 1

2JN-16154-00-00

$20.99

12

PLATE, FRICTION 2

5BE-16331-00-00

$24.99

13

WASHER, LOCK (34L)

90215-20231-00

$4.41

14

NUT (34L)

90170-20327-00

$18.99

15

ROD, PUSH 1

5BE-16356-00-00

$112.99

16

BEARING, THRUST (713)

93340-21505-00

Unavailable

17

WASHER, PLATE(1RE)

90201-125L6-00

Unavailable

18

CIRCLIP (4G0)

93440-10085-00

Unavailable

19

ROD, PUSH 2

5BE-16357-00-00

Unavailable

20

PUSH LEVER COMP.

5BE-16381-00-00

Unavailable

21

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

Unavailable

22

OIL SEAL (4G0)

93102-12224-00

Unavailable

23

PLATE, SEAT

4JT-16384-00-00

Unavailable

24

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

25

SPRING, TORSION

90508-142B5-00

Unavailable

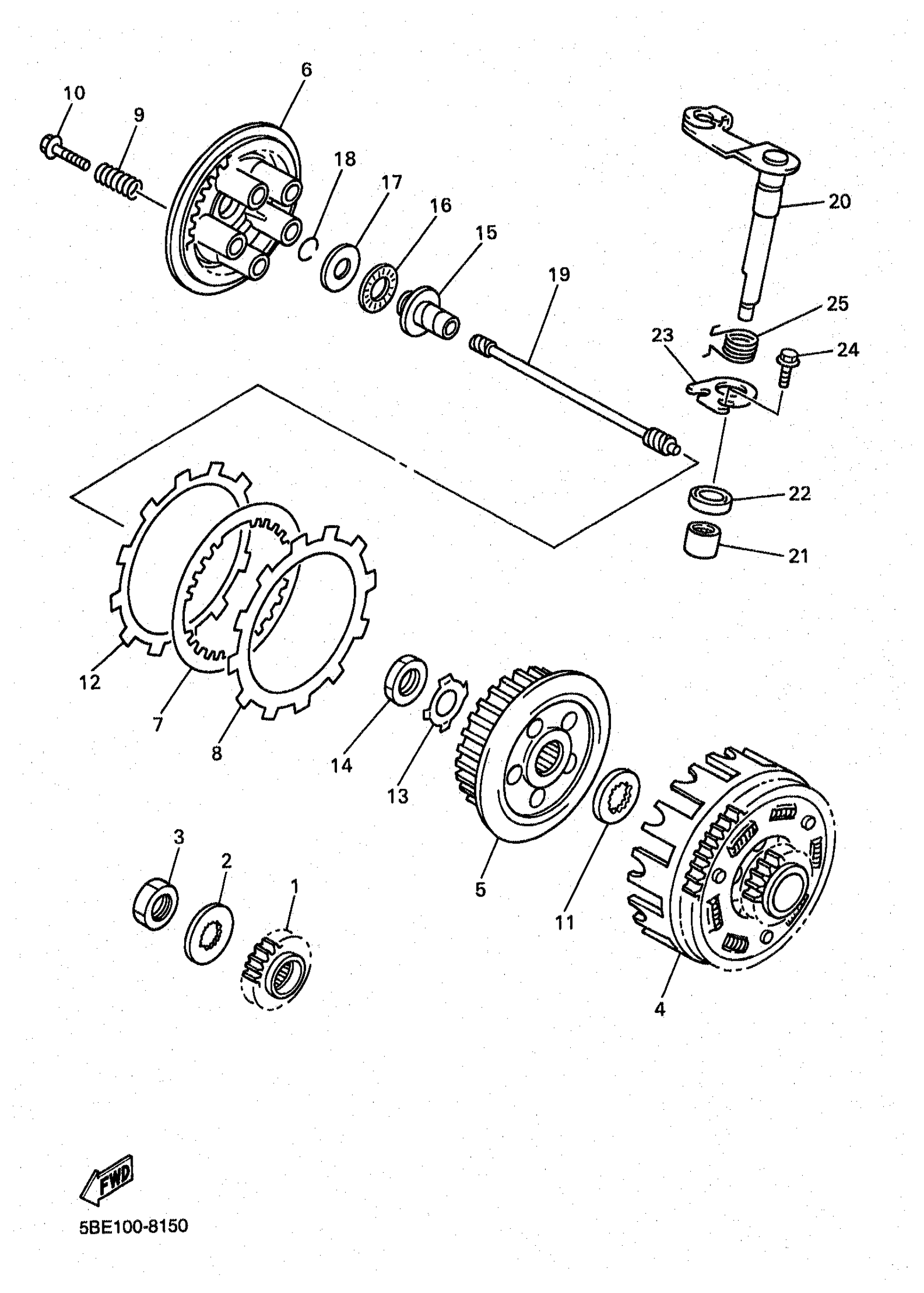

Yamaha YZ400FK (YZ400) 1998 CLUTCH Diagram

GEAR, PRIMARY DRIVE

WASHER, LOCK(3LD)

NUT (2K7)

PRIMARY DRIVEN GEAR COMP.

BOSS, CLUTCH

PLATE, PRESSURE 1

PLATE, CLUTCH 2

PLATE, FRICTION

SPRING, COMPRESSION

SCREW, WITH WASHER(33M)

PLATE, THRUST 1

PLATE, FRICTION 2

WASHER, LOCK (34L)

NUT (34L)

ROD, PUSH 1

BEARING, THRUST (713)

WASHER, PLATE(1RE)

CIRCLIP (4G0)

ROD, PUSH 2

PUSH LEVER COMP.

BRG,CYL-CAL ROLLER 6G TM

OIL SEAL (4G0)

PLATE, SEAT

BOLT, FLANGE(4MY)

SPRING, TORSION
