CARBURETOR

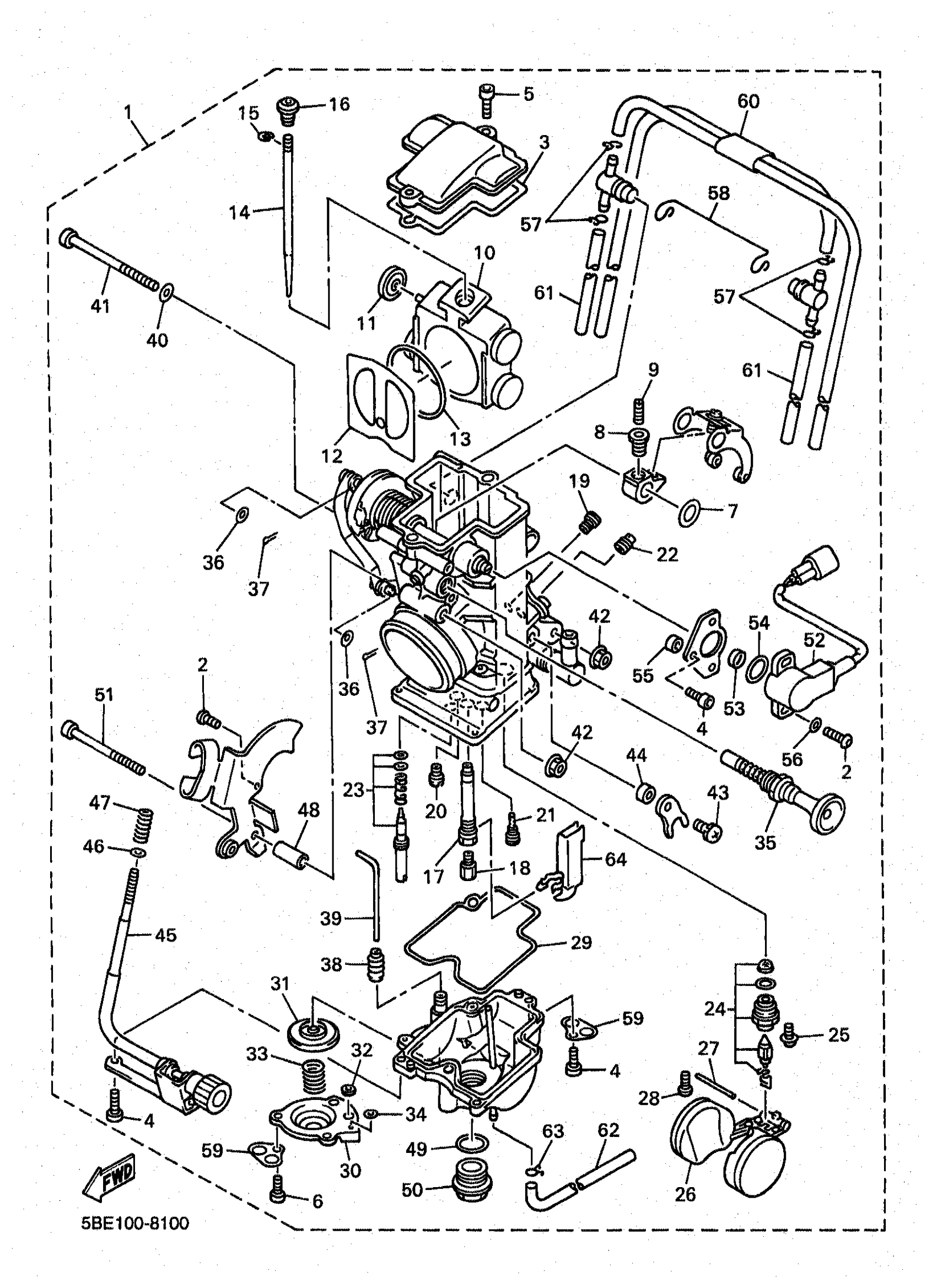

Yamaha YZ400FK (YZ400) 1998 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
5BE-14101-03-00
Unavailable
2
. BOLT
3TJ-14496-40-00
Unavailable
3
. GASKET
5BE-14959-00-00
Unavailable
8
. NUT, CROWN
3TJ-14393-40-00
Unavailable
9
. SCREW, ADJUST
3TJ-14522-40-00
Unavailable
10
. VALVE ASSEMBLY
5BE-14388-00-00
Unavailable
14
. NEEDLE (#CVP)
5BE-14916-CP-00
Unavailable
14
NEEDLE (#CVQ)
5BE-14916-C1-00
Unavailable
14
. NEEDLE (#CVR)
5BE-14916-CR-00
Unavailable
14
. NEEDLE (#CVS)
5BE-14916-CS-00
Unavailable
14
. NEEDLE (#CVT)
5BE-14916-CT-00
Unavailable
14
. NEEDLE (#CVU)
5BE-14916-CU-00
Unavailable
14
NEEDLE
5BE-14916-DP-00
Unavailable
14
. NEEDLE (#DVQ)
5BE-14916-D1-00
Unavailable
14
NEEDLE
5BE-14916-DR-00
Unavailable
14
. NEEDLE (#DVS)
5BE-14916-DS-00
Unavailable
14
. NEEDLE (#DVT)
5BE-14916-DT-00
Unavailable
14
. NEEDLE (#DVU)
5BE-14916-DU-00
Unavailable
14
. NEEDLE (#EVP)
5BE-14916-EP-00
Unavailable
14
NEEDLE (#CDQ)
5BE-14916-E1-00
Unavailable
14
. NEEDLE (#EVR)
5BE-14916-ER-00
Unavailable
14
. NEEDLE (#EVS)
5BE-14916-ES-00
Unavailable
14
. NEEDLE (#EVT)
5BE-14916-ET-00
Unavailable
14
. NEEDLE (#EVU)
5BE-14916-EU-00
Unavailable
15
CLIP
3TJ-14159-40-00
Unavailable
16
. SCREW, ADJUST
5BE-14521-00-00
Unavailable
17
. JET, NEEDLE
5BE-14947-00-00
Unavailable
18
JET, MAIN (#165)
4MX-14943-40-00
Unavailable
18
JET, MAIN (#170)
4MX-14943-41-00
Unavailable
18
JET, MAIN (#175)
4MX-14943-42-00
Unavailable
18
JET, MAIN (#180)
4MX-14943-43-00
Unavailable
18
JET, MAIN (#185)
4MX-14943-44-00
Unavailable
18
JET, MAIN (#190)
4MX-14943-45-00
Unavailable
18
JET, MAIN (#168)
4MX-14943-91-00
Unavailable
18
JET, MAIN (#172)
4MX-14943-92-00
Unavailable
18
JET, MAIN (#178)
4MX-14943-93-00
Unavailable
18
JET, MAIN (#182)
4MX-14943-94-00
Unavailable
18
JET, MAIN (#188)
4MX-14943-95-00
Unavailable
19
JET (#200)
3TJ-14943-47-00
Unavailable
20
. JET (#38)
3TJ-14948-02-00
Unavailable
20
. JET (#40)
3TJ-14948-03-00
Unavailable
20
. JET (#42)
3TJ-14948-04-00
Unavailable
20
JET (#45)
3TJ-14948-05-00
Unavailable
20
. JET (#48)
3TJ-14948-06-00
Unavailable
20
. JET (#50)
3TJ-14948-07-00
Unavailable
20
. JET (#52)
3TJ-14948-08-00
Unavailable
21
. JET (#55)
3TJ-1494F-09-00
Unavailable
21
. JET (#58)
3TJ-1494F-10-00
Unavailable
21
JET 1 (#60)
3TJ-1494F-11-00
Unavailable
21
JET
3TJ-1494F-12-00
Unavailable
21
JET
3TJ-1494F-13-00
Unavailable
21
JET
3TJ-1494F-14-00
Unavailable
21
JET
3TJ-1494F-15-00
Unavailable
21
JET
3TJ-1494F-16-00
Unavailable
21
JET
3TJ-1494F-17-00
Unavailable
22
. JET (#100)
7A9-14943-27-00
Unavailable
23
PILOT SCREW SET
3TJ-14105-40-00
Unavailable
24
NEEDLE VALVE SET
5BE-14107-00-00
Unavailable
25
. SCREW
5BE-14216-00-00
Unavailable
26
. FLOAT
5BE-14985-00-00
Unavailable
27
. PIN, FLOAT ARM
663-14548-00-00
Unavailable
28
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
29
GASKET, FLOAT CHAMBER
3TJ-14984-40-00
Unavailable
30
COVER 1
3TJ-14293-40-00
Unavailable
31
. DIAPHRAGM ASSEMBLY
5BE-14940-05-00
Unavailable
31
. DIAPHRAGM ASSEMBLY
5BE-14940-07-00
Unavailable
31
DIAPHRAGM ASSY
5BE-14940-08-00
Unavailable
31
. DIAPHRAGM ASSEMBLY
5BE-14940-09-00
Unavailable
32
GASKET
3TJ-14536-40-00
Unavailable
33
SPRING, DIAPHRAGM
3TJ-14933-40-00
Unavailable
34
. O-RING
6H4-14561-00-00
Unavailable
35
. PLUNGER, STARTER
5BE-14171-00-00
Unavailable
36
. WASHER, PLATE
90202-03052-00
Unavailable
37
. PIN, CLEVIS
3TJ-14365-40-00
Unavailable
38
CAP
5BE-14968-00-00
Unavailable
39
ROD, STARTER
5BE-14379-01-00
Unavailable
40
. WASHER
5BE-14557-00-00
Unavailable
41
. BOLT, HOLDING
5BE-14162-00-00
Unavailable
42
NUT, FLANGE
95704-05500-00
Unavailable
43
. SCREW, GUIDE
5BE-14326-00-00
Unavailable
44
. COLLAR
5BE-14534-00-00
Unavailable
45
. SCREW, THROTTLE
5BE-14922-00-00
Unavailable
46
WASHER, PLATE(3TJ)
90201-08410-00
Unavailable
47
. SPRING, THROTTLE STOP
4FN-14934-00-00
Unavailable
48
. COLLAR
5BE-14535-00-00
Unavailable
49
O-RING (6E9)
93210-15M52-00
Unavailable
50
. PLUG, SCREW
5BE-14115-00-00
Unavailable
51
BOLT, SOCKET
91317-05050-00
Unavailable
52
. THROTTLE SENSOR ASSEMBLY
5BE-85885-00-00
Unavailable
53
COLLAR
4TV-14534-00-00
Unavailable
54
O-RING
4TV-14562-00-00
Unavailable
55
. COLLAR
5BE-14265-00-00
Unavailable
56
. WASHER
5BE-14596-00-00
Unavailable
57
CLIP
3TJ-14137-40-00
Unavailable
58
. CLIP
5BE-14137-00-00
Unavailable
59
PLATE
5BE-14146-00-00
Unavailable
60
. PIPE
5BE-14197-00-00
Unavailable
61
. PIPE
5BE-14148-00-00
Unavailable
62
. HOSE
5BE-14987-00-00
Unavailable
63
CLIP
5BE-14937-00-00
Unavailable
64
. PLATE
5BE-14346-00-00
Unavailable
