1979 Yamaha YZ400F (YZ400F) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1979 Yamaha YZ400F (YZ400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

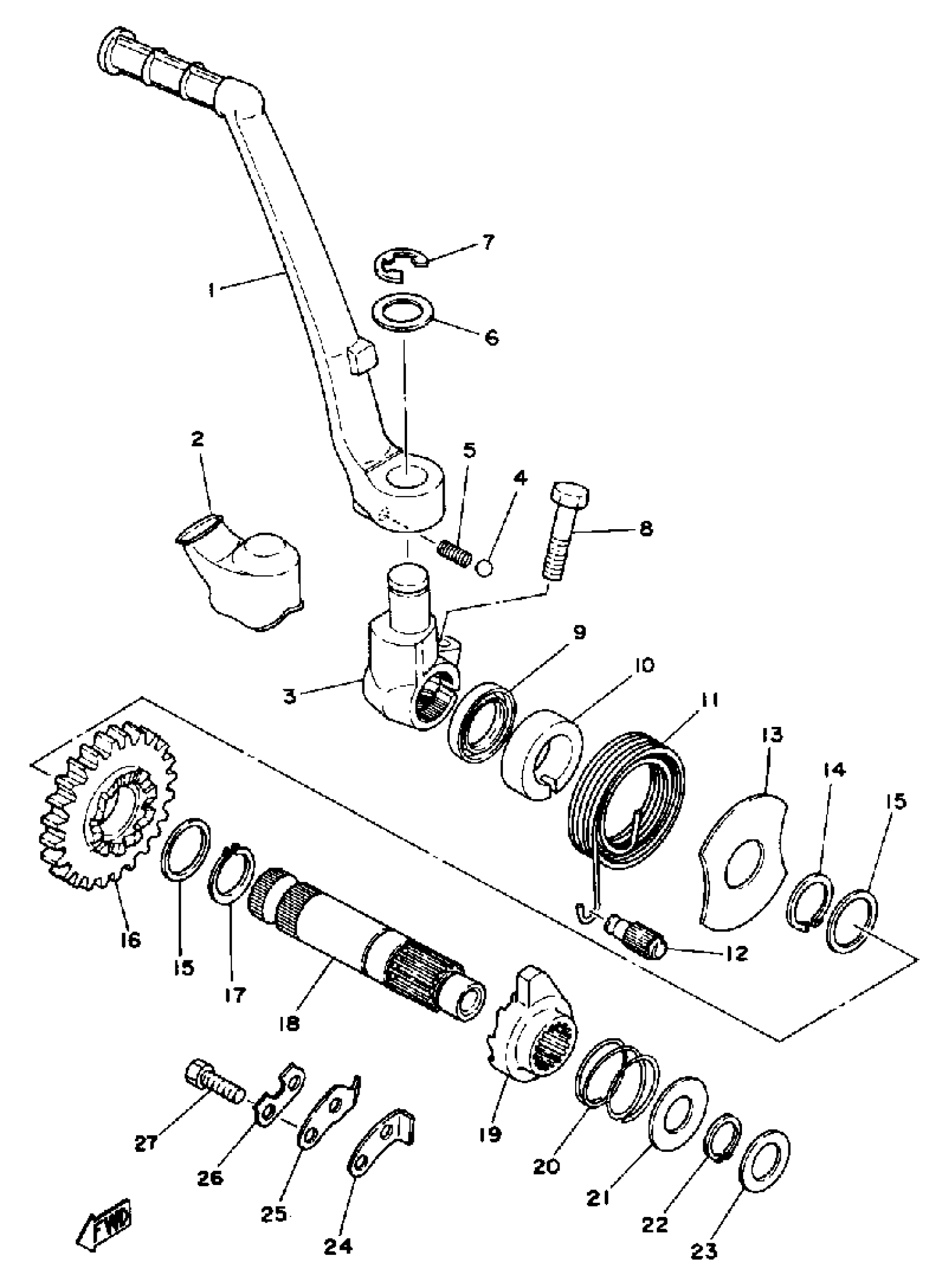

1979 Yamaha YZ400F (YZ400F) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANK, KICK (2K7-15611-00-33)

2K7-15611-00-00

1
Out of stock

2

COVER, KICK LEVER

2K7-15618-00-00

1
Out of stock

3

BOSS, KICK CRANK

583-15621-00-00

1
Out of stock

4

BALL (12R)

93507-32031-00

1
Out of stock

5

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

6

WASHER PLATE 278156130000

90201-15234-00

1

$6.78

In stock

7

CIRCLIP

99006-10600-00

1

$6.91

In stock

8

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

9

OIL SEAL,SD-TYPE

93102-20309-00

1

$8.77

In stock

10

GUIDE, SPRING

3Y6-15664-00-00

—
Out of stock

11

SPRING TORSION 291156650000

90508-32061-00

1
Out of stock

12

STOPPER, KICK SPRING

248-15668-00-00

1
Out of stock

13

COVER,SPRING

278-15676-00-00

1
Out of stock

14

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

15

WASHER, PLATE (2K7)

90201-20685-00

1

$5.69

In stock

16

GEAR, KICK

(2K7-15641-01-00)

1
Out of stock

17

CIRCLIP (525)

93410-20038-00

—

$2.62

In stock

18

AXLE, KICK

(2K7-15661-01-00)

1
Out of stock

19

WHEEL, RATCHET

2K7-15671-01-00

1
Out of stock

20

SPRING COMPRESSION168156750000

90501-16107-00

—
Out of stock

21

WASHER, PLAIN (1JL)

90201-155K6-00

—
Out of stock

22

CIRCLIP(1AR)

99009-15400-00

—

$5.10

In stock

23

SHIM

132-15644-00-00

1
Out of stock

24

STOPPER

2NX-15668-00-00

—
Out of stock

25

GUIDE, RATCHET WHEEL

2NX-15674-00-00

—

$8.71

In stock

26

WASHER, LOCK

214-15686-00-00

—

$6.38

In stock

27

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock
