1979 Yamaha YZ400F (YZ400F) Electrical Diagram

← All diagrams

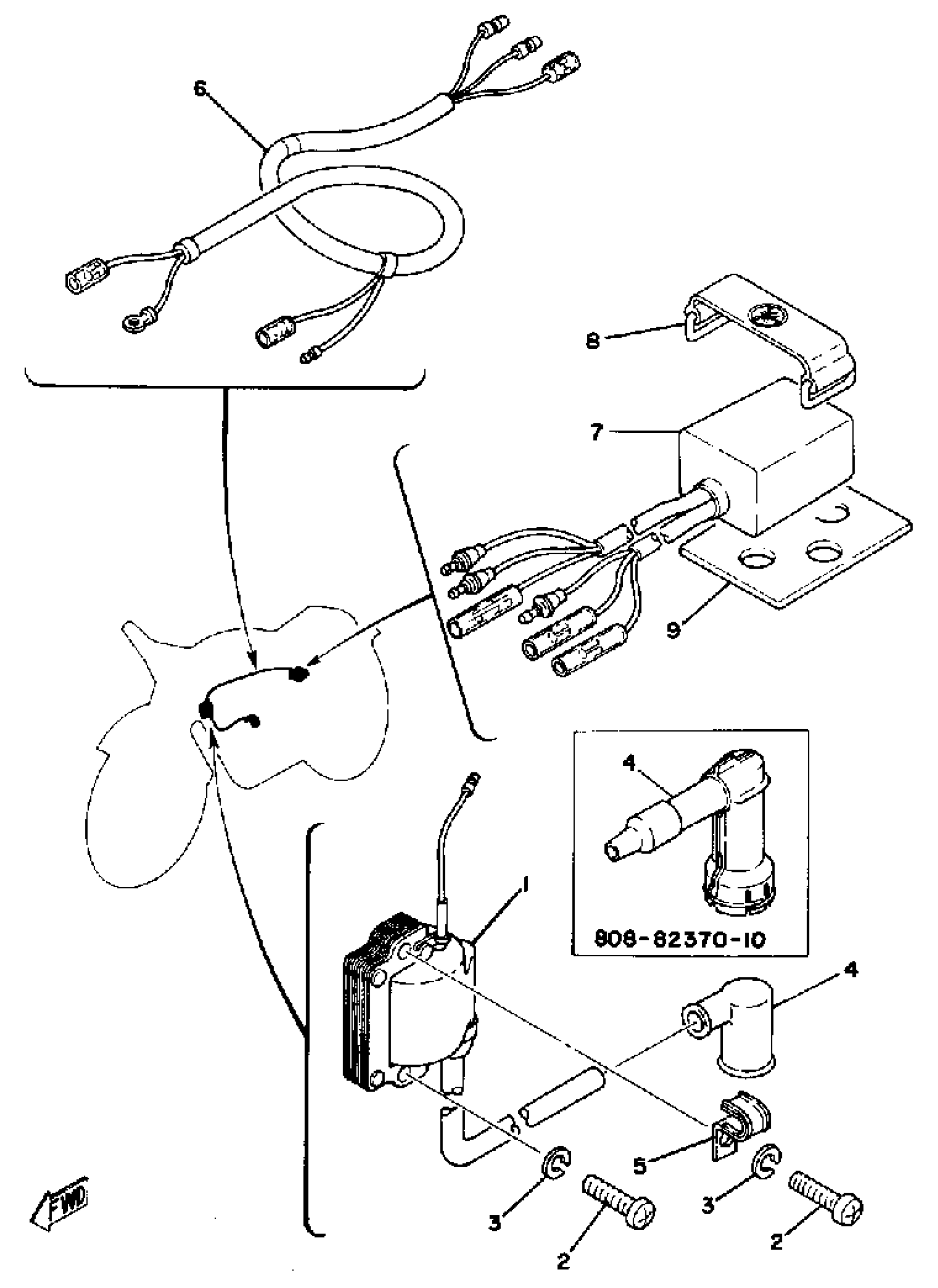

Find the part on the Electrical diagram for your 1979 Yamaha YZ400F (YZ400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha YZ400F (YZ400F) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSY

355-82310-40-00

—

$182.78

In stock

2

IGNITION COIL ASSY

355-82310-40-00

—

$182.78

In stock

2

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

PLUG CAP ASSEMBLY

294-82370-00-00

1
Out of stock

5

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock

6

WIRE HARNESS ASSEMBLY

(1W4-82590-00-00)

1
Out of stock

7

CDI UNIT ASSEMBLY

2X7-85540-20-00

1
Out of stock

8

BAND, TOOL

21V-21376-00-00

1

$6.38

In stock

9

DAMPER

3RB-85547-01-00

1
Out of stock
