FRONT FORK

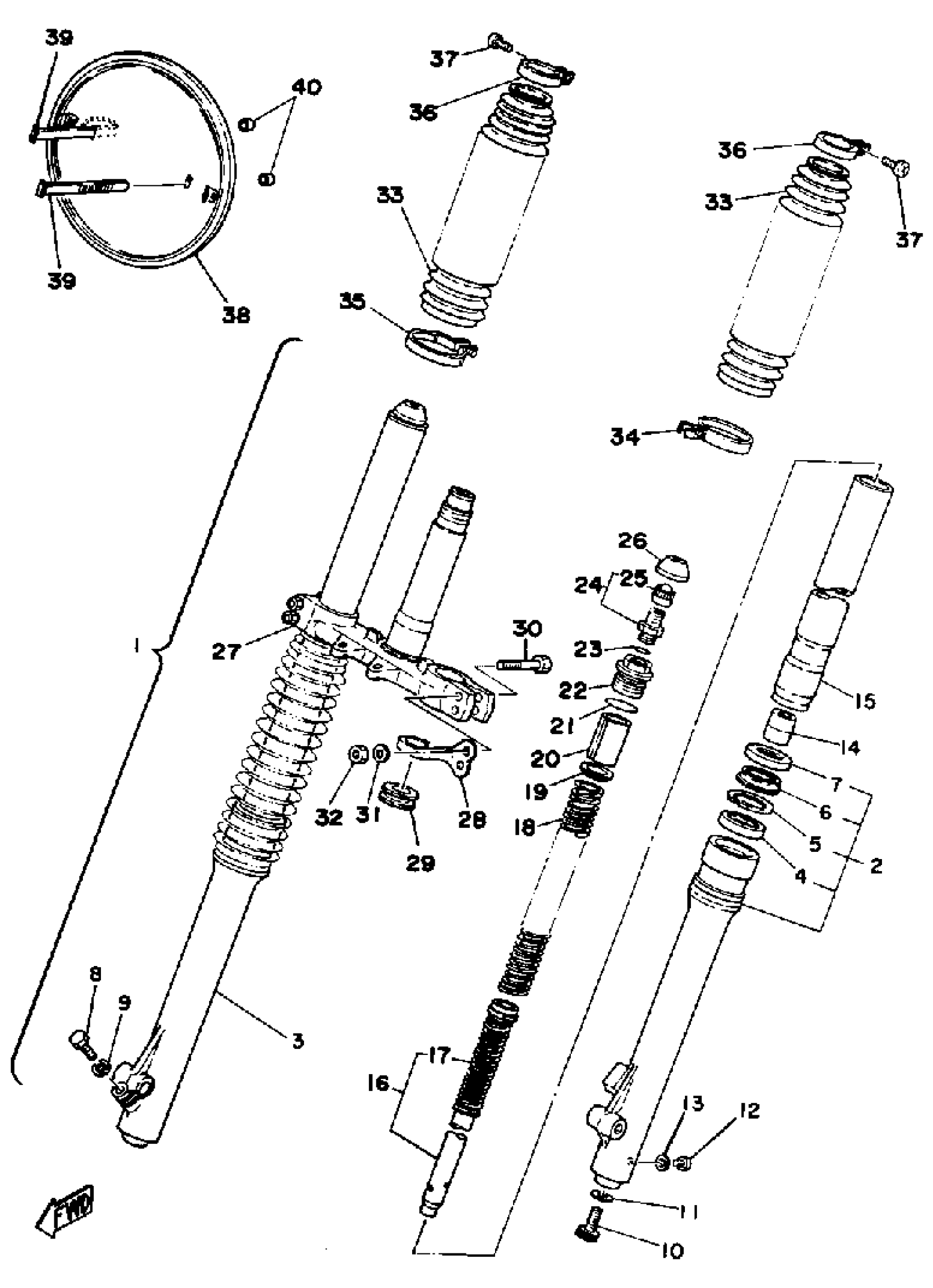

Yamaha YZ400F (YZ400F) 1979 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY
(2X4-23101-L0-00)
Unavailable
2
TUBE, OUTER 1
(2K8-23126-L0-00)
Unavailable
3
TUBE, OUTER 2
(2K8-23136-L0-00)
Unavailable
5
CLIP, OIL SEAL
(1W4-23156-L0-00)
Unavailable
6
.. SEAL, DUST
1W4-23144-L0-00
Unavailable
7
.. COVER, DUST SEAL
1W4-23148-L0-00
Unavailable
8
BOLT, AXLE HOLDER
(1W4-23128-L0-00)
Unavailable
10
BOLT, HEX SCKT HEAD
(2K8-23181-L0-00)
Unavailable
14
SPINDLE, TAPER
(3R4-23173-L0-00)
Unavailable
15
INNER TUBE 1
(2X4-23110-L0-00)
Unavailable
16
CYLINDER, FRTFRK
(2X4-23170-L0-00)
Unavailable
17
SPRING, SUB
(2X4-23152-L0-00)
Unavailable
18
SPRING, FRONT FORK
(2X4-23141-10-00)
Unavailable
18
SPRING, FRONT FORK
(2X4-23141-20-00)
Unavailable
18
SPRING, FRONT FORK
(2X4-23141-L0-00)
Unavailable
19
. SEAT, SPRING UPPER
1W4-23142-L0-00
Unavailable
20
SPACER
(1W4-23118-L0-00)
Unavailable
21
O-RING
1W4-23114-L0-00
Unavailable
22
. BOLT, CAP
1W4-23111-L1-00
Unavailable
23
. O-RING
509-23163-L0-00
Unavailable
24
. AIR VALVE
509-23190-L0-00
Unavailable
25
CAP, AIR VALVE
509-23184-L0-00
Unavailable
26
. COVER, VALVE
1W1-23185-L0-00
Unavailable
27
UNDER BRACKET
(2X4-23340-L0-33)
Unavailable
28
. HOLDER, CABLE
1W1-23317-01-00
Unavailable
29
GUIDE, WIRE
1W1-23389-00-00
Unavailable
30
BOLT (1E6)
90101-08340-00
Unavailable
31
.. WASHER, PLATE
92990-08600-00
Unavailable
32
NUT(6L2)
95333-08600-00
Unavailable
33
BOOT, FRONT FORK
2X4-23191-L0-00
Unavailable
34
HOLDER, CABLE 1
(1W4-23318-L1-00)
Unavailable
35
BAND
1W4-23489-L0-00
Unavailable
36
BAND, BOOT
341-92090-60-00
Unavailable
37
SCREW
509-23194-L0-00
Unavailable
38
. PLATE, NUMBER
3R0-23485-00-00
Unavailable
39
. BAND
2X4-23489-00-00
Unavailable
40
HOSE
(90446-09158-00)
Unavailable
