FRAME-SIDE COVER

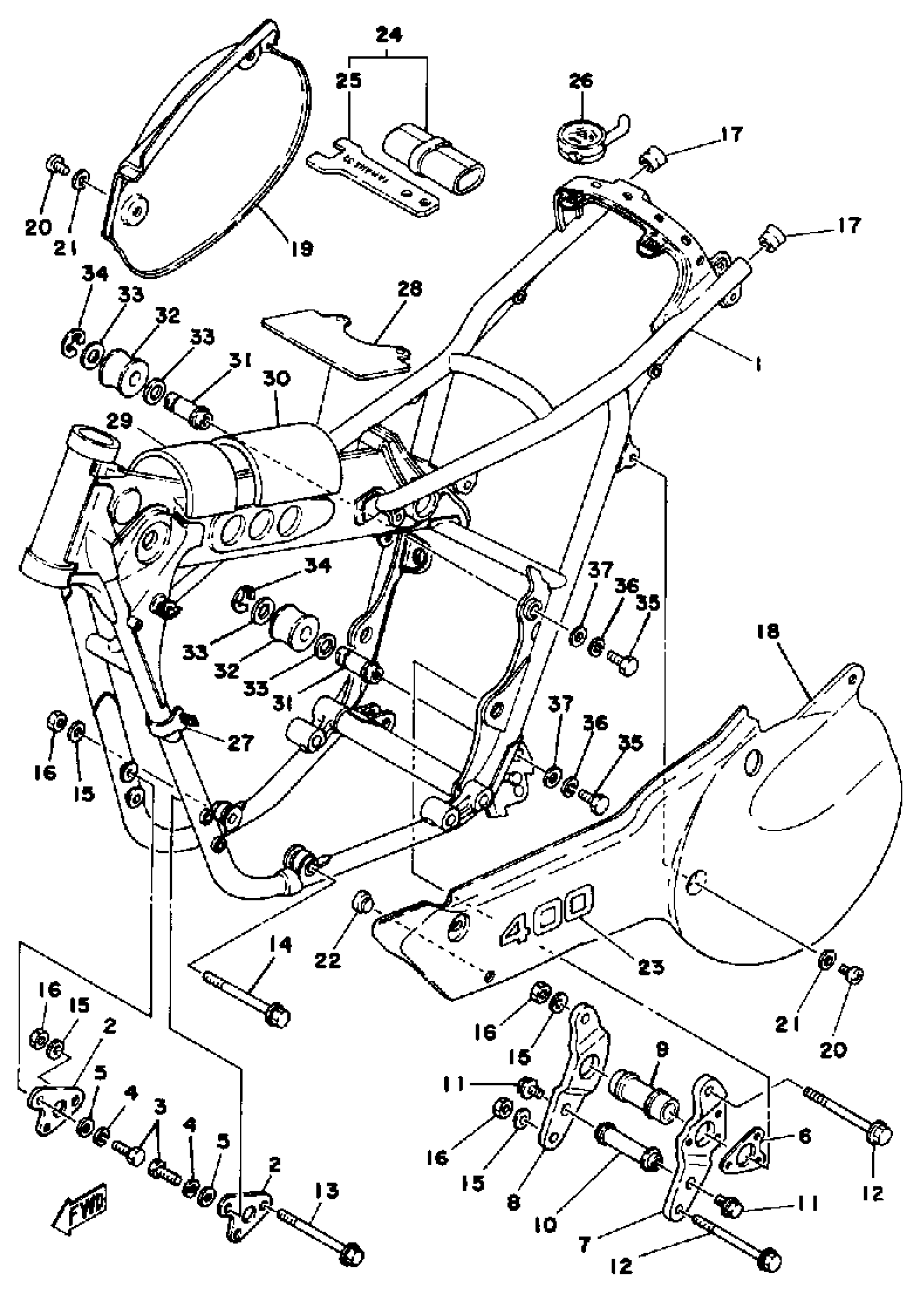

Yamaha YZ400F (YZ400F) 1979 FRAME-SIDE COVER Diagram
#
1
FRAME
(2X4-21110-01-33)
Unavailable
2
BRACKET, FRT UPR 1 (2K7-21415-00)
2X4-21415-00-00
Unavailable
5
.. WASHER, PLATE
92990-08600-00
Unavailable
6
PLATE, PATCH
(2X5-21455-00-00)
Unavailable
7
BRACKET, REAR LWR 1
(2X5-21427-00-00)
Unavailable
8
BRACKET, REAR LWR 2
2X4-21428-00-00
Unavailable
9
SPACER
2X5-21459-00-00
Unavailable
10
BOSS, ENGINE MOUNT
(2K7-21424-00-00)
Unavailable
14
BOLT, FLANGE
95817-08180-00
Unavailable
15
WASHER, PLAIN
92990-08200-00
Unavailable
16
NUT, SELF-LOCKING (3Y2)
90185-08089-00
Unavailable
17
PLUG (2K5)
90339-13005-00
Unavailable
18
COVER, SIDE 1
2X4-21711-00-98
Unavailable
19
COVER, SIDE 2
(2X4-21721-00-98)
Unavailable
20
SCREW, BIND(J45)
98980-06012-00
Unavailable
21
WASHER, PLATE (583 REAR FENDER
90201-06571-00
Unavailable
22
DAMPER, LOCATING 1
22W-24181-00-00
Unavailable
23
EMBLEM
(2X5-21737-00-00)
Unavailable
24
TOOL KIT
(1W4-28100-00-00)
Unavailable
25
SPANNER, SPECIAL
10V-28135-00-00
Unavailable
26
GAUGE, AIR
2X4-2811A-01-00
Unavailable
27
BAND, SWITCH CORD
437-83936-11-00
Unavailable
28
DAMPER, LOCATING 1
(1W1-24181-00-00)
Unavailable
29
DAMPER, LOCATING 3
1W1-24183-00-00
Unavailable
30
DAMPER, LOCATING 3
(2X4-24183-00-00)
Unavailable
31
SHAFT
2K6-2148A-02-00
Unavailable
32
TENSIONER
2K6-22178-00-00
Unavailable
33
WASHER, PLATE
90201-13013-00
Unavailable
34
CIRCLIP
99006-10600-00
Unavailable
35
BOLT, HEXAGON
97013-08020-00
Unavailable
37
WASHER, PLAIN
92990-08200-00
Unavailable
