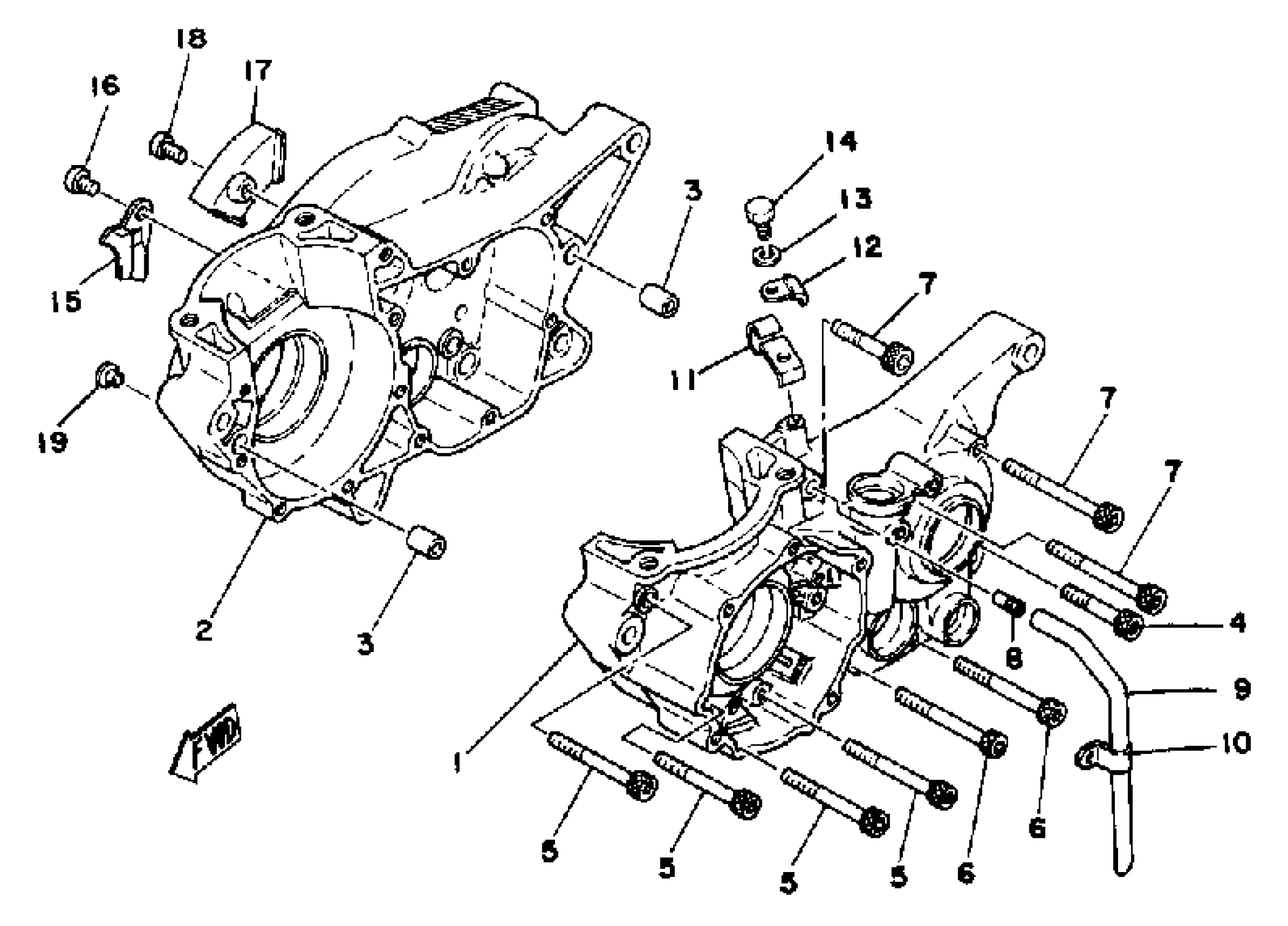

Yamaha YZ400F (YZ400F) 1979 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

2X5-15111-00-00

Unavailable

2

CRANKCASE 2

(2X5-15121-00-00)

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT,SOCKET

91317-06045-00

$4.99

5

BOLT, SOCKET

91317-06065-00

$3.76

6

BOLT, SOCKET

91317-06070-00

$4.99

7

BOLT, SOCKET

91317-06075-00

$5.60

8

. CONNECTOR, SUCTION PIPE

137-13115-01-00

Unavailable

9

HOSE (L340)

90445-08684-00

$4.29

10

CLAMP

(90462-08043-00)

Unavailable

11

HOLDER, CLCH CABLE

(2K7-15441-02-00)

Unavailable

12

CLAMP

90462-08042-00

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable

14

BOLT(8CP)

97017-06014-00

$8.49

15

HOLDER

(2X5-15118-00-00)

Unavailable

16

SCREW, PAN

98507-08010-00

Unavailable

17

PLATE

(2K7-15113-00-00)

Unavailable

18

SCREW PAN HEAD

98580-06010-00

Unavailable

19

PLUG (17J)

90338-07124-00

Unavailable
