CRANK-PISTON

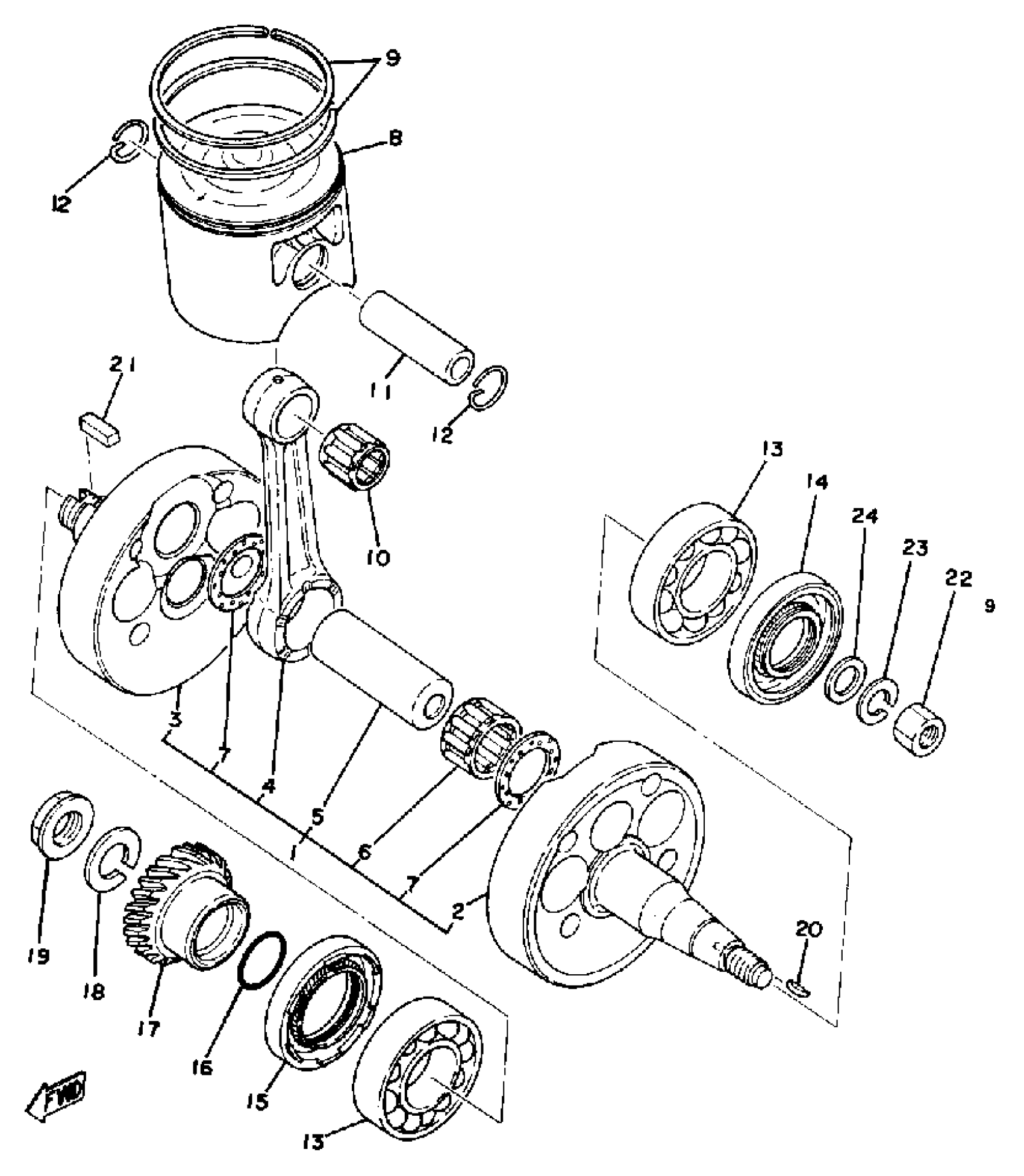

Yamaha YZ400F (YZ400F) 1979 CRANK-PISTON Diagram
#
1
CRANKSHAFT ASSEMBLY
(2X5-11400-00-00)
Unavailable
2
CRANK 1
(2X5-11412-00-00)
Unavailable
3
CRANK 2
(2X5-11422-00-00)
Unavailable
4
ROD, CONNECTING
(2X5-11651-10-00)
Unavailable
5
PIN, CRANK 1
(2X5-11681-00-00)
Unavailable
6
BEARING, CYLINDRICAL(4JW)
93310-425P2-00
Unavailable
8
PISTON KIT 1ST
2X5-11630-10-00
Unavailable
8
PISTON KIT 3RD
(2X5-11630-30-00)
Unavailable
8
PISTON KIT 4TH
(2X5-11630-40-00)
Unavailable
8
PISTON KIT 4TH
(2X5-11630-40-00)
Unavailable
8
PISTON STD
2X5-11631-00-96
Unavailable
8
PISTON 1 O/S 0.25
2X5-11635-00-00
Unavailable
8
PISTON 2 O/S 0.50
(2X5-11636-00-00)
Unavailable
8
PISTON 3 O/S 0.75
2X5-11637-00-00
Unavailable
8
PISTON 4 O/S 1.00
2X5-11638-00-00
Unavailable
9
PISTON RINGSET STD
2X5-11601-00-00
Unavailable
9
PISTON RINGSET 1ST
2X5-11601-10-00
Unavailable
9
PISTON RINGSET 2ND
2X5-11601-20-00
Unavailable
9
PISTON RINGSET 3RD
2X5-11601-30-00
Unavailable
9
PISTON RINGSET 4TH
2X5-11601-40-00
Unavailable
10
BEARING,CON-ROD SMALLEND(2X5)
93310-418E9-00
Unavailable
11
PIN, PISTON
275-11633-00-00
Unavailable
12
CIRCLIP (2F1)
93450-19052-00
Unavailable
13
BRG,R-B 6306 72MM 351G KY
93306-30615-00
Unavailable
14
OIL SEAL(38V)
93103-30150-00
Unavailable
15
OIL SEAL (434)
93103-40091-00
Unavailable
16
O-RING (498)
93210-29282-00
Unavailable
17
GEAR, PRI DRIVE
(2X5-16111-00-00)
Unavailable
18
WASHER(N15)
92907-18100-00
Unavailable
19
NUT (498)
90179-18172-00
Unavailable
20
KEY, WOODRUFF
90280-05001-00
Unavailable
21
KEY, STRAIGHT (498)
90282-07019-00
Unavailable
22
NUT, HEXAGON (525)
90170-12181-00
Unavailable
23
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
24
WASHER, PLATE (583)
90201-12593-00
Unavailable
