Description

Price

1

RACE, BALL 1

B6E-23411-00-00

$8.49

2

BALL

93501-04011-00

$8.49

3

RACE, BALL 2

B6E-23412-00-00

$13.49

4

RACE, BALL 2

BP2-23412-00-00

$7.49

5

BALL

93503-16003-00

$2.72

6

RACE, BALL 1

BP2-23411-00-00

$11.49

7

COVER, BALL RACE 2

(583-23416-00-00)

Unavailable

8

NUT

90179-25004-00

$24.99

9

CROWN, HANDLE

(583-23435-01-98)

Unavailable

10

BOLT, WASHER BASED HEAD (10V)

90105-14220-00

$4.72

11

BOLT, HEXAGON

97013-08055-00

$2.55

12

WASHER, PLATE 1562722600

90201-08083-00

$9.49

13

NUT, U

95617-08100-00

$9.49

14

HOLDER, CABLE 2

(434-23319-00-00)

Unavailable

15

HOLDER, HANDLE UPPER

401-23441-00-98

Unavailable

16

GUIDE, CABLE

(583-23389-00-00)

Unavailable

17

BOLT

97013-08035-00

Unavailable

18

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

19

SEAL, DUST

164-23462-00-00

Unavailable

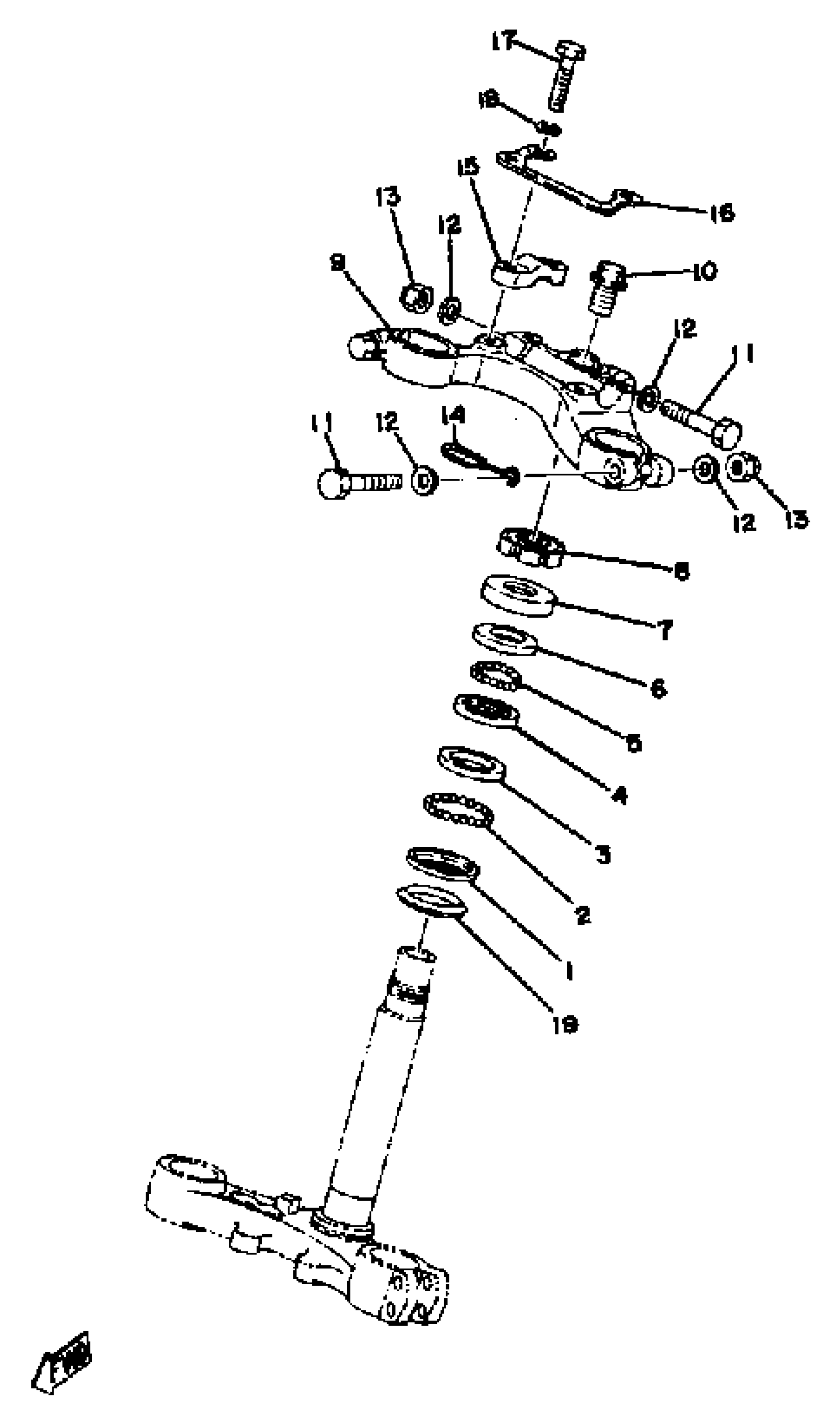

Yamaha YZ400C (YZ400C_D_E) 1976 STEERING YZ400C Diagram

RACE, BALL 1

BALL

RACE, BALL 2

RACE, BALL 2

BALL

RACE, BALL 1

COVER, BALL RACE 2

NUT

CROWN, HANDLE

BOLT, WASHER BASED HEAD (10V)

BOLT, HEXAGON

WASHER, PLATE 1562722600

NUT, U

HOLDER, CABLE 2

HOLDER, HANDLE UPPER

GUIDE, CABLE

BOLT

YBS67-8 WASHER, SPRING

SEAL, DUST
